Unused Atex Graphite Dense Phase Conveying & Blending System

3,000 KG Batch – 500 KG/H – Explosion Rated – Stainless Steel – PED Certified

Unused, engineered dense phase pneumatic conveying and blending system originally designed for ultra-fine graphite powder in a classified explosion safety zone.

This is not a general-purpose powder system. It was custom-engineered for:

Fine particle size (5–50 µm)
Low bulk density material (0.34–0.58 kg/dm³)
Ultra-low moisture (<0.1%)
Explosion-risk environment
Controlled dense-phase transfer
Pressure-assisted blending

Original new cost: $389,088 CAD

System has never been commissioned.

Designed specifically for:
• Graphite
• Carbon black
• Battery materials
• Fine minerals
• Conductive powders
• Explosion-sensitive dust
Ideal for operations requiring:
✔ Dense phase conveying
✔ Controlled low-velocity transport
✔ Dust cloud minimization
✔ ATEX / explosion safety compliance
✔ Homogeneous batch blending

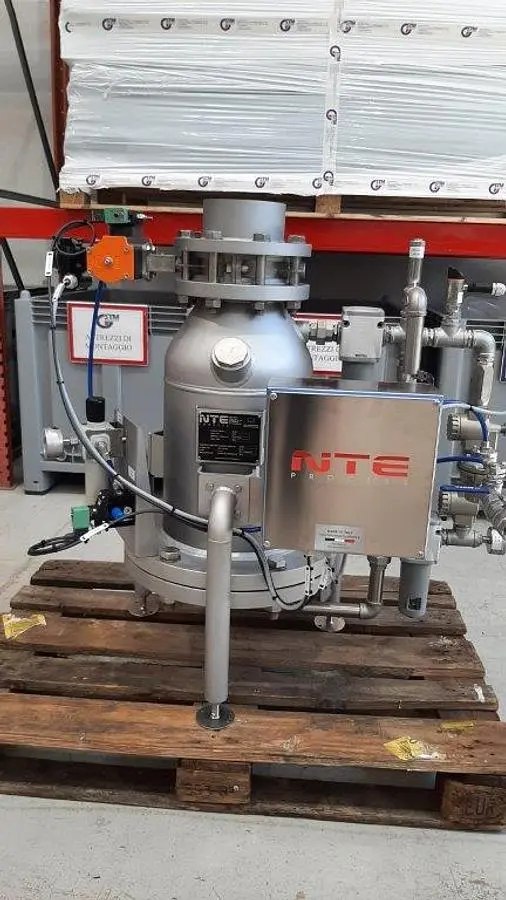

Stainless Steel AISI 304 construction
Useful capacity: 60 liters
PED 2014/68/EU certified pressure vessel
Working pressure: 1–2 bar
Designed for explosion-risk zones
2" conveying line
Capacity: 500 kg/hour
Convey distance: 15 meters
3 x 90° bends (estimated)

• DN150 inlet butterfly valve with pneumatic actuator
• Solenoid valve and limit switches
• Internal FluiDisk system
• Interchangeable outlet insert

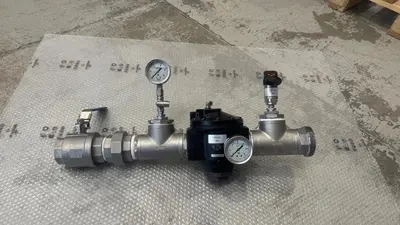

• Pressure regulator with gauge
• Volume control valve
• Air control solenoid valve
• Surge Air: 200 Nm³/h
• Average Air: 50 Nm³/h

Dense phase conveying significantly reduces:

✔ Particle degradation
✔ Dust generation
✔ Static ignition risk
✔ Pipeline wear

Water capacity: 16 m³
Cylinder diameter: 2200 mm
Cylinder height: 4000 mm
Overall height: 5400 mm
60° cone slope (engineered for anti-ratholing)
Discharge flange: 300 mm
DN200 inlet
DN600 filter connection
Hopper support brackets
Threaded connection for level switch

Designed for fluidized air pulse blending:

• Batch size: 3,000 kg
• Blend pressure: 1.7 barg
• Pulse ON time: 1 second
• Pulse OFF time: 1 second
• Estimated cycle time: 40 minutes per batch
• Surge Air: 600 Nm³/h
• Average Air: 400 Nm³/h

System is engineered for uniform blending of fine, low-density, cohesive powders without mechanical agitators.

✔ Explosion-risk design
✔ Antistatic pneumatic components
✔ Pulse-jet blending system
✔ Pressure-rated vessel construction
✔ Stainless steel fabrication
✔ Structural support frame
✔ Automated valve controls
✔ Industrial pneumatic solenoid system
