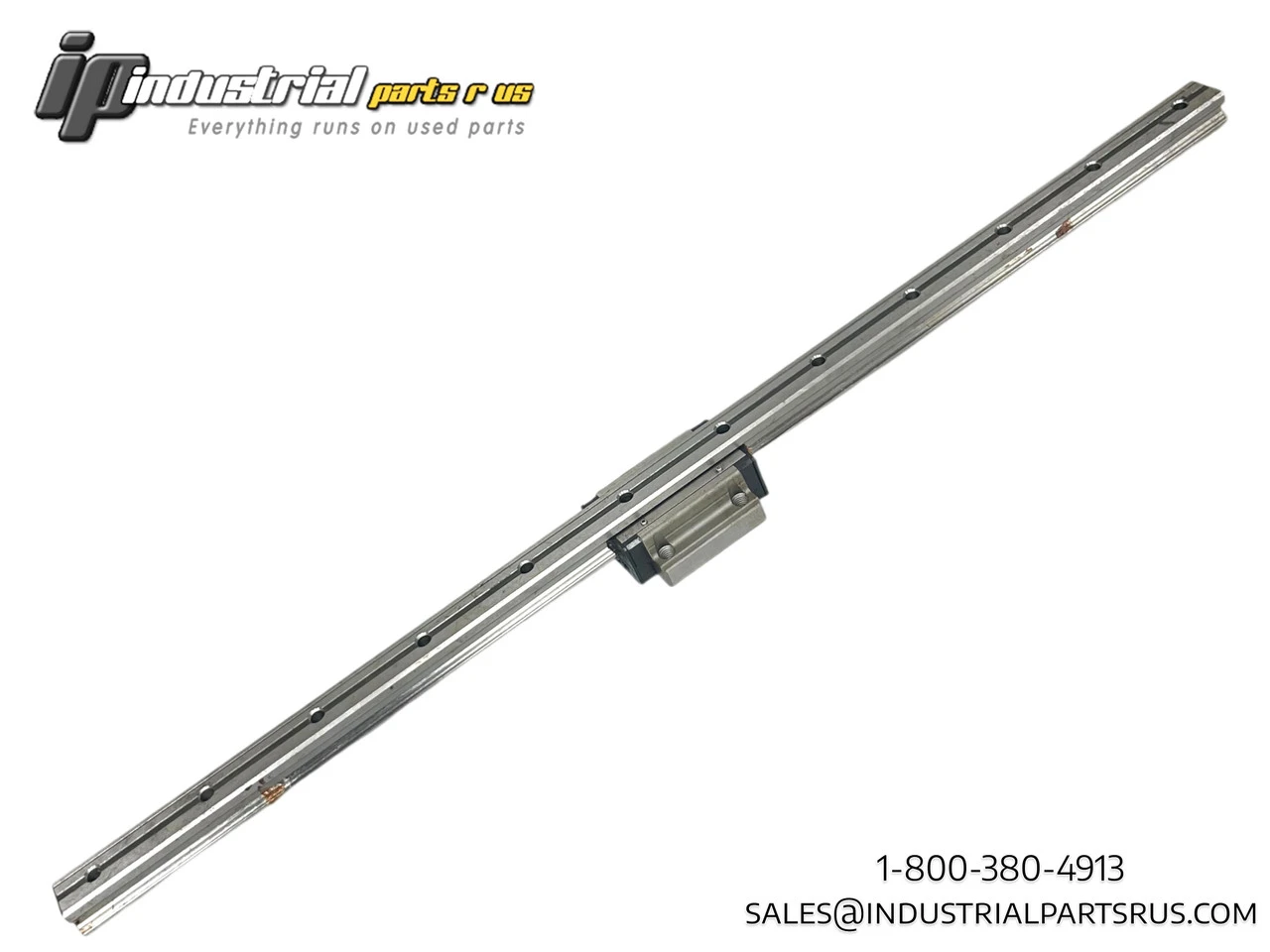

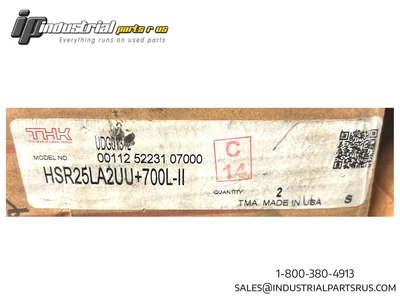

USED THK HSR25LA2UU+700L-II

This THK HSR25LA2UU+700L-II is a precision linear guide assembly from THK's HSR series. The HSR series incorporates linear rolling motion with balls arranged in four rows at a 45-degree contact angle, providing uniform load distribution in radial, reverse radial, and lateral directions. This configuration enables use in all orientations with high rigidity and smooth linear motion.
Specification
Value
Brand
THK
Model/Part Number
HSR25LA2UU+700L-II
Product Type
Linear Guide
Series
HSR25
Rail Width
25mm
Rail Length
700mm
Block Type
HSR25LA (Long Block)
Contact Angle
45 degrees
Ball Configuration
4-row full-ball type
Load Direction
4-way equal load (radial, reverse radial, lateral)
Mounting Orientation
All orientations
We warranty all items for 30 days from date of purchase.
