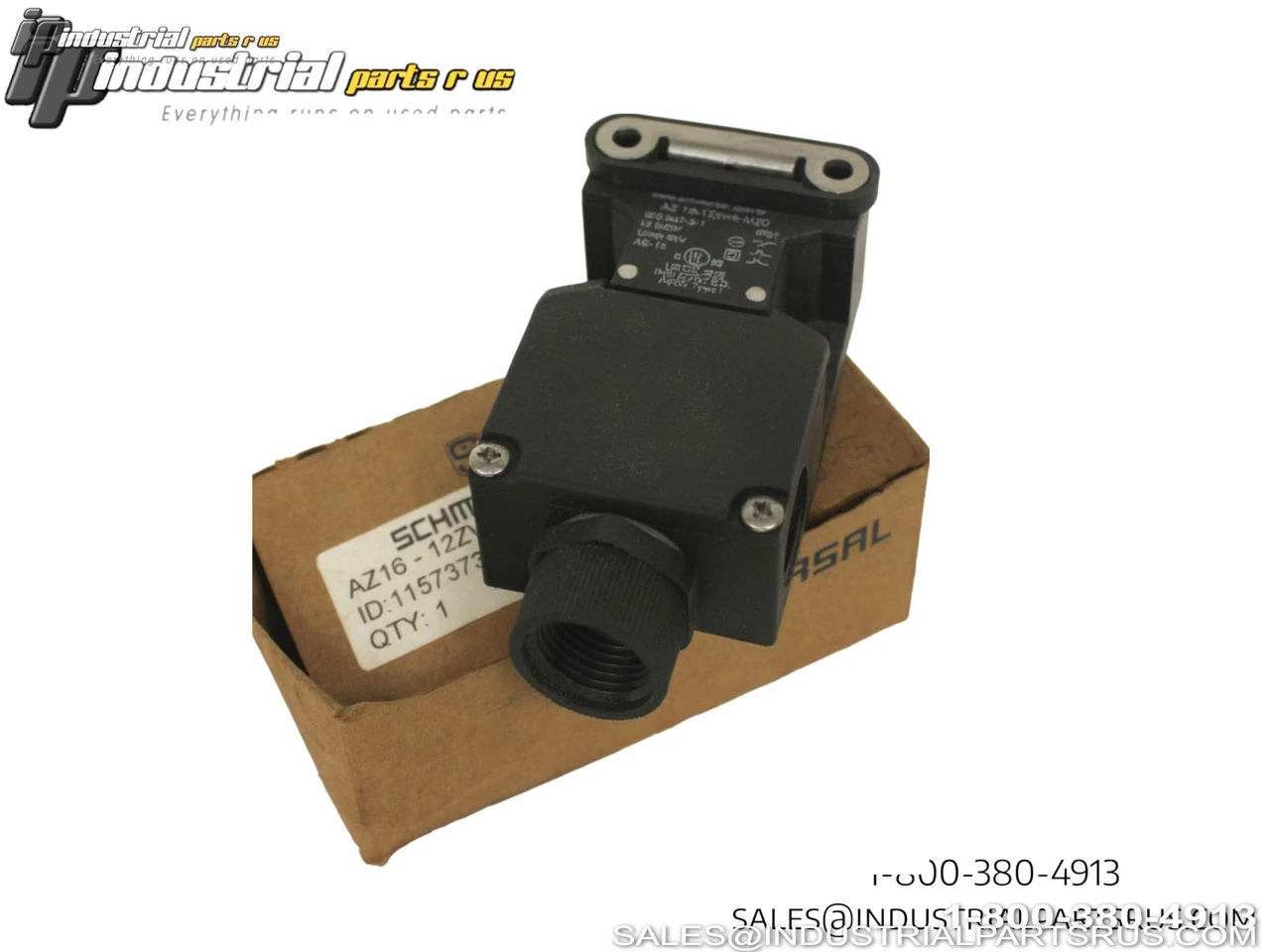

NEW SCHMERSAL AZ 16-12ZVRK-M20

This Schmersal AZ 16-12zvrk-M20 is a professional safety interlock switch designed for industrial machine safety applications. The safety switches with separate actuator are suitable for sliding, hinged and removable safety guards, which need to be closed in order to ensure the necessary operational safety. The safety switchgears are classified according to EN ISO 14119 as type 2 interlocking devices. Features include 3 cable entries M 20 x 1.5, large wiring compartment, thermoplastic enclosure, double-insulated design, and dimensions of 52 mm x 90 mm x 30 mm.
Specification
Value
Brand
Schmersal
Model/Part Number
AZ 16-12zvrk-M20
Product Type
Safety Interlock Switch
Actuator Type
Separate Actuator Required
Contact Configuration
1NO + 2NC
Contact Current AC Max
4A
Contact Voltage AC Max
230V
Contact Current DC Max
4A
Contact Voltage DC Max
24V
Operating Force Max
30N
Latching Force
30N
Cable Entry
3 x M20 x 1.5
Enclosure Rating
IP67
Enclosure Material
Thermoplastic
Insulation
Double-insulated
Dimensions
52mm x 90mm x 30mm
Safety Category
Cat. 3 / PL d (with 2-channel usage)
Standard Compliance
EN ISO 14119 Type 2
RoHS Compliant
Yes
Weight
120.8g
We warranty all items for 30 days from date of purchase.

SKU: AI0259
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Germany
GTIN: 679523686161
Mounting Style: Panel Mount
Current Rating: 4A
Full Load Amps: 4A
Application: Industrial Safety Guards
Manufacturer: Schmersal
Enclosure Type: IP67
Part Number: AZ 16-12ZVRK-M20
Shelf: J-72
Model: AZ 16-12ZVRK-M20
MPN: AZ 16-12ZVRK-M20
Type: Safety Interlock
