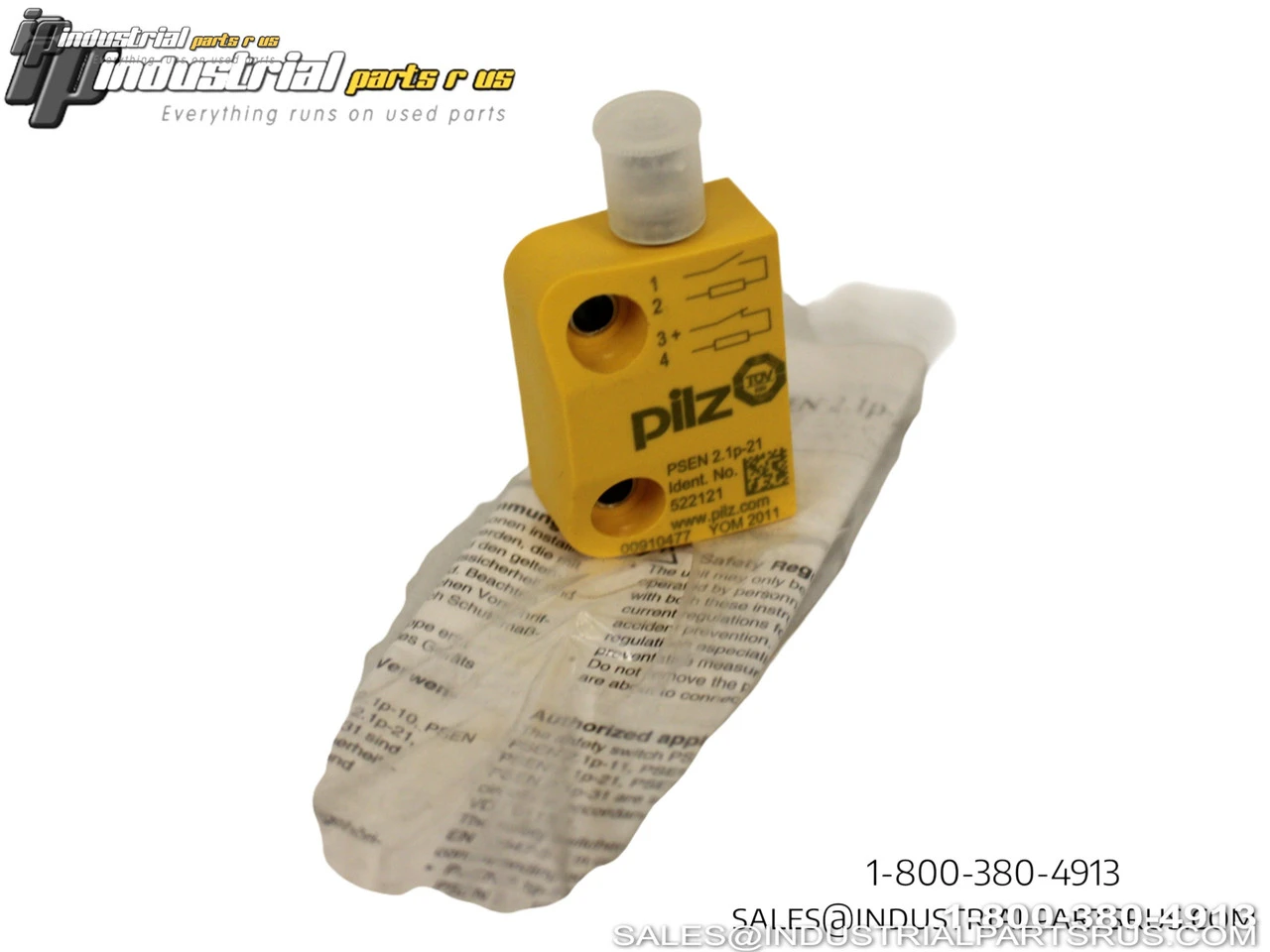

NEW PILZ PSEN 2.1P-21
Overview
Description
The Pilz PSEN 2.1p-21 is a non-contact magnetic safety switch designed for monitoring the position of movable guards in accordance with EN 60947-5-3. This square-design safety switch features reed contact technology and includes an LED status indicator for visual feedback of switch status.
Specification
Value
Brand
Pilz
Model/Part Number
PSEN 2.1p-21
Product Type
Magnetic Safety Switch
Series
PSENmag
Sensor Principle
Magnetic
Contact Configuration
1NC/1NO
Number of N/O Contacts
1
Number of N/C Contacts
1
Switching Voltage
24 VDC
Max Current Safe Contacts
0.01 A
Connection Type
M8 4-Pin Male
Operating Distance
8 mm
Release Distance
26 mm
Design
Square
Protection Rating
IP67
Status Indicator
LED
Width
26.0 mm
Height
36.0 mm
Depth
13.0 mm
Ambient Temperature
-25°C to +70°C
Approvals
CE, cULus Listed, TÜV
Safety Rating
PLe, SIL 3, Category 4
Actuator Model
PSEN 2.1-20
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI0257
UPC: 679523686208
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Switzerland
GTIN: 679523686208
Mounting Style: Surface Mount
Current Rating: 0.01 A
Sensor Type: Magnetic
Operating Distance: 8mm
Application: Safety Interlock Monitoring
Manufacturer: Pilz
Enclosure Type: IP67
Part Number: PSEN 2.1P-21
Shelf: N-9
Model: PSEN 2.1P-21
Coil Voltage: 24 VDC
MPN: PSEN 2.1P-21
Type: Safety Interlock
