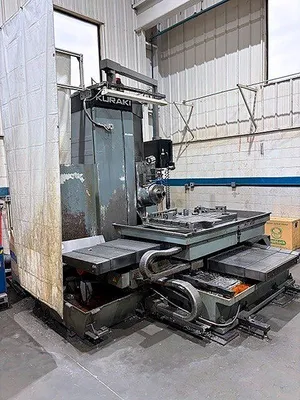

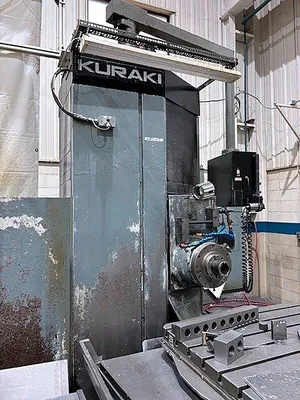

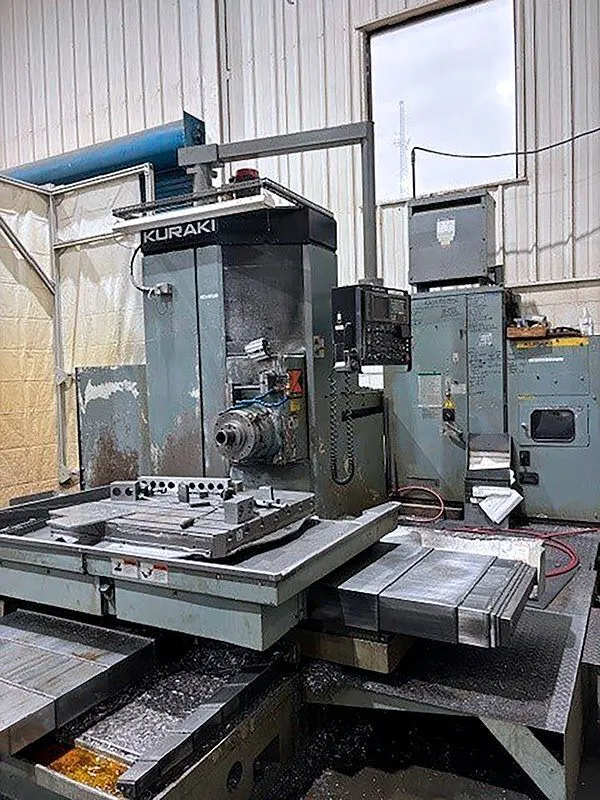

USED KURAKI KBT-10DX

For sale: Used 1996 Kuraki KBT-10DX Horizontal Machining Center by KURAKI. Features include a 3.94" spindle diameter, 5-2000 RPM speeds, and a Fanuc Series 15-M control. Equipped with flood coolant, chip conveyor, and more. Robust 25,960 lbs build.

Spindle Diameter: 3.94"

Spindle Taper: ISO No. 50

Spindle Speeds (3 Step Gear Change): 5-2000 RPM

Spindle Head Vertical Travel (Y): 39.37"

Table Longitudinal Travel (X): 59.06"

Table Cross Travel (Z): 31.5"

Spindle Center to Table Surface: 0-39.37"

Spindle Axial Travel (W): 19.69"

Table Size: 37.40" x 43.31"

Automatic Table Indexing: .001 DEGREE

Feed Rate (X, Y, Z & W): 0.04-157.48 IPM

Rapid Traverse - X, Y & Z: 472.44 IPM

W: 236.22 IPM

Rapid Table Rotary Speed: 1.2 RPM

Spindle Motor: AC 15 HP

Feed for X, Y, Z & W Axis: AC 4.0 HP

Table Rotation: AC 2.4 HP

Hydraulic Pump Motor: AC 2.0 HP

Spindle Lubrication: AC 0.13 HP

Slide Ways Lubrication: AC 0.08 HP

Spiral Chip Conveyor: AC 0.53 HP

Electric Power Source

Voltage: AC200/220V +/- 10%

50/60 HZ +/-1%

Capacity: 40 KVA

Machine Height: 129.92"

Floor Space: 183.07" x 151.57"

Machine Weight: 25,960 lbs

Machine Dimensions: (L x W x H) 15ft x 9ft x 11ft

Flood Coolant,

Coil Type Chip Conveyor,

Spindle Oil Cooler,

Chip Cover For Slide Way ,

Spindle Speed Meter & Load Meter,

Programmable Index at .001 Degree with Location Pin at 90 Degrees,

Manual Pulse Generator ,

Power Shutoff Device ,

Manual Spindle Setting Device ,

Monolever Type Jog Feed ,

Self Diagnosis Function,

Door Interlock on EC Box,

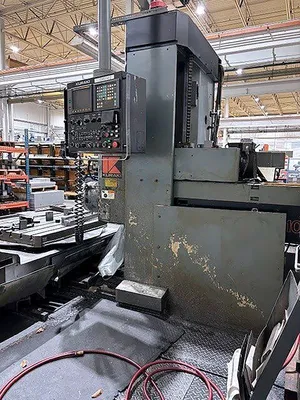

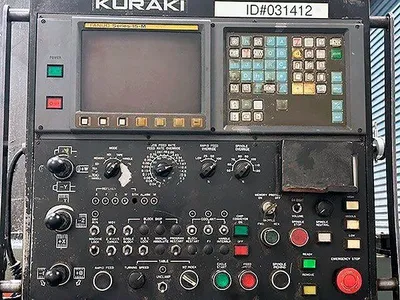

Control: Fanuc Series 15-M
