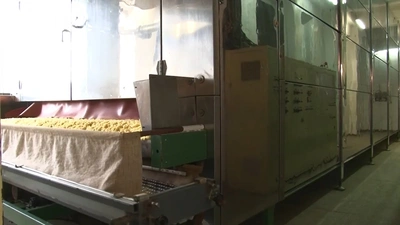

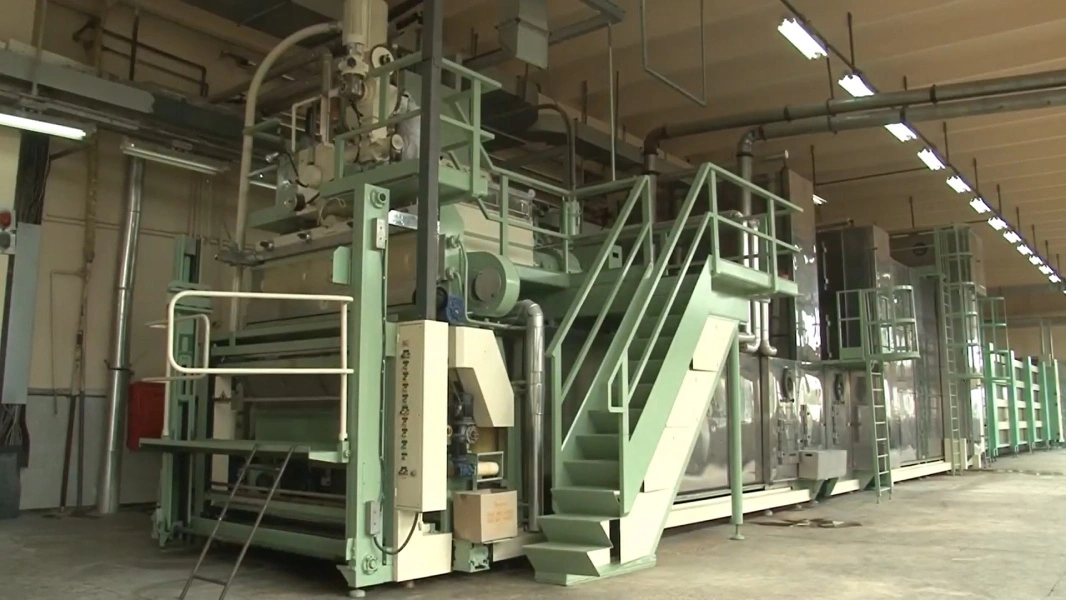

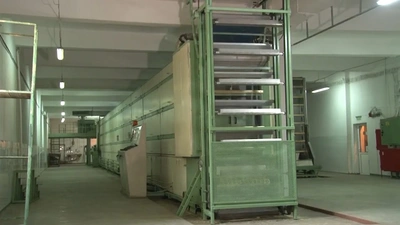

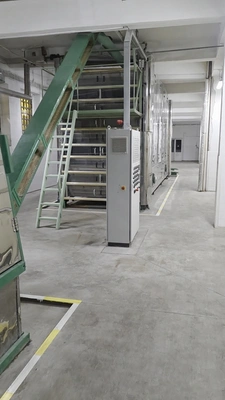

PAVAN, Italy Pasta Production Plant, in full working order, still in use, visible under power in dry running, videos, POA
Overview
Description
Capacity, total 2600 kg/hr
1. SPAGHETTI LINE
Manufacturer PAVAN, Italy
Year of manufacture 1989
Control CNC
Specification
Capacity 1250 kg/h
Water consumption 400 l/h
Overall dimensions L×W×H 48×7×7 m
Line is consisting of:
Small mixer
Large mixer
Screw
Pre-dryer
Dryer
ROTOTHERM®, completely overhauled and retrofitted
“Night” store
Foil packing machine
Carton box packing machine
2. NEST PASTA LINE
Manufacturer PAVAN, Italy
Year of manufacture 1962
Control PLC
Specification
Capacity 300 kg
Water consumption 100 l/h
Overall dimensions L×W×H 42×5×5 m
Line is consisting of:
TRABATO press
Pre-dryer
Dryer
Foil packing machine
3. MACARONI LINE
Manufacturer PAVAN, Italy
Year of manufacture 1970
Control Conventional + PLC
Specification
Capacity 850 kg/h
Water consumption 280 l/h
Overall dimensions L×W×H 30×5×5 m
Line is consisting of:
TRABATO press
Elevators
Pre-dryer
Dryer
Collection hopper
Foil packing machine
4. COUSCOUS LINE
Manufacturer PAVAN, Italy
Year of manufacture 1960
Control Conventional + PLC
Specification
Capacity 200 kg/h
Water consumption 70 l/h
Overall dimensions L×W×H 40×5×5 m
Line is consisting of:
TRABATO press
Elevators
Pre-dryer
Dryer
Collection hopper
Foil packing machine
Control: CNC
All the lines are in full working order, still in use, well maintained and regularly serviced. All the lines are visible under power in dry running.
More pictures and videos available on request.
Location : Bulgaria
