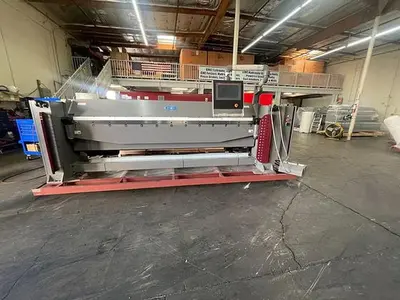

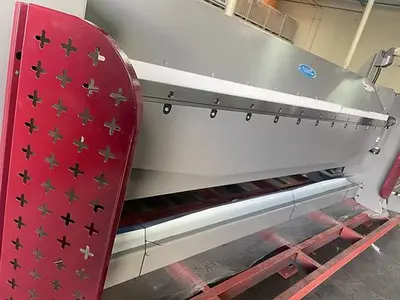

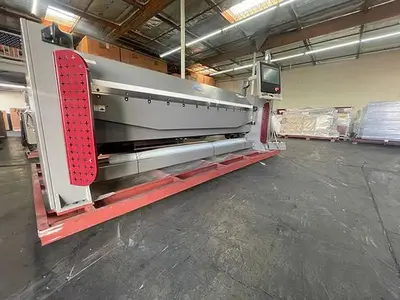

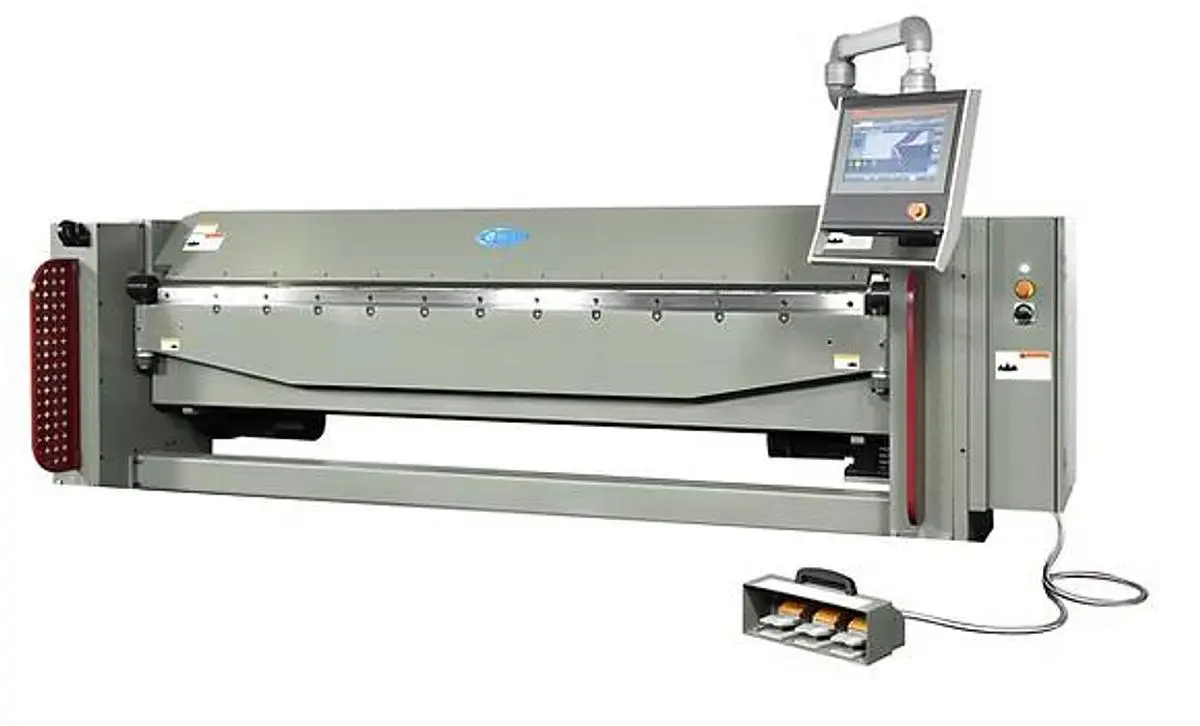

Product: Roofing Machine Tools
Capacity: 14GA (mild steel), 18GA (SS), 10GA x18" (soft aluminum)
Hemming Capacity: 24 GA (mild steel), 28 GA (SS)
Bending Length: 121"
Bend Angle: 0 - 135 degrees (programmable)
Large Beam Opening: 4 7/8"
Min Reverse Bend: 1/2"
Table Back Gauge Distance: 1/2" (min), 48 3/8" (max)
Back Gauge Repeatability: 0.0039"
Back Gauge Table Height: 35 3/4"
Motor (Bending Leaf): 4HP, 220V, 3 Phase, 35A
Clamping Motor: 1 1/2 HP, 3 Phase, 220V
Servo Motor: 2 HP, 220V, 3 Phase
Dimensions: 168" x 79" x 67"
Machine Weight: 9,850 lbs.
Standard Features:
ISO 9001 certified
Designed in US and Taiwan quality Machine
Meet OSHA and CE safety standard
ESA CNC control, made in Italy

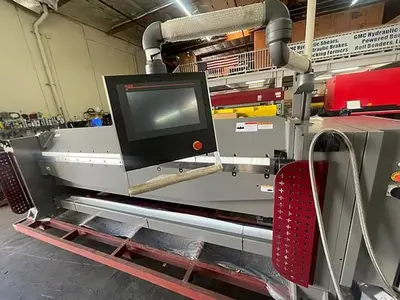

16” large Digital glass touch screen
Max. 99 bends per program
Upto 2000 Programs Storage
Profiles library with graphics
Programmable Radius Bend
Programmable Angle/ Angle Correct

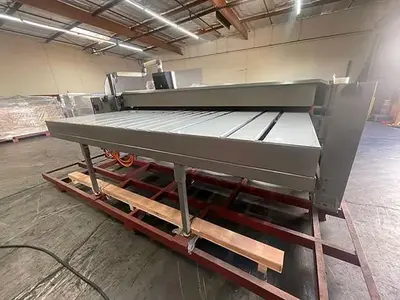

48” CNC back gauge with table and fingers
Hardened nose bar and table, up to 48HRC
Comes with one 1” Insert Bar and one ½” Insert Bar
Yaskawa Servo motors and Drives
Schneider electrical components
All steel construction for maximum rigidity
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
Power supply is 220V, 3 phase or 208V, 3 phase
One year industrial warranty for parts
One day on-site training is available, please call for pricing
Optional Digital Phase Converter-call for pricing
*This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
