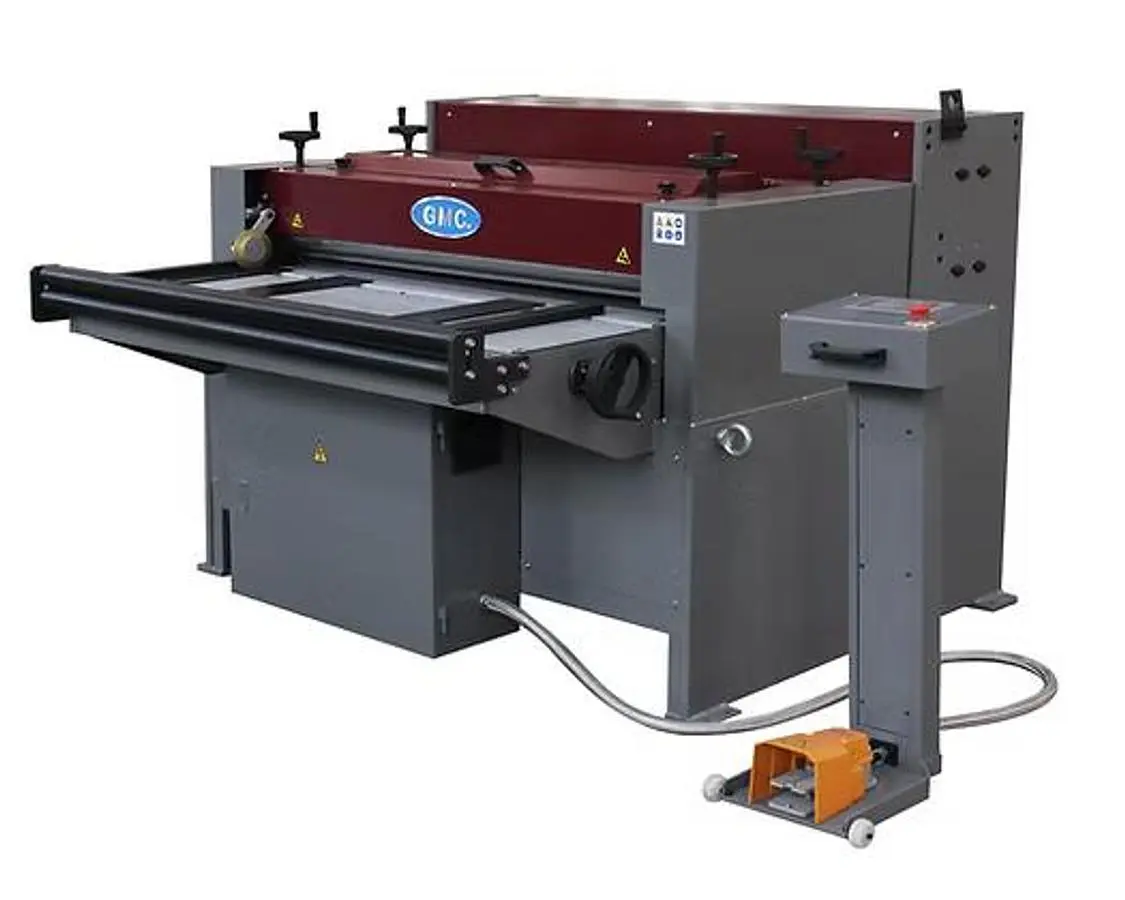

NEW GMC MACHINE TOOLS PS-4816GT

Product: HVAC MACHINE TOOLS
SLITTING/SHEARING CAPACITY: 48" X 16GA (MILD STEEL), 48" X 20GA (SS), 48" X 12GA (SOFT ALUMINUM)
MIN. THICKNESS: 30 GA
MAX SLITTING LENGTH: 20', NC PROGRAMMABLE
MIN SLITTING WIDTH: 3"
SHEARING BLADE LENGTH: 50"
SHEARING BLADE RAKE ANGLE: 2 DEGREES
INFEED / OUTFEET TABLE HEIGHT: 32"
SLITTING BLADEA: 6 PAIRS
SLITTING FEED SPEED: 57 FPM
SHEARING STROKE: 35
CUTS / STRIPS CAPACITY 1: 16 GA MILD STEEL - 1 CUT / 2 STRIPS
CUTS / STRIPS CAPACITY 2: 18 GA MILD STEEL - 2 CUTS / 3 STRIPS
CUTS / STRIPS CAPACITY 3: 20 GA MILD STEEL - 3 CUTS / 4 STRIPS
CUTS / STRIPS CAPACITY 4: 22GA - 24GA MILD STEEL - 4 CUTS /5 STRIPS
CUTS / STRIPS CAPACITY 5: 26GA - 30GA MILD STEEL - 6 CUTS / 7 STRIPS
SLITTING MOTOR: 3 HP, 220V, 1 PHASE
SHEAR MOTOR: 3 HP, 220V, 1 PHASE, 25A
MAX COIL WEIGHT, 2T: 4,500 LBS
MACHINE DIMENSIONS: 68" X 63" X 48"
MACHINE WEIGHT: 2,850 LBS.

Standard Features:
ISO 9001 certified
American design and Taiwan quality machine
Slit and cut to length in one unit
NC programmable cutting length, 100 job memory feature
Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut.
Auto cycle mode-shearing will auto cycle the programmed cut lengths.
Easy removal of slitting blades for cut to length operations without slitting.
feed the sheet metal from the manual decoiler to cut to length without slitting blades
5” Omron touch screen
3-1/8” diameter shafts mounted in precision ball sealed bearings
Slitting blades are dual edged
Safety type foot pedal control
One year warranty for parts
Standard Equipment:
Comes with 6 sets of slitting blades to slit max 7 trips, change it to 7 strips
full length finger guard
Removable safety foot pedal control
One set of upper & lower shearing blades
