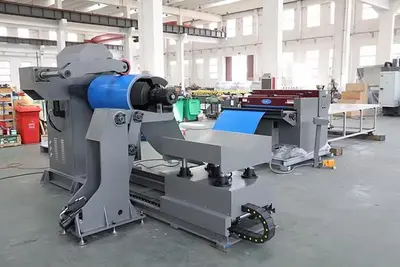

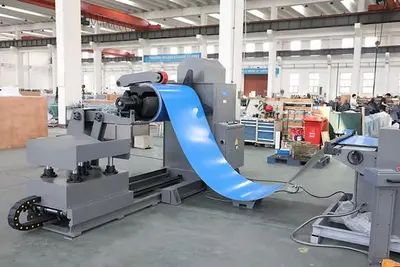

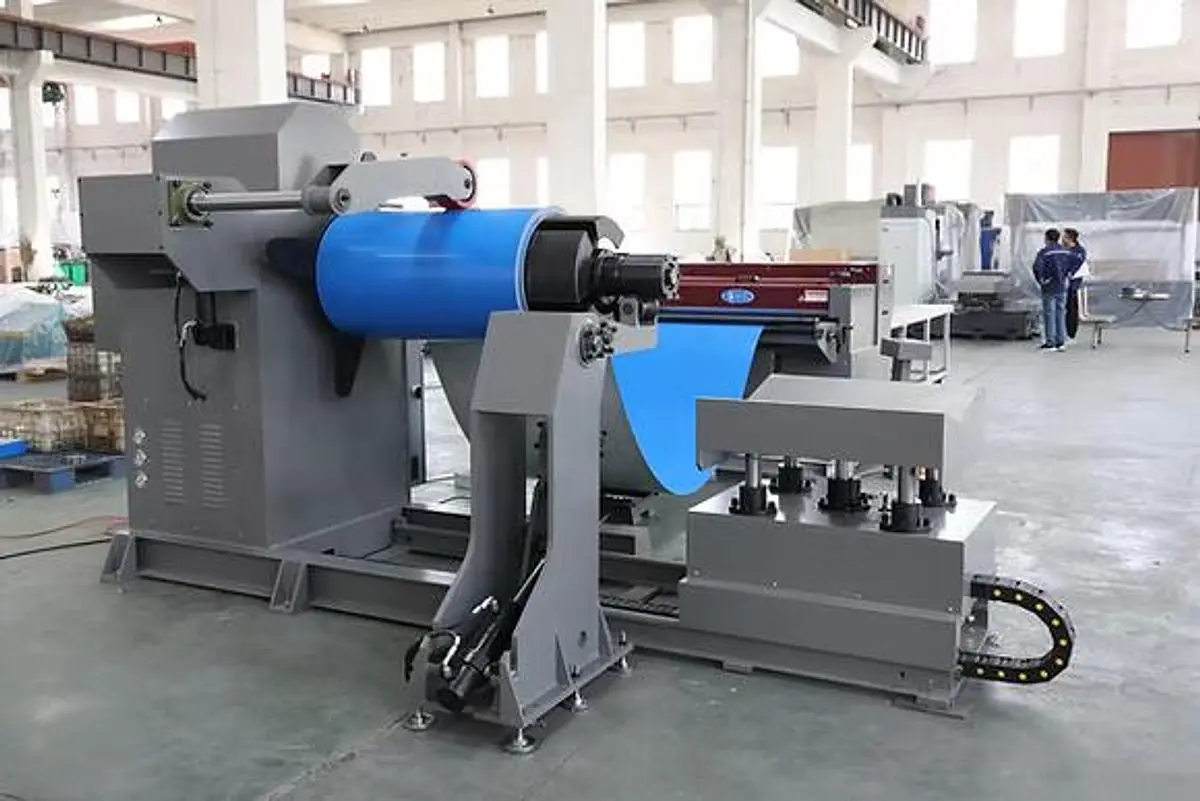

Product: HVAC MACHINE TOOLS
COIL SIZE: 48" WIDE
COIL ID 20" hYDR CLAMPING RANGE: 18 1/2" - 20 3/4"
MAX COIL OD: 47"
MAX COIL WEIGHT (6 TONS): 13,200 LBS.
SPEED: 0-100'/ MIN
HYDR SYSTEM PRESSURE: 0-15 MPA
MAIN MOTOR: 7 1/2 HP, 220V, 3 PHASE
HYDRAULIC MOTOR: 4 HP, 220V, 3 PHASE
MACHINE DIMENSIONS: 166" X 95" X 85"
MACHINE WEIGHT: 10,150 LBS.
Standard Features:
ISO 9001 certified
American design and Taiwan quality machine
Hydraulic clamping for coil
Hydraulic coil feeding table with height control
With sensors to avoid the sheet metal touches the floor.
Hydraulic front support arm
Hydraulic top support arm
One year warranty for parts
