Vulcan VPT15LL Full Height Insulated Mobile Heated Cabinet W/ (30) Pan Capacity, 120v
Overview
Description

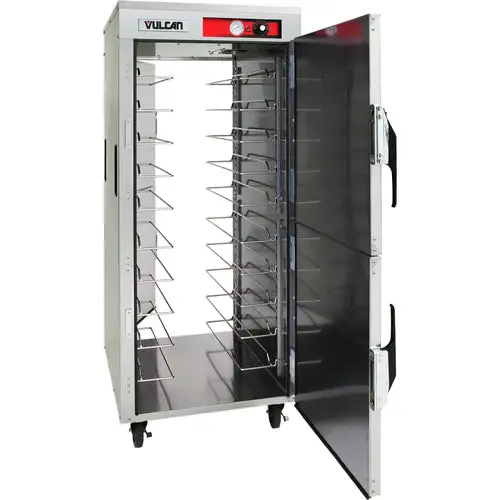

The Vulcan VPT15LL insulated mobile heated cabinet measures 27 inches wide by 34 1/2 inches deep by 66 1/2 inches high. Its fixed lip-load racks can hold (30) 18-inch by 26-inch by 1-inch food pans. Fully insulated, the cabinet retains heat and energy to keep product warm until it's served. A forced-air blower enables uniform heating, while its analog thermometer can be adjusted as high as 190 degrees Fahrenheit.
Made of integrated steel, the Vulcan VPT15LL full-height heated cabinet is built with a strong frame and made of stainless steel that won't rust or corrode. To prevent accidental changes, the control panel is recessed so employees wona€™t bump it. This unit is positioned on 5-inch casters, two of which have brakes to stabilize the cabinet while it's loaded and unloaded. For maneuvering, both sides of the cabinet are fitted with push handles.
Product Details
Full-height, pass-thru design
Forced-air blower
Recessed control panel prevents unwanted changes
Analog thermometer
Maximum temperature: 190 degrees F
Accommodates (30) 18-in. x 26-in. x 1-in. food pans
Fixed lip-load racks
Push handles help guide the unit in transport
Made of rust-resistant stainless steel
Solid Dutch doors with magnetic latches
Fully insulated cabinet
Integrated steel frame provides strength
5-in. casters (2 swivel with brakes, 2 rigid)
Dimensions & Utilities
27 in. W x 34 1/2 in. D x 66 1/2 in. H
12.5 A, 1500 W
120 V/50-60 Hz/1 ph, cord with NEMA 5-15P plug
Product Features
Specifications
Manufacturer
Vulcan
Application
Heat & Humidity
Color
Silver
Construction
Stainless Steel
Control Location
Top
Controls
Dial
Depth (in)
34.5
Door Design
Half
Door Type
Solid
Heat
Electric
Height (in)
66.5
Hertz
60
Hinge Configuration
Right
kW
12.5
Load Type
Pass Thru
NEMA
5-15P
No. of Doors
2
Pan Capacity
30
Phase
1
Product
Heated Cabinets
Product Type
Food Warming Equipment
Sections
1
Series
VPT Series
Size
Full Height
Slide Spacing (in)
1.5
Slide Type
Lip Load
Special Features
All Stainless Exterior
Special Features
Field Reversible Door
Type
Insulated
Voltage
120
Warranty
1-year Limited Parts & Labor; 10-year Heating Element
Width (in)
27.25
Weight
297.00
Specifications
Manufacturer: Vulcan
Application: Heat & Humidity
Color: Silver
Construction: Stainless Steel
Control Location: Top
Controls: Dial
Depth (in): 34.5
Door Design: Half
Door Type: Solid
Heat: Electric
Height (in): 66.5
Hertz: 60
Hinge Configuration: Right
kW: 12.5
Load Type: Pass Thru
NEMA: 5-15P
No. of Doors: 2
Pan Capacity: 30
Phase: 1
Product: Heated Cabinets
Product Type: Food Warming Equipment
Sections: 1
Series: VPT Series
Size: Full Height
Slide Spacing (in): 1.5
Slide Type: Lip Load
Special Features: All Stainless Exterior
Special Features: Field Reversible Door
Type: Insulated
Voltage: 120
Warranty: 1-year Limited Parts & Labor; 10-year Heating Element
Width (in): 27.25
Weight: 297.00
