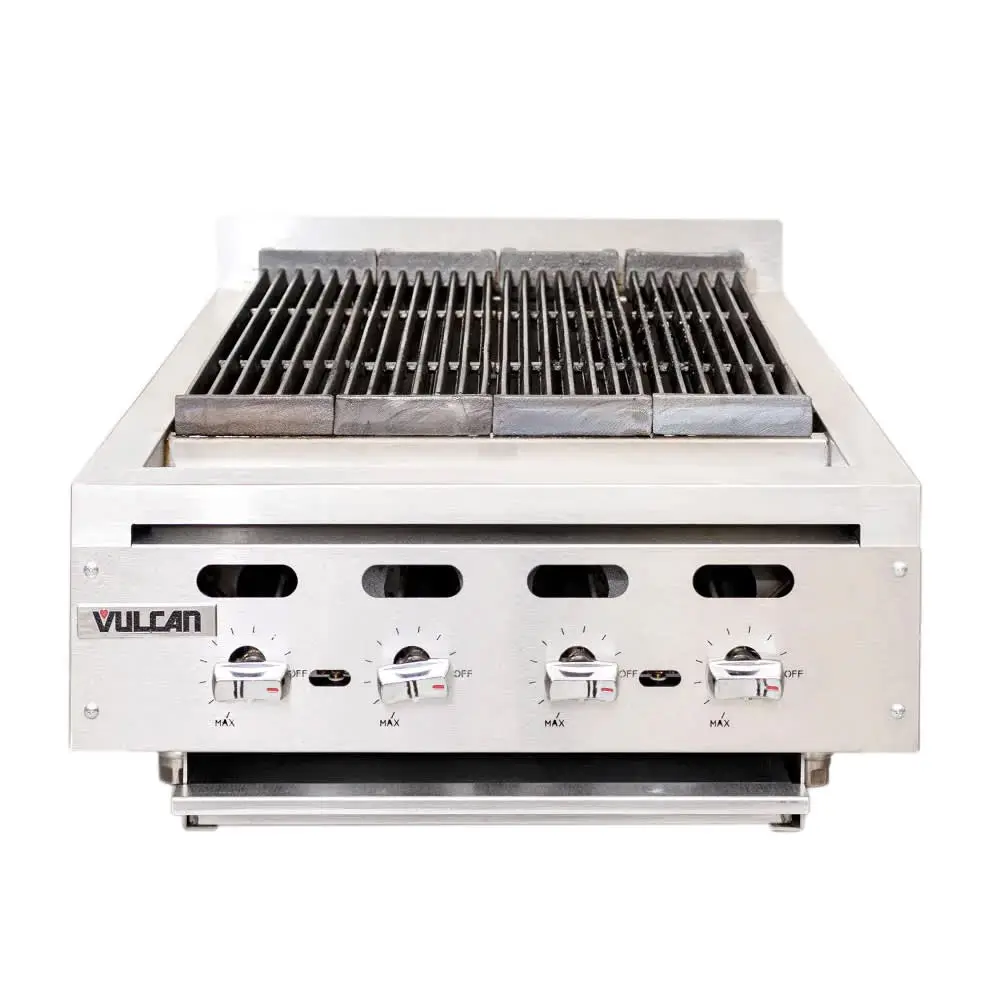

Vulcan VACB25 25 3/8" Radiant Charbroiler W/ Cast Iron Grates, Natural Gas

The Vulcan VACB25 gas charbroiler has four 5 1/4-inch-wide, cast iron diamond grates that are each heated by 17,000 BTU burners to provide operators with an even heat transfer. Since there are burner dividers, heat transfer between grates is minimized to provide multiple cook zones. For accurate temperature adjustments, each burner has an infinite heat control valve. Marks for valve adjustments are engraved in the front panel to make setup simple. Grease and other messes are contained in a grease drawer. With its tray system, the Vulcan VACB25 gas charbroiler reflects heat up and out of the grease drawer to make it easy to clean. Maintaining a level cooking surface is simple thanks to the 4-inch adjustable legs.
Product Details

Heated with natural gas
4 cast iron diamond grates each measure 5 1/4-in. wide
(1) 17,000 BTU burner for every diamond grate produces an even heat transfer
Burner dividers minimize heat transfer to create multiple cook zones
Each burner has infinite heat control valves for temperature adjustments
Marks for valve adjustments are engraved in the front panel to make setup simple
Radiants have heavy-duty cast iron construction
Standing pilot system is easy to light
Grease and other liquids are held in the grease drawer
Heat is reflected upward with a tray system to keep the drawer cool
Drip tray facilitates cleaning
4-in. legs can be adjusted to maintain a level surface
Durability is offered with an all welded chassis and stainless steel components
3/4-in. rear gas connection and gas pressure regulator
68,000 BTU
Broiling Area Dimensions: 21 1/2 in. W x 22 5/16 in. D
Overall Dimensions: 25 3/20 in. W x 31 in. D x 15 3/10 in. H
Specifications
Manufacturer
Vulcan

Cooking Surface
Cast Iron

Function
Heavy Duty

Gas Type
NG

Grid Area
483

Heat
Gas

Height (in)
11.5

Number of Burners
4

Product
Charbroilers

Product Type
Countertop Cooking Equipment

Rating
Better

Series
Achiever

Total BTU
42000

Type
Radiant

Warranty
1-year Limited Parts & Labor

Width (in)
25.38

Weight
290.00

Manufacturer: Vulcan
Cooking Surface: Cast Iron
Function: Heavy Duty
Gas Type: NG
Grid Area: 483
Heat: Gas
Height (in): 11.5
Number of Burners: 4
Product: Charbroilers
Product Type: Countertop Cooking Equipment
Rating: Better
Series: Achiever
Total BTU: 42000
Type: Radiant
Warranty: 1-year Limited Parts & Labor
Width (in): 25.38
Weight: 290.00
