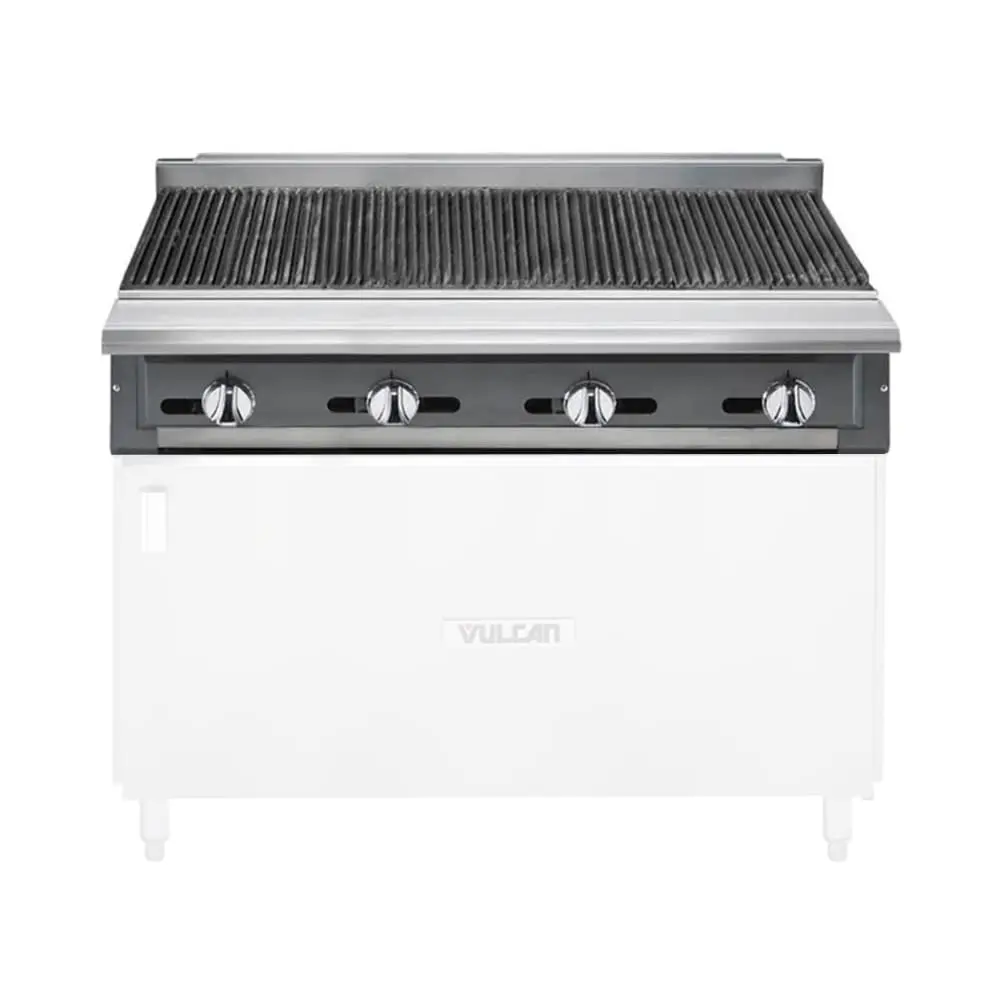

For placement on a countertop or equipment stand, the Vulcan VCBB48 heavy-duty gas range features a modular base placed on 4-inch flanged feet, which can be raised or lowered to stabilize the unit on sloped or irregular surfaces. This 48-inch-wide by 36 3/4-inch-deep by 17 15/16-inch-tall piece can save space in compact kitchens and because its front, front top ledge, burner box, sides, and stub back are made of durable stainless steel, it resists rusting, denting, and scratching through high-volume use for prolonged service life.
The Vulcan VCBB48 gas range's top features a 48-inch-wide charbroiler with eight burners. Each burner has a corresponding pilot light and control so only parts of the charbroiler can be used during slow periods. When all burners are in use, this LP-gas-powered unit can output 130,000 BTUs per hour. Its char radiants and stainless steel supercharger burner dividers create a uniformly heated surface, while the heavy-duty slant cast grates leave behind appetizing grill marks and a smoky flavor. To ease cleanup, the grates can be lifted off, and the crumb tray's collected food residue can be removed.
Product Details
Part of Vulcan's V series
Durable stainless steel front, front top ledge, burner box, sides, base, and stub back
48-in.-wide charbroiler
8 burners with individual pilots and controls for each burner
Char radiants
Stainless steel supercharger burner dividers
8 lift-off, heavy-duty, slanted cast iron grates
4-in. stub riser
Modular base mounted on 4-in. adjustable flanged feet
130,000 BTU
Dimensions & Utilities
48 in. W x 36 3/4 in. D x 17 15/16 in. H
Powered by LP gas
1 1/4-in. diameter front gas manifold
3/4-in. rear gas connection
Product Features
Specifications
Manufacturer
Vulcan
Application
Heavy Duty
Base
Modular
BTU / Burner
16250
Burner Configuration
Standard
Burner Style
None
Burner Type(s)
None
Depth (in)
36.75
Gas Type
LP
Heat
Gas
Height (in)
17.94
Installation Type
Freestanding
Number of Burners
None
Number of Ovens
No Oven
Product
Gas Ranges
Product Type
Cooking Equipment
Range Configuration
Charbroiler
Rating
Best
Series
V Series
Total BTU
130000
Vent
Stub Back
Warranty
1-year Limited Parts & Labor
Width (in)
48
Weight
525.00
Manufacturer: Vulcan
Application: Heavy Duty
Base: Modular
BTU / Burner: 16250
Burner Configuration: Standard
Burner Style: None
Burner Type(s): None
Depth (in): 36.75
Gas Type: LP
Heat: Gas
Height (in): 17.94
Installation Type: Freestanding
Number of Burners: None
Number of Ovens: No Oven
Product: Gas Ranges
Product Type: Cooking Equipment
Range Configuration: Charbroiler
Rating: Best
Series: V Series
Total BTU: 130000
Vent: Stub Back
Warranty: 1-year Limited Parts & Labor
Width (in): 48
Weight: 525.00
