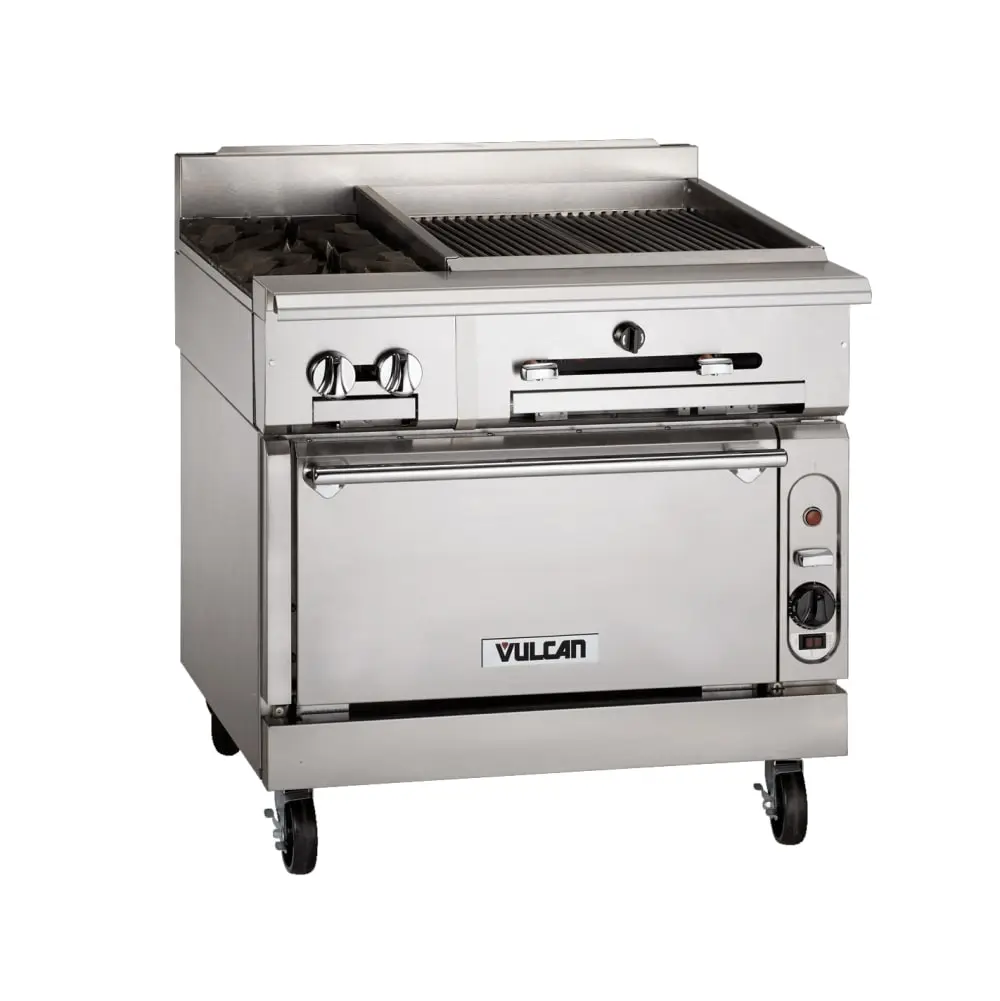

Designed to keep ingredients within close reach, the Vulcan VTC36B charbroiler range comes with a cabinet base to accommodate herbs, spices, and other ingredients or cooking equipment within arma€™s reach. Its front, top, base, sides, and back are constructed of durable stainless steel, and it sits 6-inch adjustable legs for level use on uneven surfaces. This unit comes with a 4-inch back riser to reduce cooking messes on back walls. Overall, it measures 36 inches wide by 36 3/4 inches deep by 40 1/2 inches high.
With its 36-inch charbroiler, the Vulcan VTC36B gas range can distribute 22,000 BTU of heat across each of its three burners. Powered by liquid propane, it has a 1 1/4-inch gas connection and thoroughly cooks cuts of pork, steak, and chicken. Its emitter panels are stainless steel so heat is distributed evenly, and the temperature can be quickly adjusted using the unit's chrome burner knobs. To ensure this model can quickly warm up to its desired heat, each burner is equipped with a heat control valve and a piezo spark igniter.
Product Details
Front, base, top, sides and back constructed of stainless steel
Cabinet base
Burner control knobs made from chrome
Stainless steel emitter panels use infrared technology
6-inch adjustable legs balance unit on uneven ground
Full-width stainless steel crumb tray
Charbroiler Details
4-in. rear riser
Infrared burners each output 22,000 BTU per hour
1 heat control valve and piezo spark igniter per burner
Dimensions and Utilities
Cooking grids: (3) 11 in. L x 25 in. W
Overall: 36 in. W x 36 3/4 in. D x 40 1/2 in. H
Liquid propane
66,000 BTU/hr.
1 1/4-in. gas manifold with 1 1/4-in. rear gas connection
Product Features
Specifications
Manufacturer
Vulcan
Application
Heavy Duty
Base
Storage
BTU / Burner
22000
Burner Configuration
Standard
Burner Style
None
Burner Type(s)
None
Controls
Manual
Depth (in)
36.75
Gas Type
LP
Heat
Gas
Height (in)
36
Installation Type
Freestanding
Number of Burners
None
Number of Ovens
No Oven
Product
Gas Ranges
Product Type
Cooking Equipment
Range Configuration
Charbroiler
Rating
Best
Series
VTC Series
Special Features
Spark Ignition
Total BTU
66000
Vent
Stub Back
Warranty
1-year Limited Parts & Labor
Width (in)
36
Weight
504.00
Manufacturer: Vulcan
Application: Heavy Duty
Base: Storage
BTU / Burner: 22000
Burner Configuration: Standard
Burner Style: None
Burner Type(s): None
Controls: Manual
Depth (in): 36.75
Gas Type: LP
Heat: Gas
Height (in): 36
Installation Type: Freestanding
Number of Burners: None
Number of Ovens: No Oven
Product: Gas Ranges
Product Type: Cooking Equipment
Range Configuration: Charbroiler
Rating: Best
Series: VTC Series
Special Features: Spark Ignition
Total BTU: 66000
Vent: Stub Back
Warranty: 1-year Limited Parts & Labor
Width (in): 36
Weight: 504.00
