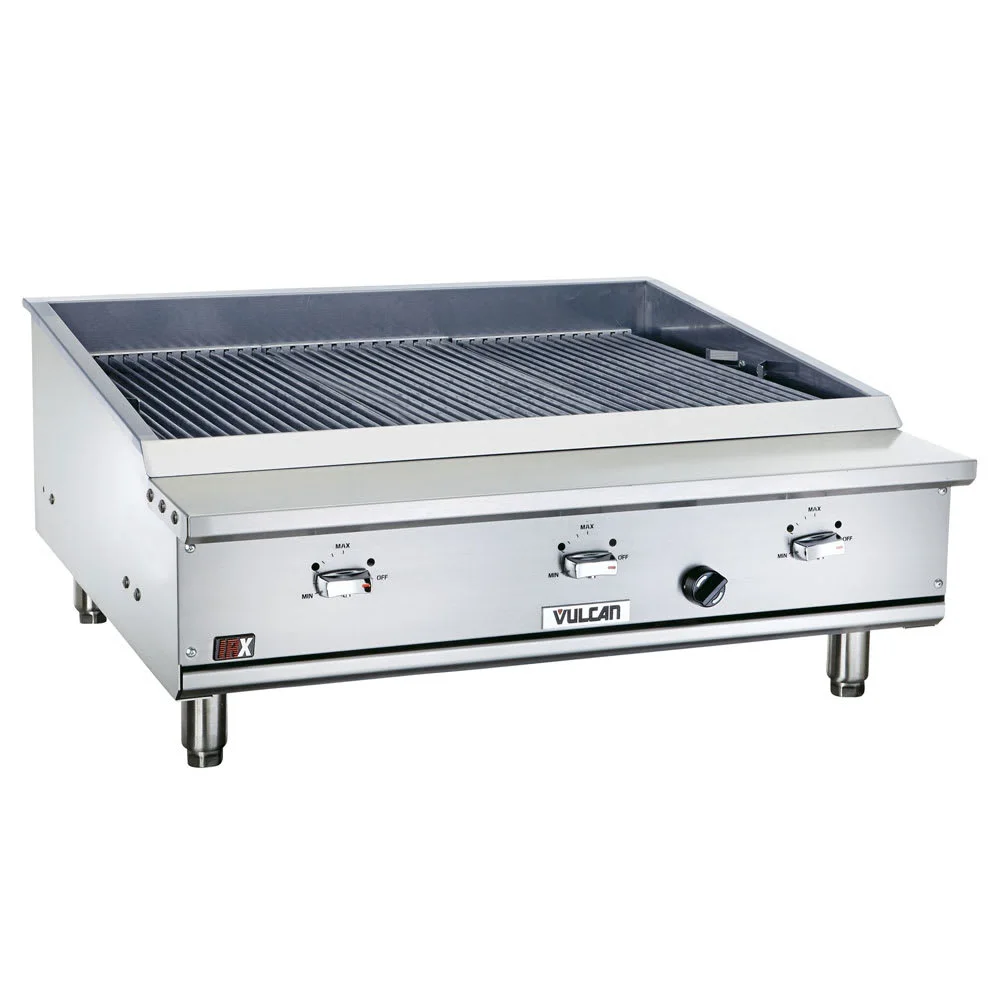

The Vulcan VTEC36 IRX® infrared charbroiler is designed for high-efficiency grilling, featuring three infrared burners that each produce 22,000 BTU, for a total output of 66,000 BTU. The unit includes stainless steel cooking grids, each measuring 11 inches by 25 inches, providing 275 square inches of cooking area per burner zone. A manual control valve for each burner allows precise heat adjustments, while the piezo ignition system ensures dependable startup.
Constructed for durability, the Vulcan VTEC36 charbroiler features a stainless steel front, sides, control panel, top trim, and backsplash. A full-width stainless steel crumb tray collects debris for easy maintenance, while removable heat shields and a backsplash help maintain a cleaner cooking environment. The unit is supported by four adjustable 4-inch legs and operates on liquid propane, utilizing a 3/4-inch NPT rear gas connection with an included gas pressure regulator.
Product Details
Series: IRX
Stainless steel front, sides, control panel, top trim, and backsplash
(3) 22,000-BTU infrared burners
11-in. x 25-in. stainless steel cooking grids
275 sq. in. cooking area per burner zone
Heavy-duty steel infrared emitter panels
Manual heat control valves
Piezo ignition system
Chrome burner control knobs
Full-width stainless steel crumb tray
Removable stainless steel heat shield and backsplash
(4) 4-in. adjustable legs
Dimensions & Utilities
Overall dimensions: 36 2/5 in. W x 35 1/10 in. D x 12 1/2 in. H
66,000 BTU
3/4-in. NPT rear gas connection with gas pressure regulator
Powered by liquid propane
Specifications
Manufacturer
Vulcan
Cooking Surface
Stainless Steel
Gas Type
LP
Product
Charbroilers
Product Type
Countertop Cooking Equipment
Rating
Better
Series
VTEC Series
Warranty
1-year Limited Parts & Labor
Width (in)
36.5
Weight
210.00
Manufacturer: Vulcan
Cooking Surface: Stainless Steel
Gas Type: LP
Product: Charbroilers
Product Type: Countertop Cooking Equipment
Rating: Better
Series: VTEC Series
Warranty: 1-year Limited Parts & Labor
Width (in): 36.5
Weight: 210.00
