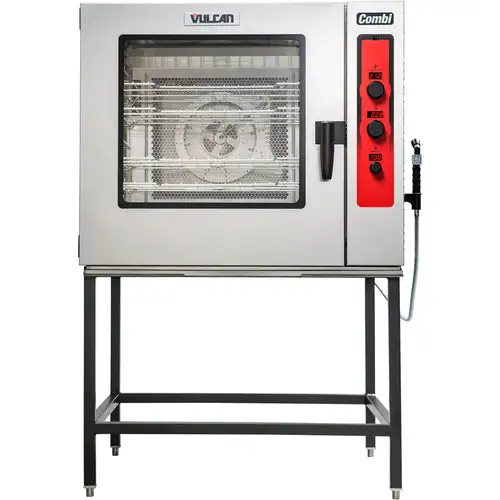

Vulcan ABC7E-208 Full Size Combi Oven - Boilerless, 208v/3ph

Like a conventional convection oven, hot circulating air in the Vulcan ABC7E-208 electric boilerless combi oven cooks food in the cavity. Hot air is circulated on all sides, ensuring fast and thorough grilling, roasting, and baking. Dry cooking in this unit is ideal for intensive browning, while hot air cooking works well with foods requiring short cooking times, such as steaks, cutlets, filets, schnitzel, and pizza. This function can also be used in the preparation and finish of au gratin foods.
This unit has a high-end temperature of 450 degrees Fahrenheit. Preheated grates or the combia€™s pan racks can be used to grill and mark meats. The combination mode in this unit combines the short cooking times and minimal shrinkage of steam cooking with the appetizing color and aroma of hot air cooking by using superheated steam that is around 212 degrees Fahrenheit.
Superheated steam in the Vulcan ABC7E-208 combi oven envelops food on all sides to speed up the cooking process. It is ideal for preparing meats and baking rolls, breads, and pastries with browned crusts and light, tender interiors. This mode can also be used for re-heating and thawing cook-chill product or prepared foods. All types of roasts, pork, beef, lamb, poultry, meat loaf, meat pies, fish, casseroles, and stuffed vegetables respond well to this mode of cooking.

Product Details





Can be used with convection, steam, or a combination of both
Direct steam optimizes production and cooking capability
3 knobs for humidity, time, and temperature control
Temperature range: 80-450 degrees F
Humidity range: 0-100 percent
Timer range is continuous up to 23 hrs. 59 min.
Flashing door lights and an audible alarm system alert the user when the cooking cycle finishes
Patent-pending humidity level control adjusts automatically after temperature is set
Humidity control efficiently uses water and energy
Minimal water and energy consumption
Auto-reversing fan with an electronic braking system on the motor
Large LED displays for humidity, time, and temperature controls
Visual recall display for actual temperature and humidity on LED displays
Batch cooking timer reloads after the timed cycle completes
3 halogen lights in the cavity increase product visibility
Can hold (7) 18-in. x 26-in. pans or (14) 12-in. x 20-in. pans
4 stainless steel wire racks have a cutout design to expedite pan access
Diagnostics are accessible through the USB port or control panel
Heat-reflective, tempered glass door stays cool to the touch and is energy efficient
All stainless steel interior is durable and resists rust

Dimensions & Utilities





42 1/5 in. W x 43 3/10 in. D x 35 in. H
86.5 A, 18 kW
208 V/60 Hz/1 ph
Specifications
Manufacturer
Vulcan

Controls
Manual

Depth (in)
43.5

Heat
Electric

Height (in)
35

Hertz
60

kW
18

No. of Compartments
Double

Pan Type
Full Size Sheet Pans

Pan Type
Full Size Steam Pans

Pan Type
Half Size Sheet Pans

Pan Type
Half Size Steam Pans

Phase
1

Product
Combi Ovens

Product Type
Cooking Equipment

Rating
Better

Series
ABC Series

Sheet Pan Capacity
7 Full

Size
Full Size

Steam Generator
Boilerless

Steam Pan Capacity
14 Full

Voltage
208

Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Width (in)
42.2

Weight
580.00

Manufacturer: Vulcan
Controls: Manual
Depth (in): 43.5
Heat: Electric
Height (in): 35
Hertz: 60
kW: 18
No. of Compartments: Double
Pan Type: Full Size Sheet Pans
Pan Type: Full Size Steam Pans
Pan Type: Half Size Sheet Pans
Pan Type: Half Size Steam Pans
Phase: 1
Product: Combi Ovens
Product Type: Cooking Equipment
Rating: Better
Series: ABC Series
Sheet Pan Capacity: 7 Full
Size: Full Size
Steam Generator: Boilerless
Steam Pan Capacity: 14 Full
Voltage: 208
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 42.2
Weight: 580.00
