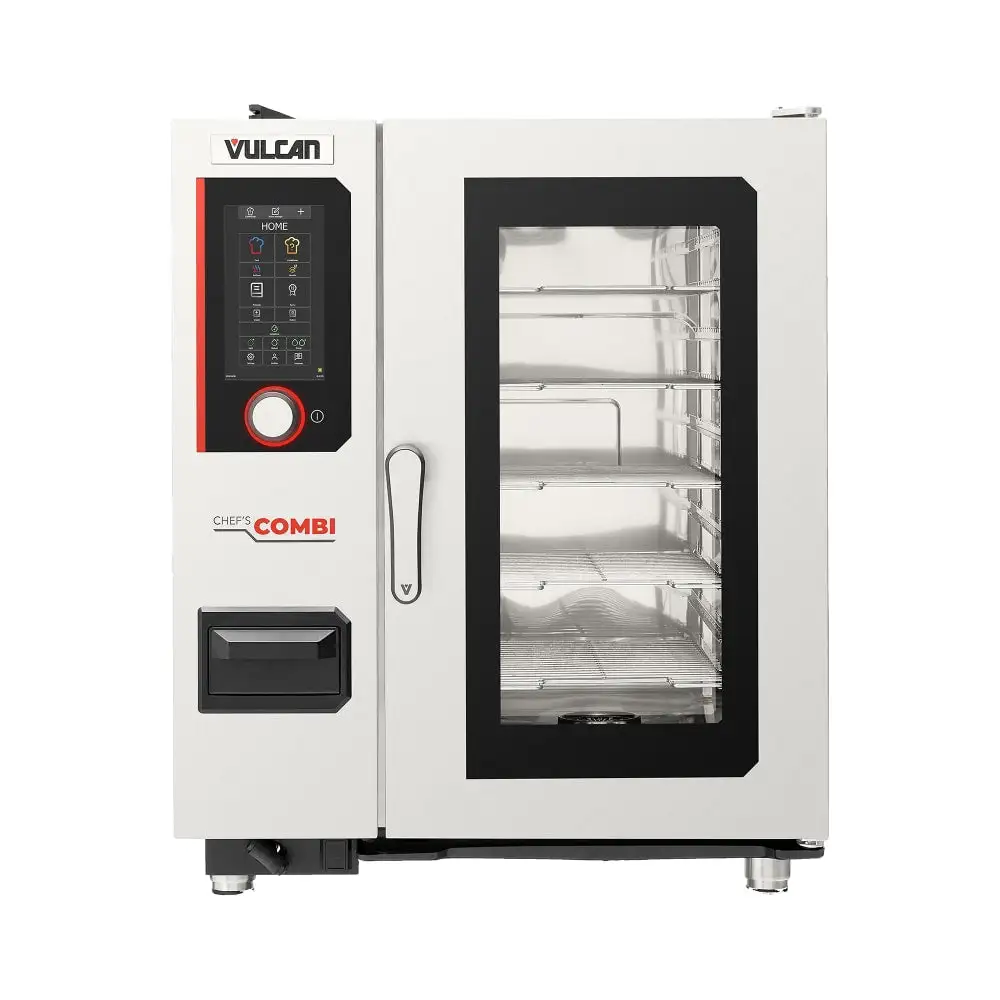

Vulcan CHEF-101E Chef'scombi Half Size Combi Oven - Boiler Based, 240v/3ph

The Vulcan CHEF-101E Chef'sCombi half-size combi oven features a half-size capacity that supports (10) 13-inch by 18-inch half-size sheet pans or (10) 12-inch by 20-inch hotel pans. Its single cooking chamber accommodates six pan levels, with each level supporting a maximum load of 11 pounds. Built from seamless ASTM 304 stainless steel, the cabinet includes rounded interior corners and a double-glazed glass door with heat-reflective coating, rear ventilation, and rotating panels for easier cleaning.
Comprehensive cooking control is achieved with the Vulcan CHEF-101E half-size combi ovena€™s boiler-based steam generation system and digital CombiOS interface. The 10-inch capacitive touchscreen enables intuitive programming, drag-and-drop step creation, and quick access to CombiGuide, MenuMix, and AutoClimate tools. Its advanced cooking platform supports convection, steam, and combination cooking modes. The system adjusts humidity, temperature, and cook times based on load characteristics, and automatically monitors and records HACCP data.

Product Details





Chefa€™sCombi series
Half-size capacity
Holds (10) 13-in. x 18-in. sheet pans
Holds (10) 12-in. x 20-in. steam pans
6 pan levels
ASTM 304 stainless steel interior
11-lb. maximum load per level
110.23-lb. total load capacity
2 16/25-in. spacing between rack levels
1 right-hinged, double-glazed door with heat-reflective glass door coating
Integrated retractable sprayer
5 wire racks included
IPX5-rated housing

Cooking System





Boiler-based steam generation system
Convection cooking: 80a€“575 degrees F
Steam cooking: 90a€“270 degrees F
Combination cooking: 80a€“575 degrees F
Multi-point core temperature probe
Delta-T cooking mode
5 fan speeds
Air and water cabinet cooling
CombiClimateControl automation
AutoClimate adjustment
Automatic proofing function
Cook and hold feature

User Interface & Controls





10-in. capacitive HD touchscreen
CombiOS operating system
CombiGuide cooking assistant
MenuMix recipe planner
Unlimited recipe storage
12-slot favorites menu
Quick temperature and time menus
Real-time humidity and temperature display
Status LEDs and control illumination
USB and Ethernet port
WiFi/Bluetooth via USB dongle

Dimensions & Utilities





33 1/2 in. W x 35 3/16 in. D x 42 3/8 in. H
19.8 kW, 50.1 A
240 V/60 Hz/3 ph
1 1/2-in. drain connection
3/8-in. GHT-M water connection
Specifications
Manufacturer
Vulcan

Controls
Touch Screen

Depth (in)
35.16

Heat
Electric

Height (in)
42.36

Hertz
60

Hinge Configuration
Right

kW
19.8

No. of Compartments
Single

Pan Type
Full Size Steam Pans

Pan Type
Half Size Sheet Pans

Phase
3

Product
Combi Ovens

Product Type
Cooking Equipment

Rating
Better

Series
Chef'sCombi

Sheet Pan Capacity
10 Half

Size
Half Size

Special Features
Cook & Hold

Special Features
HACCP Record Keeping

Special Features
USB Port

Steam Generator
Boiler-Based

Steam Pan Capacity
10 Full

Steam Source
Water Reservoir

Voltage
240

Warranty
2-year Limited Parts & Labor; 5-year Steam Generator

Width (in)
33.54

Weight
386.00

Manufacturer: Vulcan
Controls: Touch Screen
Depth (in): 35.16
Heat: Electric
Height (in): 42.36
Hertz: 60
Hinge Configuration: Right
kW: 19.8
No. of Compartments: Single
Pan Type: Full Size Steam Pans
Pan Type: Half Size Sheet Pans
Phase: 3
Product: Combi Ovens
Product Type: Cooking Equipment
Rating: Better
Series: Chef'sCombi
Sheet Pan Capacity: 10 Half
Size: Half Size
Special Features: Cook & Hold
Special Features: HACCP Record Keeping
Special Features: USB Port
Steam Generator: Boiler-Based
Steam Pan Capacity: 10 Full
Steam Source: Water Reservoir
Voltage: 240
Warranty: 2-year Limited Parts & Labor; 5-year Steam Generator
Width (in): 33.54
Weight: 386.00
