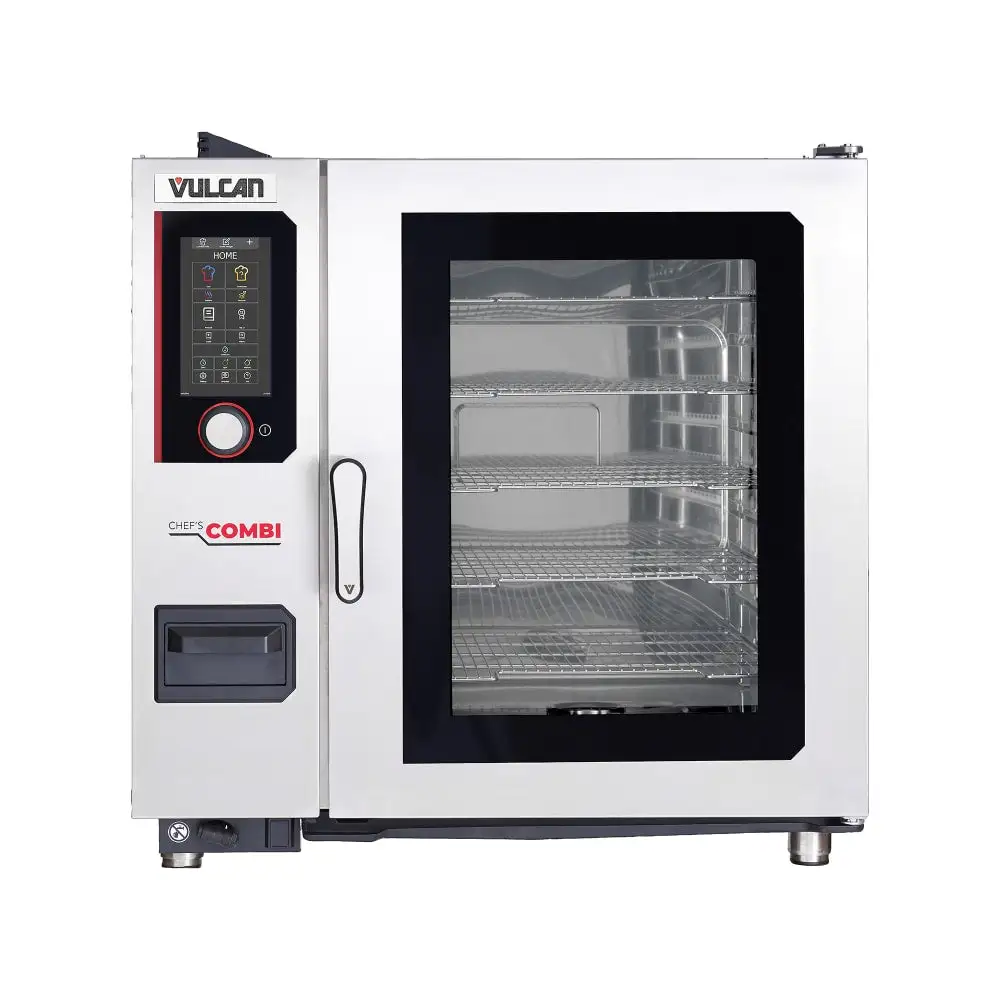

Vulcan CHEF-102E Chef'scombi Full Size Combi Oven - Boiler Based, 208v/3ph

The Vulcan CHEF-102E Chefa€™sCombi full-size combi oven is a boiler-based electric model equipped with 10 levels that hold up to 10 full-size sheet pans or 20 full-size steam pans. Its high-performance steam generator works in tandem with precision heating elements and a reversing fan wheel to ensure even heat circulation across all levels. With five adjustable fan speeds and programmable Delta-T cooking, it supports a wide variety of high-capacity cooking modes. The seamless cooking chamber is constructed of ASTM 304 stainless steel and is illuminated by long-life LEDs behind a double-glazed door with heat-reflective coating and rear ventilation.
The Vulcan CHEF-102E combi oven's operating system includes CombiGuide, MenuMix, AutoClimate, and CombiClimateControl, which facilitate custom control over cooking paths, timing, cabinet climate, and recipe loads. Maintenance is simplified by the CombiCare cleaning system, which includes four preset cycles and an ultrafast rinse. Solid cleaning tablets and descaling sticks automate the wash process across the chamber and steam generator. For data export and HACCP compliance, the system features USB, Ethernet, and optional WiFi/Bluetooth connectivity.

Product Details





Chefa€™sCombi series
Full-size capacity
Holds (10) 18-in. x 26-in. sheet pans
Holds (20) 12-in. x 20-in. steam pans
10 pan levels
ASTM 304 stainless steel interior
2 16/25-in. spacing between rack levels
1 right-hinged, double-glazed door with heat-reflective glass door coating
Integrated retractable sprayer
5 wire racks included
IPX5-rated housing

Cooking System





Boiler-based steam generation system
Convection cooking: 80a€“575 degrees F
Steam cooking: 90a€“270 degrees F
Combination cooking: 80a€“575 degrees F
Multi-point core temperature probe
Delta-T cooking mode
5 fan speeds
Air and water cabinet cooling
CombiClimateControl automation
AutoClimate adjustment
Automatic proofing function
Cook and hold feature

User Interface & Controls





10-in. capacitive HD touchscreen
CombiOS operating system
CombiGuide cooking assistant
MenuMix recipe planner
Unlimited recipe storage
12-slot favorites menu
Quick temperature and time menus
Real-time humidity and temperature display
Status LEDs and control illumination
USB and Ethernet port
WiFi/Bluetooth via USB dongle

Dimensions & Utilities





41 in. W x 41 1/16 in. D x 42 9/25 in. H
35.9 kW, 101.8 A
208 V/60 Hz/3 ph
1 1/2-in. drain connection
Specifications
Manufacturer
Vulcan

Controls
Touch Screen

Depth (in)
41.06

Heat
Electric

Height (in)
42.36

Hertz
60

Hinge Configuration
Right

kW
35.9

No. of Compartments
Single

Pan Type
Full Size Sheet Pans

Pan Type
Full Size Steam Pans

Phase
3

Product
Combi Ovens

Product Type
Cooking Equipment

Rating
Better

Series
Chef'sCombi

Sheet Pan Capacity
10 Full

Size
Full Size

Special Features
Cook & Hold

Special Features
HACCP Record Keeping

Special Features
USB Port

Steam Generator
Boiler-Based

Steam Pan Capacity
20 Full

Steam Source
Water Reservoir

Voltage
208

Warranty
2-year Limited Parts & Labor; 5-year Steam Generator

Width (in)
41.02

Weight
474.00

Manufacturer: Vulcan
Controls: Touch Screen
Depth (in): 41.06
Heat: Electric
Height (in): 42.36
Hertz: 60
Hinge Configuration: Right
kW: 35.9
No. of Compartments: Single
Pan Type: Full Size Sheet Pans
Pan Type: Full Size Steam Pans
Phase: 3
Product: Combi Ovens
Product Type: Cooking Equipment
Rating: Better
Series: Chef'sCombi
Sheet Pan Capacity: 10 Full
Size: Full Size
Special Features: Cook & Hold
Special Features: HACCP Record Keeping
Special Features: USB Port
Steam Generator: Boiler-Based
Steam Pan Capacity: 20 Full
Steam Source: Water Reservoir
Voltage: 208
Warranty: 2-year Limited Parts & Labor; 5-year Steam Generator
Width (in): 41.02
Weight: 474.00
