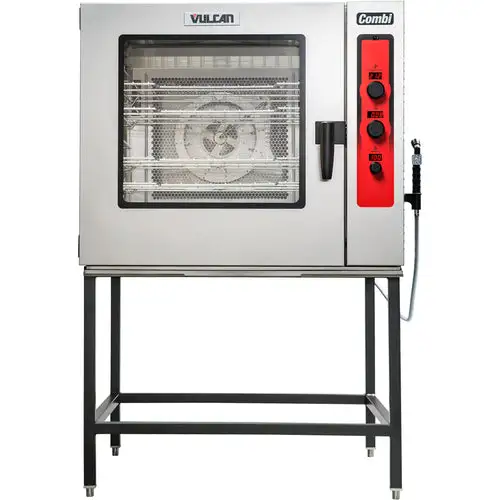

Vulcan ABC7G-NAT Full Size Combi Oven - Boilerless, Natural Gas

The Vulcan ABC7G gas boilerless combi oven is a multi-function unit. Its steaming capability sets it apart from convection ovens and combines two conventional cooking methods while offering a choice of three cooking modes. This built-in versatility enables the unit to prepare a variety of food products. The combi oven can use several different cooking methods including steaming, poaching, roasting, preparing sous vide products, blanching, and more.
Fresh steam in the oven is directed to the cavity, then rapidly circulated within the cavity by its blower, which speeds up heat transfer to reduce cook time. This unit curtails deliming and water problems associated with immersion-element steam generators and closed boilers.
This combi oven can steam vegetables, shellfish, seafood, meats, poultry, and starches including beans, rice, and pasta, while items like meat loaf and casseroles also respond well to steaming. Temperature, time, and humidity are indicated by large LED displays and are manually operated using knobs, while setting the temperature automatically adjusts the humidity level control. The Vulcan ABC7G combi oven comes with four wire racks, but it can accommodate seven 18-inch by 26-inch pans with additional racks.

Product Details





Can be used for baking, steaming, roasting, air-frying, and other cooking methods
Steam is created directly to optimize cooking capability and production
3 knob controls for the temperature, time, and humidity
Temperature range: 80-450 degrees F
Humidity range: 0-100 percent
Continuous timer up to 23 hrs. 59 min.
Setting the temperature automatically adjusts the humidity level
Humidity control ensures accurate humidity for consistent results
Large LED displays for time, temperature, and humidity controls
Visual recall display of actual temperature and humidity LEDs
Timer reloads for batch cooking after the timed cycle has been completed
Audible alarm system and flashing door lights alert the user when the cooking cycle finishes
Electrical braking system on the fan motor with auto-reversing fan
3 halogen lights are built into the door behind heat-reflective inner glass
4 stainless steel wire racks have a cutout design for pan access
Can accommodate (7) 18-in. x 26-in. or (14) 12-in. x 20-in. pans
Machine diagnostics are accessible through the controls or USB port
Energy-efficient, cool-to-the-touch tempered glass door reflects heat
Cooking compartment, sides, and top have stainless steel interiors
Fully insulated
80,000 BTU

Dimensions & Utilities





42 1/5 in. W x 43 1/2 in. D x 35 in. H
Powered by natural gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
Specifications
Manufacturer
Vulcan

Controls
Manual

Depth (in)
43.5

Gas Type
NG

Heat
Gas

Height (in)
35

kW
0.6

No. of Compartments
Double

Pan Type
Full Size Sheet Pans

Pan Type
Full Size Steam Pans

Pan Type
Half Size Sheet Pans

Pan Type
Half Size Steam Pans

Product
Combi Ovens

Product Type
Cooking Equipment

Rating
Better

Series
ABC Series

Sheet Pan Capacity
7 Full

Size
Full Size

Steam Generator
Boilerless

Steam Pan Capacity
14 Full

Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Width (in)
42.2

Weight
600.00

Manufacturer: Vulcan
Controls: Manual
Depth (in): 43.5
Gas Type: NG
Heat: Gas
Height (in): 35
kW: 0.6
No. of Compartments: Double
Pan Type: Full Size Sheet Pans
Pan Type: Full Size Steam Pans
Pan Type: Half Size Sheet Pans
Pan Type: Half Size Steam Pans
Product: Combi Ovens
Product Type: Cooking Equipment
Rating: Better
Series: ABC Series
Sheet Pan Capacity: 7 Full
Size: Full Size
Steam Generator: Boilerless
Steam Pan Capacity: 14 Full
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 42.2
Weight: 600.00
