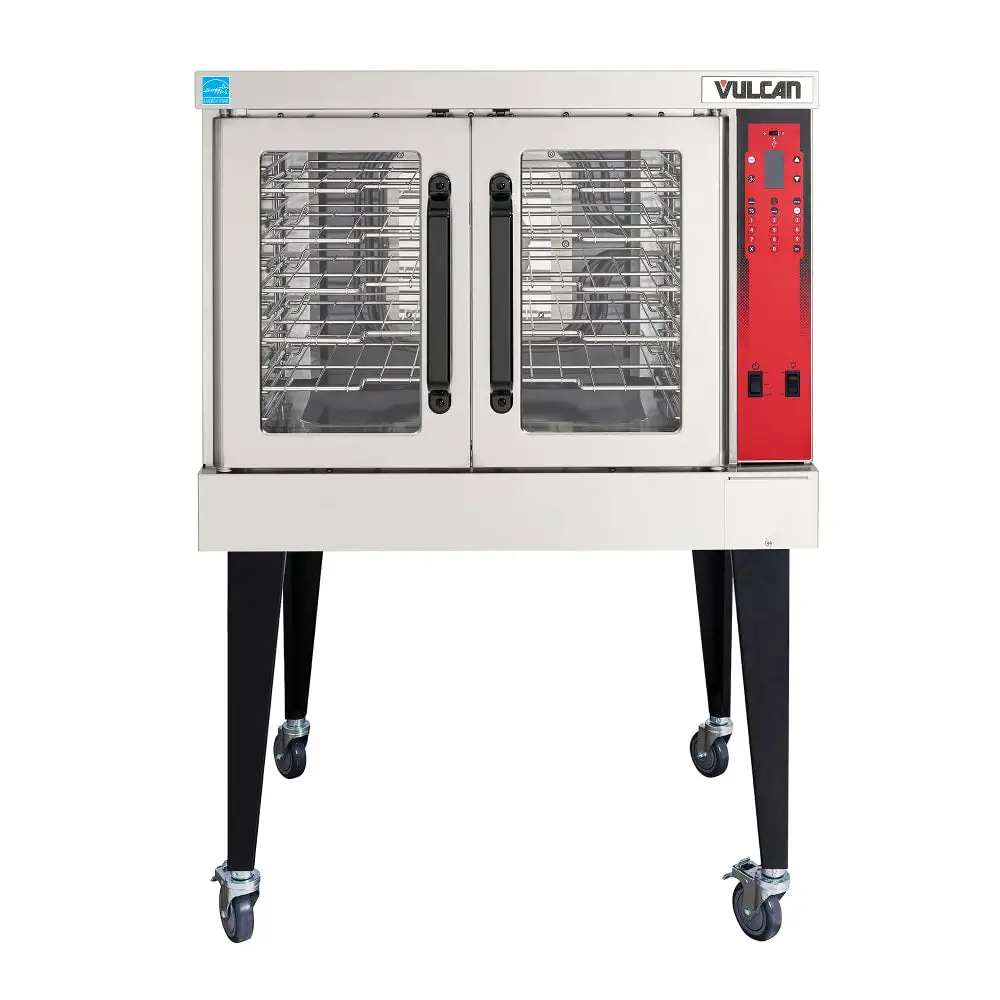

Vulcan VC4EC Single Full Size Electric Convection Oven - 12.5 Kw, 208v/1ph

Good for medium-sized commercial operations, the Vulcan VC4EC single-deck electric convection oven has five nickel-plated oven racksa€”each measures 28 1/4 inches wide by 20 1/2 inches deep to provide ample space for myriad foods. The oven is heated by electric, solid-sheath elements, and a two-speed, 1/2-horsepower oven blower-motor moves air around product. Its top, rear, sides, bottom, and doors are insulated to retain heat, supporting back-to-back use.
For more user control, the Vulcan VC4EC single-deck convection oven has computer controls with digital time and temperature readouts, a 99-hour timer with an audible alarm, and 100 programmable menu selections. Operators can open the doors separately to reach desired product, reducing heat loss; double-pane windows on each door enable users to oversee cooking progress. Supported by 23 3/4-inch painted legs, this unit measures 40 inches wide by 42 1/4 inches deep by 54 3/4 inches high.

Product Details





Part of the VC4EC series
5 nickel-plated racks
Heated by electric, solid-sheath elements
Stainless steel front, top, and sides
Computer controls read the digital time and temperatures
99-hour timer with an audible alarm
Roast-and-hold cycle
100 programmable menu selections
2-speed, 1/2-horsepower oven blower-motor
Rapid cool-down switch
Moisture vent controls dampness
Porcelain enamel on steel oven interior
2 independently operated steel doors
Built-in, double-pane windows on doors
2 interior oven lights
23 3/4-in. legs
Rear clearance: 2 in.
Right side clearance: 4 in.
Left side clearance: 1 in.

Dimensions & Utilities





Oven interior: 29 in. W x 22 1/8 in. D x 20 in. H
Oven racks: (5) 28 1/4 in. W x 20 1/2 in. D
Overall: 40 in. W x 42 1/4 in. D x 54 3/4 in. H
12.5 kW, 1/2 HP
208 V/60 Hz/1 ph

Product Features
Specifications
Manufacturer
Vulcan

Base
Legs

Controls
Digital

Depth (in)
41.13

Door Type
Independent

Heat
Electric

Height (in)
54.75

Hertz
60

kW
12.5

Number of Ovens
Single

Oven Interior Style
Standard Depth

Pans Per Deck
5

Phase
1

Product
Convection Ovens

Product Type
Cooking Equipment

Rating
Better

Series
VC4E Series

Size
Full Size

Special Features
Cook & Hold

Special Features
Programmable

Type
Floor Model

Voltage
208

Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Width (in)
40.25

Weight
440.00

Manufacturer: Vulcan
Base: Legs
Controls: Digital
Depth (in): 41.13
Door Type: Independent
Heat: Electric
Height (in): 54.75
Hertz: 60
kW: 12.5
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Phase: 1
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: VC4E Series
Size: Full Size
Special Features: Cook & Hold
Special Features: Programmable
Type: Floor Model
Voltage: 208
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 40.25
Weight: 440.00
