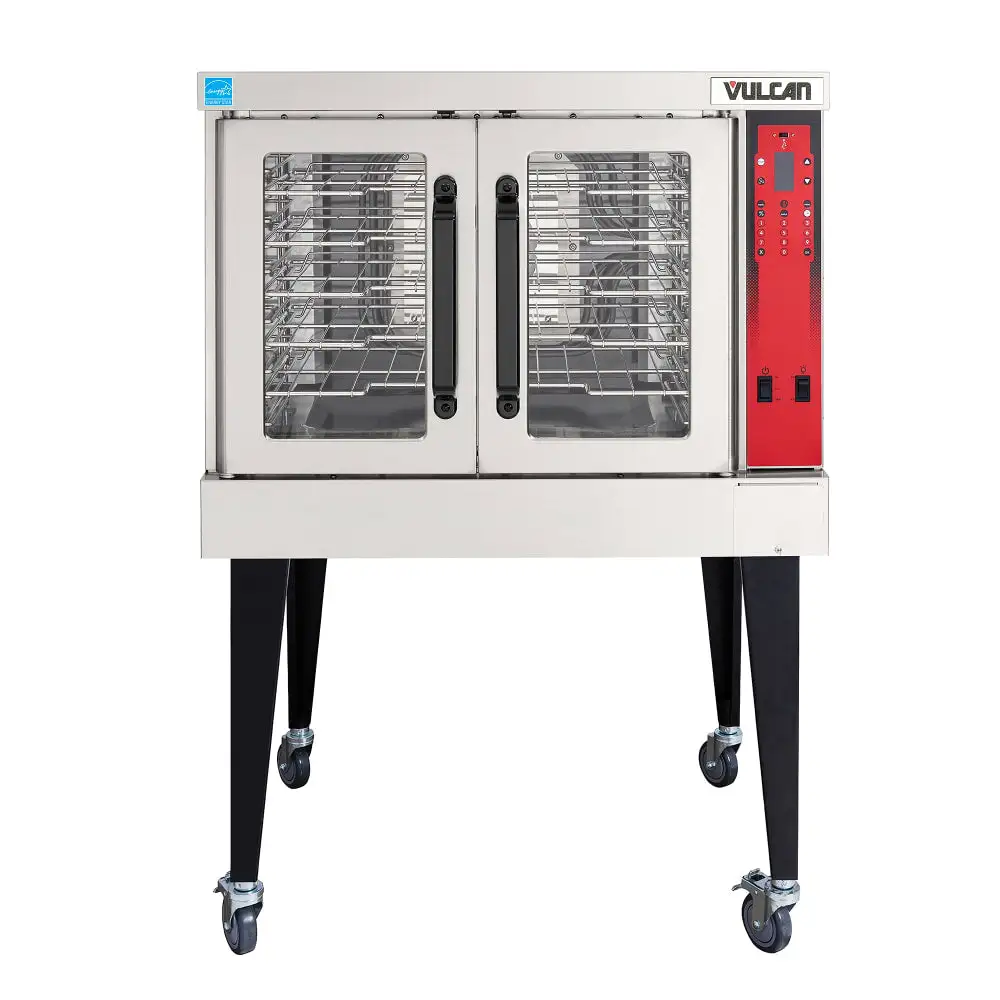

Vulcan VC4EC Single Full Size Electric Convection Oven - 12.5 Kw, 240v/3ph

For resiliency, the Vulcan VC4E single-deck electric convection oven's front, sides, and top are made of durable stainless steel. Its top, rear, sides, bottom, and doors withstand high temperatures because they're insulated with a material that resists sagging over time. The oven's 29-inch-wide by 22 1/8-inch-deep by 20-inch-high frame supports its five 28 1/4-inch-wide by 20 1/2-inch nickel-plated oven racks. To maintain stability throughout operation, it's supported on 23 3/4-inch painted legs.
Users can streamline operations with the computer controls on the Vulcan VC4EC single-deck electric convection oven. It shows the time and temperature digitally, features a 99-hour timer, and enables as many as 100 programmable menu selections, so specific menu items can be cooked at the press of a button. Heated by electric, solid-sheath elements, air from the two-speed oven blower-motor is moved uniformly around product to prevent heat loss. Users can access product directly with the two stainless steel doors, which open independent of one another. They also have double-pane windows that enable users to check cooking progress. Overall, this unit measures 40 inches wide by 42 1/4 inches deep by 52 3/4 inches high to fit numerous kitchen areas.

Product Details





Part of the VC4EC series
5 nickel-plated racks
Electric, solid-sheath heating elements
Stainless steel front, top, and sides
Computer controls
99-hour timer with audible alarm
Roast-and-hold cycle
100 programmable menu selections to streamline operation
Time and temperature digital readouts
2-speed, 1/2-horsepower oven blower-motor
Integrated, rapid cool-down switch
Moisture vent
Porcelain-enameled oven interior
2 independently operating steel doors with 2 double-pane windows
2 interior oven lights
23 3/4-in. painted legs
Rear clearance: 2 in.
Right side clearance: 4 in.
Left side clearance: 1 in.

Dimensions & Utilities





Oven interior: 29 in. W x 22 1/8 in. D x 20 in. H
Oven racks: (5) 28 1/4 in. W x 20 1/2 in. D
Overall: 40 in. W x 42 1/4 in. D x 54 3/4 in. H
12.5 kW, 1/2 HP
240 V/60 Hz/3 ph

Product Features
Specifications
Manufacturer
Vulcan

Base
Legs

Controls
Digital

Depth (in)
41.13

Door Type
Independent

Heat
Electric

Height (in)
54.75

Hertz
60

kW
12.5

Number of Ovens
Single

Oven Interior Style
Standard Depth

Pans Per Deck
5

Phase
3

Product
Convection Ovens

Product Type
Cooking Equipment

Rating
Better

Series
VC4E Series

Size
Full Size

Special Features
Cook & Hold

Special Features
Programmable

Type
Floor Model

Voltage
240

Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Width (in)
40.25

Weight
440.00

Manufacturer: Vulcan
Base: Legs
Controls: Digital
Depth (in): 41.13
Door Type: Independent
Heat: Electric
Height (in): 54.75
Hertz: 60
kW: 12.5
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Phase: 3
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: VC4E Series
Size: Full Size
Special Features: Cook & Hold
Special Features: Programmable
Type: Floor Model
Voltage: 240
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 40.25
Weight: 440.00
