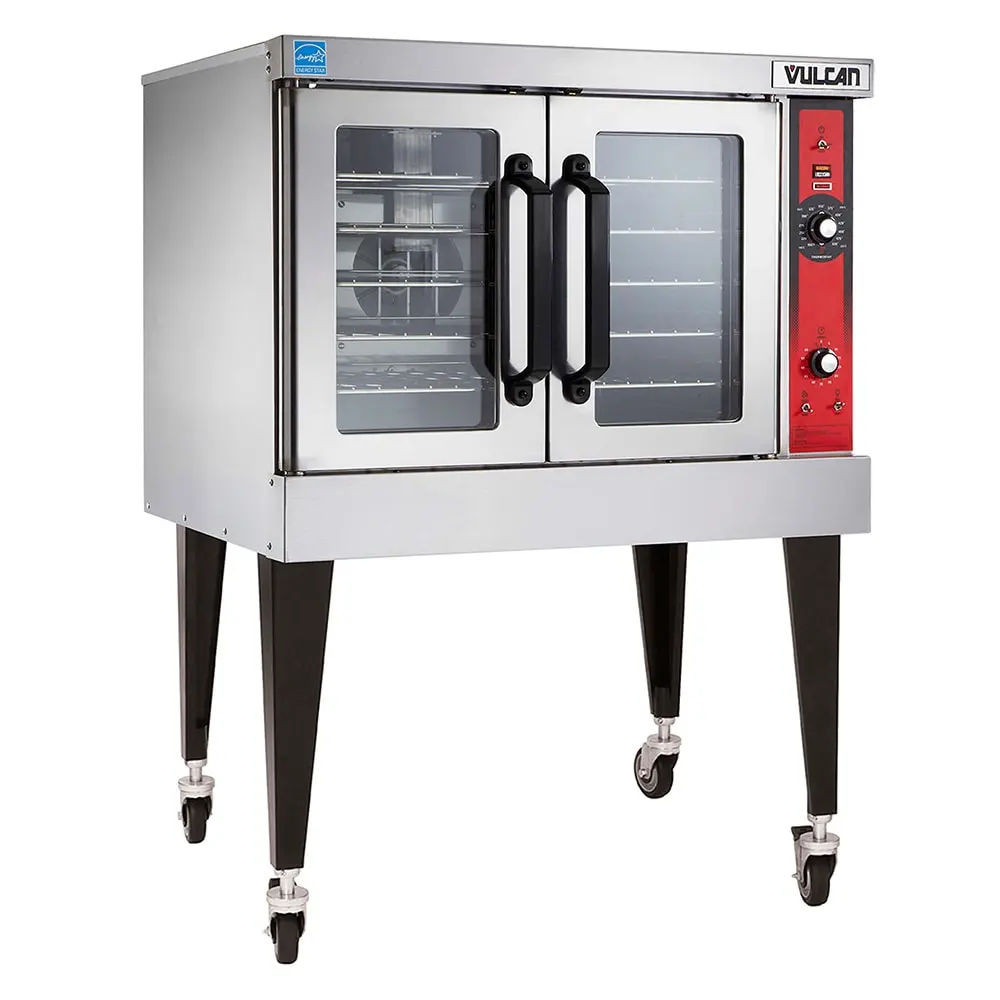

Vulcan VC5ED Single Full Size Electric Convection Oven - 12 1/2 Kw, 240v/1ph

Constructed of stainless steel, the Vulcan VC5ED convection oven resists dents, scratches, and rust. It stands off the floor on 23 3/4-inch legs to make the interior accessible. Each door has its own handle and independently opens to reveal five oven racks in the cavity. Positive stops keep the racks in place and minimize interior damage. With a rotary dial and digital display, the temperature is adjustable from 150 to 500 degrees Fahrenheit. For delicate product, employees can switch the fan setting to low and use the gentle cook mode, which reduces the power to 75 percent. The 5-hour timer and audible alarm keep track of the cook time, while employees can monitor baking product with the interior light and glass windows.
If something goes wrong, the Vulcan VC5ED commercial convection oven automatically diagnoses the problem, speeding up maintenance. At the end of operating hours, the cooldown mode can be used to push heat out of the oven. Employees can remove the racks for cleaning and the doors for unhindered interior access. Any food particles or buildup can be wiped swiftly out of the porcelain-enameled interior because it is nonstick.

Product Details





Stainless steel top, doors, front, and sides are durable
Independent doors have double-pane glass windows
Insulation resists sagging and increases energy efficiency
Porcelain-enameled steel interior helps prevent food buildup
Interior light ensures food is visible
5 durable, nickel-plated oven racks
11 rack positions with rack stops
Solid-sheathed heating elements
2-speed blower circulates heat through the oven
Cooldown switch for rapidly removing heat from the interior
Dial temperature control with digital display
Temperature range: 150-500 degrees F
Gentle cooking mode reduces heat intensity
5-hr. countdown timer with alarm
Self-diagnostics troubleshoot problems as they arise
Painted, 23 3/4-in.-tall legs
Required clearances: 2 in. on back, 4 in. on right, 1 in. on left

Dimensions & Utilities





Racks: 28 1/4 in. W x 20 1/2 in. D
Interior: 29 in. W x 22 1/8 in. D x 20 in. H
Overall: 40 1/10 in. W x 40 in. D x 54 in. H
52 A, 12.5 kW, 1/2 HP
240 V/60 Hz/1 ph
Specifications
Manufacturer
Vulcan

Base
Legs

Controls
Manual

Depth (in)
40

Door Type
Independent

Heat
Electric

Height (in)
54.75

Hertz
60

kW
12.5

Number of Ovens
Single

Oven Interior Style
Standard Depth

Pans Per Deck
5

Phase
1

Product
Convection Ovens

Product Type
Cooking Equipment

Rating
Better

Series
VC5E Series

Size
Full Size

Voltage
240

Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Width (in)
40.25

Weight
337.00

Manufacturer: Vulcan
Base: Legs
Controls: Manual
Depth (in): 40
Door Type: Independent
Heat: Electric
Height (in): 54.75
Hertz: 60
kW: 12.5
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Phase: 1
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: VC5E Series
Size: Full Size
Voltage: 240
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 40.25
Weight: 337.00
