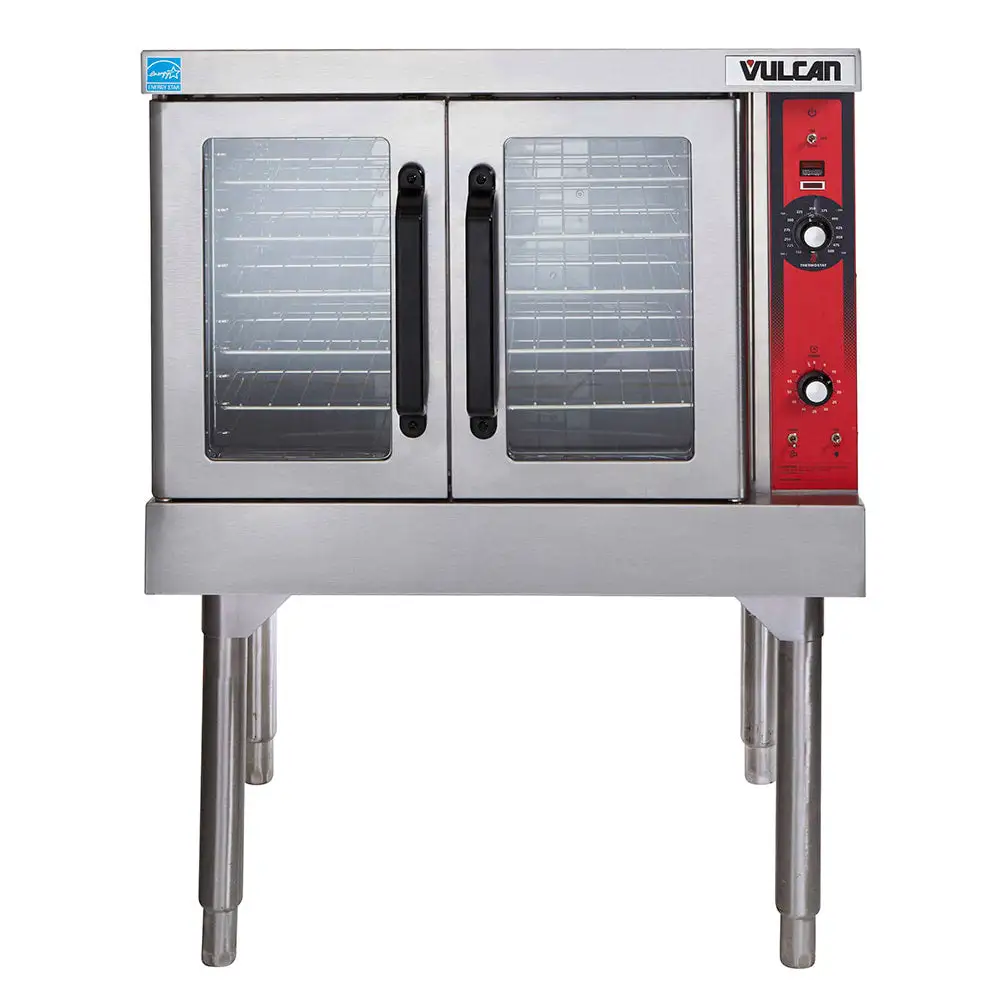

Vulcan VC4GD Single Full Size Natural Gas Convection Oven - 50,000 BTU

The Vulcan VC4GD gas convection oven has a temperature range of 150 to 500 degrees Fahrenheit that can be adjusted with the solid state temperature control. A hi/low switch controls the fan, and a moisture vent damper control opens the vent to release moisture from the cabinet. Operators can set a timer as high as 60 minutes to keep up with the cook time, and it sounds an audible alarm when time runs out. A white light lets the operator know the burners are cycling, while a red light means the burners are not igniting correctly.
With a stainless steel exterior, the unit is heavy duty for consistent use. Its durable porcelain enamel interior simplifies cleaning, while product is visible with the interior lights and double pane glass in the doors. Since the doors are independently operated, the interior is accessible, and insulation provides heat retention as well as structure. The Vulcan VC4GD full-size convection oven is heated with natural gas through the electric spark igniter.

Product Details





Durability and resistance to dents and scratches are provided by the stainless steel exterior
Corrosion-resistant porcelain enamel interior facilitates cleaning
Includes 5 nickel-plated racks with 11 positions
Structure is added with built-in insulation
Interior is accessible with the independently operated doors
Product is visible through the double pane glass in the doors
2 interior lights shine on product
Electric spark ignitor heats the unit
50,000 BTU

User-Friendly Control Panel





Solid state control governs the temperature
Temperature range: 150-500 degrees F
60-min. timer with an audible alarm keeps up with cook time
Vent is opened to release moisture with the moisture vent damper control
Unit is on when the amber light is illuminated
Burners cycle on and off when the white light is turned on
Red light means burners have failed to ignite
Hi/low switch controls the fan speed

Dimensions & Utilities





Interior: 29 in. W x 22 1/8 in. D x 20 in. H
Overall: 40 1/4 in. W x 41 1/8 in. D x 54 3/4 in. H
Powered by NG
7.7 A, 1/2 HP
120 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Specifications
Manufacturer
Vulcan

Base
Legs

Controls
Digital

Depth (in)
41.13

Door Construction
Metal with Window

Door Type
Independent

Gas Type
NG

Heat
Gas

Height (in)
54.75

Interior Construction
Stainless Steel

Number of Ovens
Single

Oven Interior Style
Standard Depth

Pans Per Deck
5

Product
Convection Ovens

Product Type
Cooking Equipment

Rating
Better

Series
VC4G Series

Size
Full Size

Special Features
Spark Ignition

Total BTU
50000

Type
Floor Model

Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Width (in)
40.25

Weight
497.00

Manufacturer: Vulcan
Base: Legs
Controls: Digital
Depth (in): 41.13
Door Construction: Metal with Window
Door Type: Independent
Gas Type: NG
Heat: Gas
Height (in): 54.75
Interior Construction: Stainless Steel
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: VC4G Series
Size: Full Size
Special Features: Spark Ignition
Total BTU: 50000
Type: Floor Model
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 40.25
Weight: 497.00
