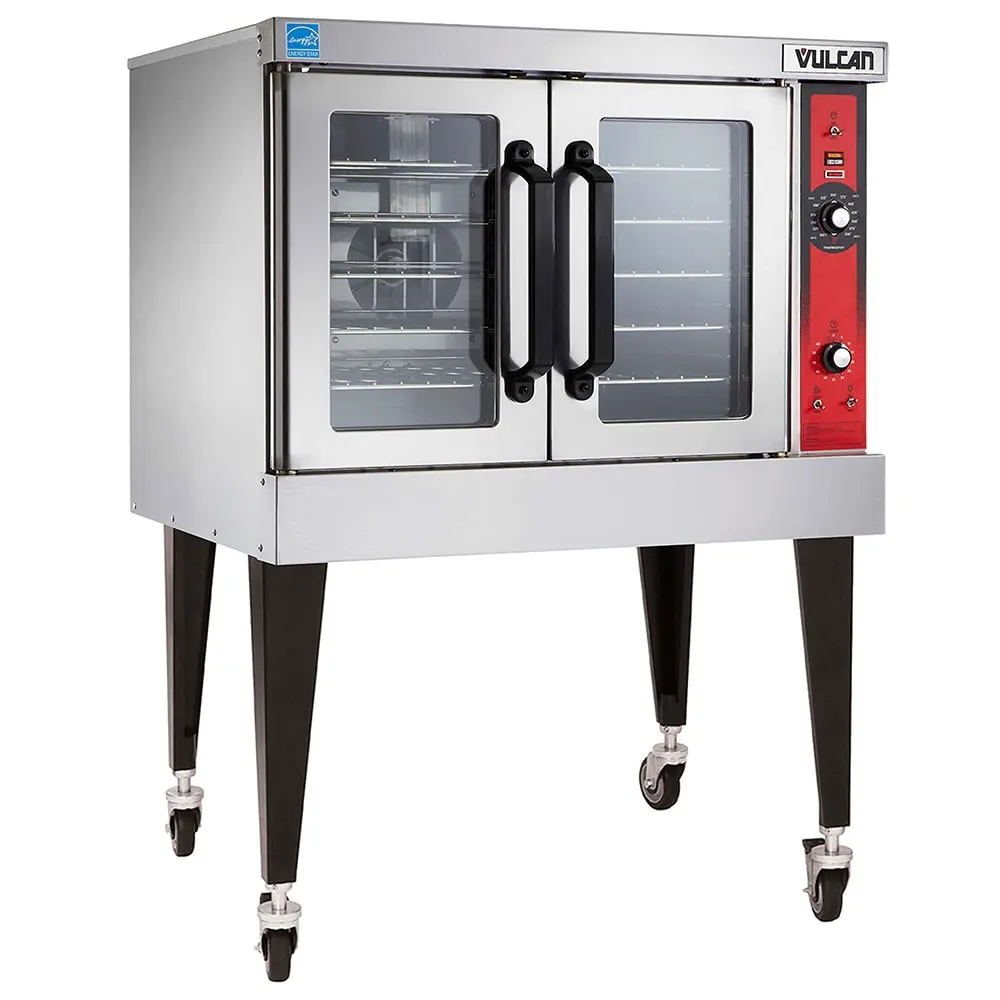

Vulcan VC5ED Single Full Size Electric Convection Oven - 12 1/2 Kw, 240v/3ph
Description
The Vulcan VC5ED single electric convection oven features solid-state controls that enable temperature adjustments from 150 to 500 degrees Fahrenheit. It has a 5-hour timer that counts down until food is ready, and its digital display shows how much time is left. To hold a variety of products, the oven has five nickel-plated racks that can be adjusted to 11 different positions. When ita€™s time to remove product from the cabinet, a switch provides a rapid cool off of the interior for safe retrieval.
To enable operators to monitor food while it cooks, the doors on the Vulcan VC5ED full-size convection oven are made of double-pane glass, and interior lights brighten the view. These doors open individually so employees can access one section of the cabinet at a time. If something goes wrong, on-board diagnostics inform users of the problem, eliminating guesswork when it comes to maintenance. The top, front, and sides of this unit are made of durable stainless steel.
Product Details
Operating temperature range: 150-500 degrees F
Solid-state controls with a digital display
5-hr. timer
5 oven racks adjustable in 11 positions
Racks are nickel plated
Interior light
Cools rapidly with a cool switch
Gentle bake mode
On-board diagnostics eliminate guesswork for maintenance
2 doors open individually

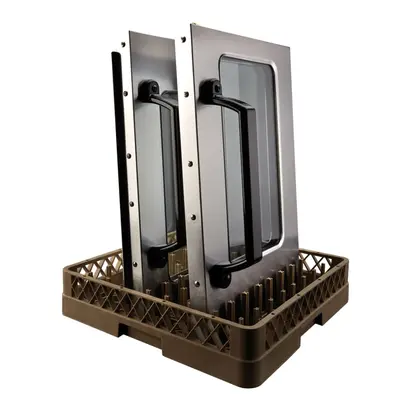

Doors are removable with double-pane windows
Porcelain and steel interior can be wiped clean
Top, front, and sides made of durable stainless steel
Sits on 23 3/4-in. painted legs
Product Features
Dimensions & Utilities
Interior: 29 in. W x 22 1/8 in. D x 20 in. H
Overall: 40 1/10 in. W x 40 1/8 in. D x 54 in. H
12.5 kW, 1/2 HP
208 V/60 Hz/3 ph
Specifications
Manufacturer
Vulcan
Base
Legs
Controls
Manual
Depth (in)
40
Door Construction
Metal with Window
Door Type
Independent
Heat
Electric
Height (in)
54.75
Hertz
60
Interior Construction
Porcelain
kW
12.5
Number of Ovens
Single
Oven Interior Style
Standard Depth
Pans Per Deck
5
Phase
3
Product
Convection Ovens
Product Type
Cooking Equipment
Rating
Better
Series
VC5E Series
Size
Full Size
Type
Floor Model
Voltage
240
Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in)
40.25
Weight
337.00
Specifications
Manufacturer: Vulcan
Base: Legs
Controls: Manual
Depth (in): 40
Door Construction: Metal with Window
Door Type: Independent
Heat: Electric
Height (in): 54.75
Hertz: 60
Interior Construction: Porcelain
kW: 12.5
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Phase: 3
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: VC5E Series
Size: Full Size
Type: Floor Model
Voltage: 240
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 40.25
Weight: 337.00
