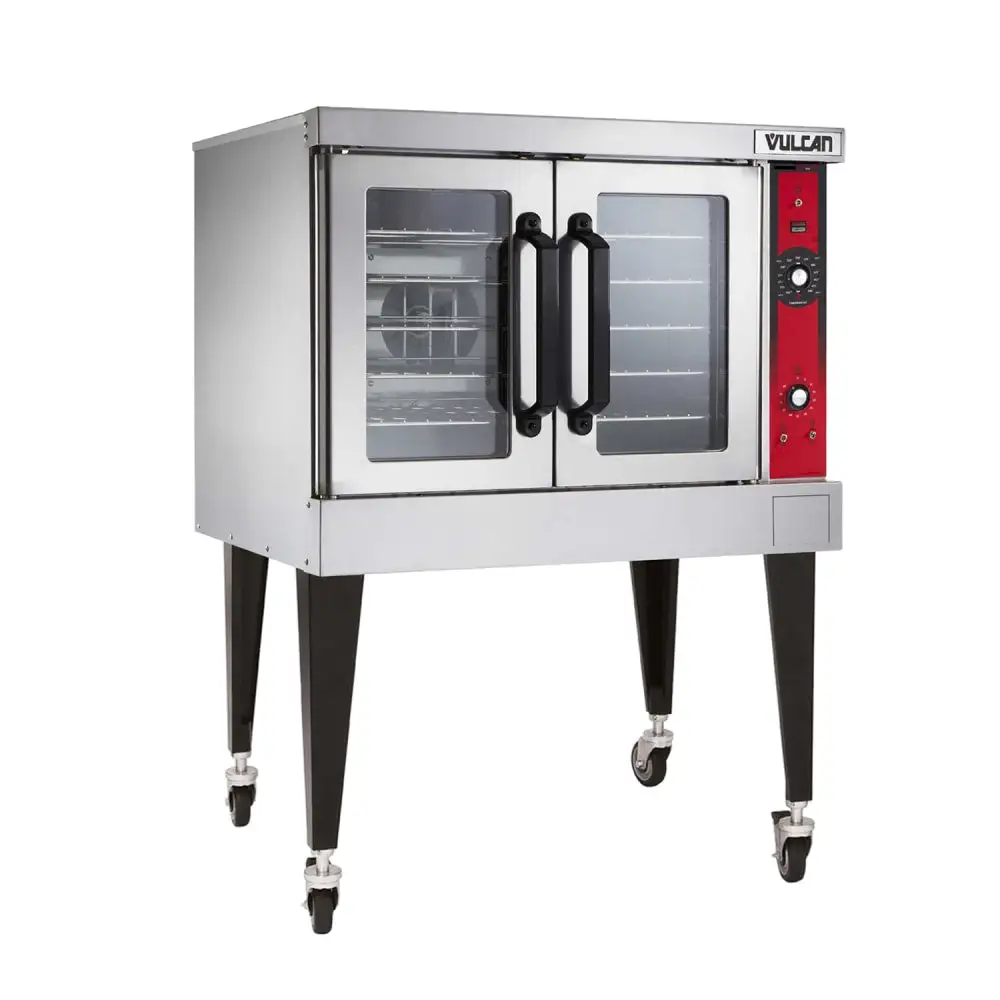

Vulcan VC6ED Bakery Depth Single Full Size Electric Convection Oven - 12.5 Kw, 208v/3ph

The Vulcan VC6ED single-deck convection oven has a deeper design than other Vulcan models, making it ideal for bakeries. Featuring a porcelain enamel interior measuring 29 inches wide by 26 1/8 inches deep by 20 inches high, this oven is equipped with five nickel-plated oven racks that can be adjusted to 11 different positions. Ita€™s heated with electric solid-sheath elements, and a two-speed, 1/2-horsepower oven blower motor helps move air around for even heating. The unita€™s top, rear, sides, bottom, and doors have a built-in, non-sagging insulation, which helps retain heat for back-to-back use. Users can adjust temperatures from 150 to 500 degrees Fahrenheit with solid-state controls, and a 60-minute timer audibly alerts staff when food is ready.
To withstand wear from loading product and opening and closing its doors, the Vulcan VC6ED convection ovena€™s front, sides, and top are made of stainless steel. Its two stainless steel doors open separately, reducing heat loss and improving direct access to product. Users can also peer through the doorsa€™ double-pane windows to manage the cooking process. For stabilization, this 40-inch-wide by 46 1/4-inch-deep by 54 3/4-inch-high unit is supported by 23 3/4-inch-tall painted legs.

Product Details





Part of the VC6E series
Bakery-depth design with 1 oven
Stainless steel front, top, and sides
5 nickel-plated oven racks
11-position rack guides and positive rack stops
Uses electric solid-sheath elements for heating
Temperature is adjustable from 150-550 degrees F with solid-state temperature controls
60-minute timer with audible alarm
2-speed, 1/2-horsepower oven blower motor
Top, rear, sides, bottom, and doors have built-in, non-sagging insulation
2 independently operated stainless steel doors
2 double-pane windows (1 per door)
Oven interior has porcelain enamel construction
Oven cool switch drops temperature rapidly
Moisture vent prevents dampness
2 interior oven lights
23 3/4-in. painted legs
Rear clearance: 2 in.
Right side clearance: 4 in.
Left side clearance: 1 in.

Dimensions & Utilities





Oven racks: (5) 28 1/4 in. W x 24 1/2 in. D
Oven interior: 29 in. W x 26 1/8 in. W x 20 in. H
Overall: 40 in. W x 46 1/4 in. D x 54 3/4 in. H
33-35 A, 12.5 kW, 1/2 HP
208 V/60 Hz/3 ph
Specifications
Manufacturer
Vulcan

Base
Legs

Controls
Manual

Depth (in)
45.13

Door Construction
Metal with Window

Door Type
Independent

Heat
Electric

Height (in)
54.75

Hertz
60

Interior Construction
Porcelain

kW
12.5

Number of Ovens
Single

Oven Interior Style
Deep Depth

Pans Per Deck
5

Phase
3

Product
Convection Ovens

Product Type
Cooking Equipment

Rating
Best

Series
VC6E Series

Size
Full Size

Special Features
Deep Depth

Type
Floor Model

Voltage
208

Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Width (in)
40.25

Weight
463.00

Manufacturer: Vulcan
Base: Legs
Controls: Manual
Depth (in): 45.13
Door Construction: Metal with Window
Door Type: Independent
Heat: Electric
Height (in): 54.75
Hertz: 60
Interior Construction: Porcelain
kW: 12.5
Number of Ovens: Single
Oven Interior Style: Deep Depth
Pans Per Deck: 5
Phase: 3
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Best
Series: VC6E Series
Size: Full Size
Special Features: Deep Depth
Type: Floor Model
Voltage: 208
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 40.25
Weight: 463.00
