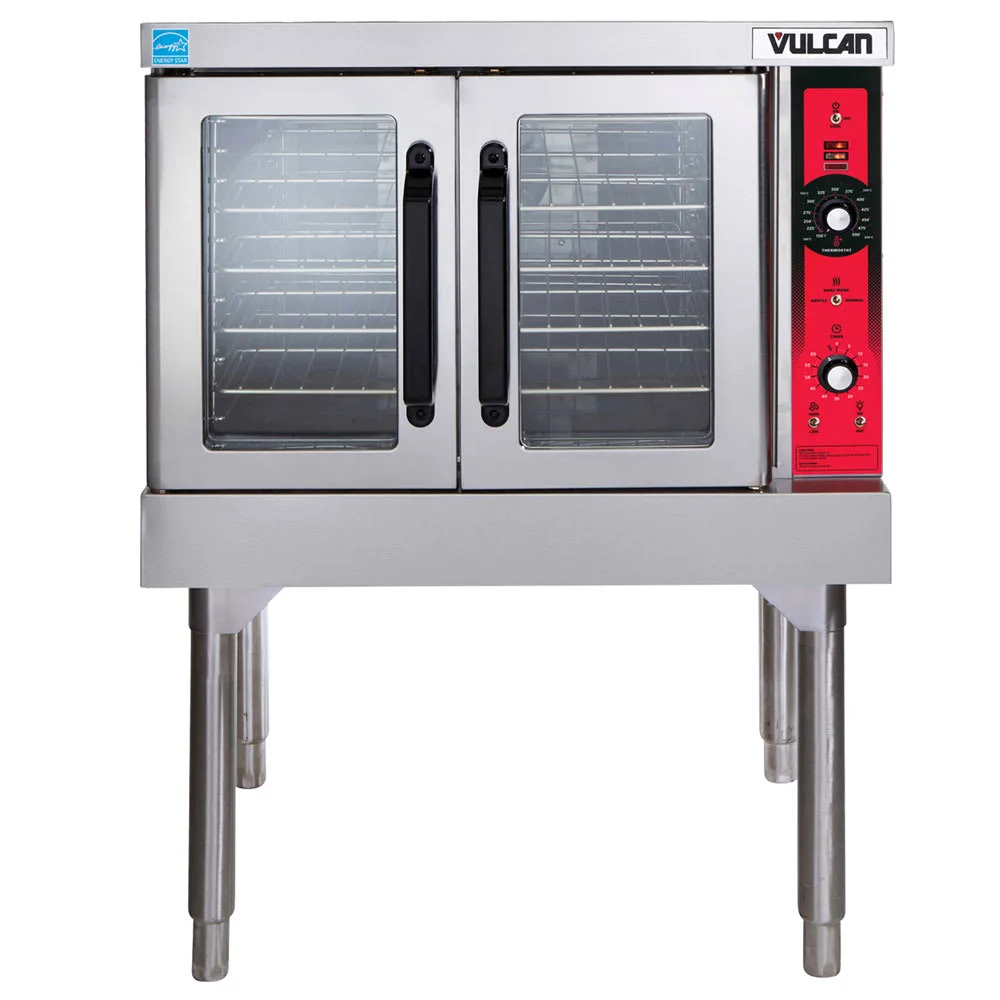

Vulcan SG4 Single Full Size Liquid Propane Gas Convection Oven - 60,000 BTU

The Vulcan SG4 gas convection oven quickly and consistently cooks food, evenly baking multiple racks of cookies, or thoroughly roasting and browning meat. Cook times are reduced by as much as 20 percent compared to conventional ovens. Product is warmed and rethermalized by circulating hot air within the cabinet instead of using radiant heat.
This oven has a 60,000 BTU per hour burner, as well as a selector switch for the gentle bake mode. The solid-state temperature controls can be adjusted from 150 to 500 degrees Fahrenheit. There is an audible alarm on the 60-minute timer, an electronic spark igniter, and an oven cool switch that provides rapid cool down. Double-pane windows on the independently operated stainless steel doors ensure users can monitor the cooking food. The sides, front, and top of the unit are constructed of heavy-duty, corrosion-resistant stainless steel.
The Vulcan SG4 oven has painted legs that elevate the unit off the counter. The interior cavity measures 29 inches wide by 22 1/8 inches deep by 20 inches high and features a slick porcelain lining that reduces food and bacteria accumulation while expediting cleaning. The unit has 11 rack positions for five nickel-plated oven racks. Non-sag insulation has been applied to the top, rear, sides, bottom, and doors.

Product Details





Selector switch for gentle bake mode
Solid-state temperature controls
Temperature range: 150-500 degrees F
Audible alarm on 60-min. timer notifies operators
Oven cool switch produces rapid cool down
Spark igniter is electronic
Double-pane windows on independently operated stainless steel doors
Stainless steel sides, front, and top
Legs are painted
Enameled steel is porcelain coated
11 rack positions for 5 nickel-plated oven racks
Safety solenoid system and combination gas pressure regulator with 3/4-inch rear gas connection
60,000 BTU

Dimensions & Utilities





Racks: 28 1/4 in. W x 20 1/2 in. D
Interior: 29 in. W x 22 1/8 in. D x 20 in. H
Overall: 40 1/4 in. W x 41 1/8 in. D x 54 3/4 in. H
Powered by LP gas
7.7 A, 1/2 HP
120 V/60 Hz/1 ph, 6-ft. cord with a plug
Specifications
Manufacturer
Vulcan

Base
Legs

Controls
Digital

Depth (in)
41.13

Door Construction
Solid/Glass

Door Type
Independent

Gas Type
LP

Heat
Gas

Height (in)
54.75

Interior Construction
Porcelain

Number of Ovens
Single

Oven Interior Style
Standard Depth

Pans Per Deck
5

Product
Convection Ovens

Product Type
Cooking Equipment

Rating
Better

Series
SG4 Series

Size
Full Size

Special Features
Spark Ignition

Total BTU
30000

Type
Floor Model

Warranty
1-year Limited Parts & Labor

Width (in)
40.25

Weight
500.00

Manufacturer: Vulcan
Base: Legs
Controls: Digital
Depth (in): 41.13
Door Construction: Solid/Glass
Door Type: Independent
Gas Type: LP
Heat: Gas
Height (in): 54.75
Interior Construction: Porcelain
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: SG4 Series
Size: Full Size
Special Features: Spark Ignition
Total BTU: 30000
Type: Floor Model
Warranty: 1-year Limited Parts & Labor
Width (in): 40.25
Weight: 500.00
