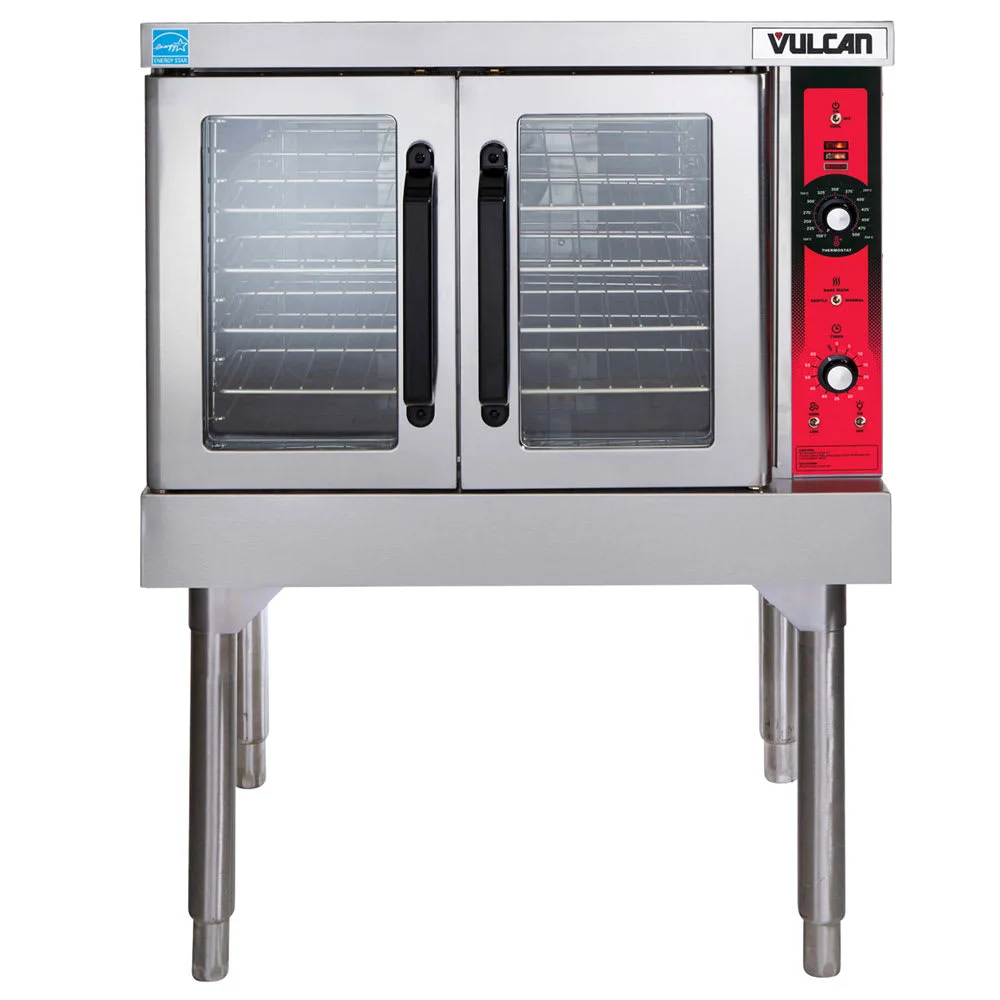

Vulcan SG4 Single Full Size Natural Gas Convection Oven - 60,000 BTU

The Vulcan SG4 single section gas convection oven has a stainless steel construction on the front, sides, and top for rust and scratch resistance and increased durability. Its stainless steel doors are equipped with double-pane windows that are independently operated, opening one at a time. Non-sag insulation is applied to the doors, bottom, sides, rear, and top. The oven interior measures 29 inches wide by 22 1/8 inches deep by 20 inches tall, and its porcelain enamel coating resists clinging product to facilitate cleaning.
Two interior lights display five nickel-plated oven racks measuring 28 1/4 inches by 20 1/2 inches. The racks sit on an 11-position rack guide so they can be adjusted to suit different applications. Equipped with one 60,000 BTU burner, this unit has a gentle bake selector switch with an electronic spark igniter. It is furnished with a two-speed, 1/2-horsepower oven blower-motor.
This convection oven can consistently and quickly cook multiple items at once, after which the oven cool switch provides rapid cool down. Cook time is reduced by 20 percent when compared to conventional ovens because the Vulcan SG4 oven circulates hot air within the cabinet rather than using radiant heat. The oven can also warm, roast, and rethermalize. This unit can produce a wide range of menu items faster and with less energy and labor than most other ovens.

Product Details





Stainless steel on front, top, and sides
23 3/4-in. painted legs elevate the baking chamber to a comfortable working height
Independently operated stainless steel doors are equipped with double-pane windows
Non-sag insulation applied to the rear, top, sides, bottom, and doors
Steel oven interior has a porcelain enamel finish for swift cleaning
2 oven lights located in the interior
5 nickel-plated oven racks
11-position nickel-plated rack guides and positive rack stops
Selector switch has a gentle bake option
Electronic spark igniter
2 speed 1/2 HP oven blower-motor
Oven cool switch rapidly cools unit
60,000 BTU

Product Features

Dimensions & Utilities





Racks: 28 1/4 in. W x 20 1/2 in. D
Interior: 29 in. W x 22 1/8 in. D x 20 in. H
Overall: 40 1/4 in. W x 41 1/8 in. D x 54 3/4 in. H
Powered by natural gas
7.7 A, 1/2 HP
120 V/60 Hz/1 ph, 6-ft. cord with a plug
Specifications
Manufacturer
Vulcan

Base
Legs

Controls
Digital

Depth (in)
41.13

Door Construction
Solid/Glass

Door Type
Independent

Gas Type
NG

Heat
Gas

Height (in)
54.75

Interior Construction
Porcelain

Number of Ovens
Single

Oven Interior Style
Standard Depth

Pans Per Deck
5

Product
Convection Ovens

Product Type
Cooking Equipment

Rating
Better

Series
SG4 Series

Size
Full Size

Special Features
Spark Ignition

Total BTU
30000

Type
Floor Model

Warranty
1-year Limited Parts & Labor

Width (in)
40.25

Weight
500.00

Manufacturer: Vulcan
Base: Legs
Controls: Digital
Depth (in): 41.13
Door Construction: Solid/Glass
Door Type: Independent
Gas Type: NG
Heat: Gas
Height (in): 54.75
Interior Construction: Porcelain
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: SG4 Series
Size: Full Size
Special Features: Spark Ignition
Total BTU: 30000
Type: Floor Model
Warranty: 1-year Limited Parts & Labor
Width (in): 40.25
Weight: 500.00
