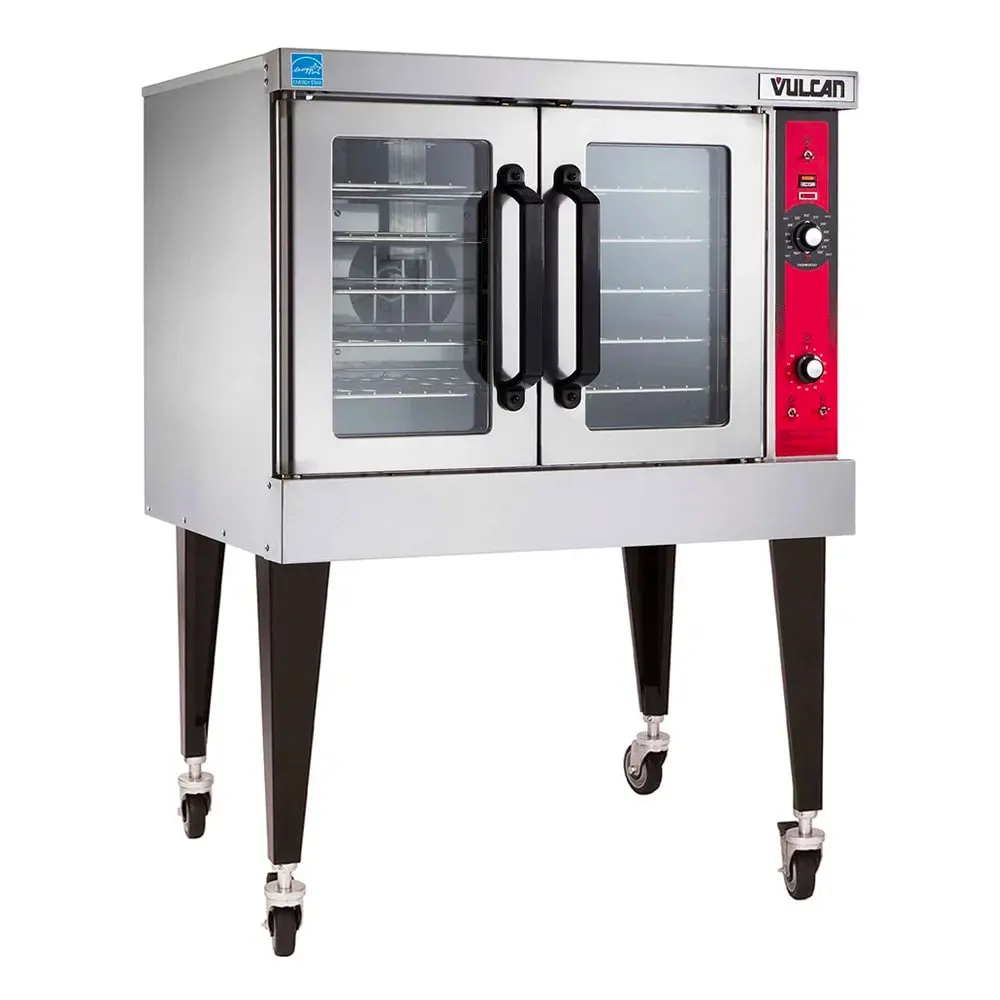

Vulcan VC4ED Single Full Size Electric Convection Oven - 12.5 Kw, 240v/1ph
Description
The Vulcan VC4ED full-size convection oven comes with a user-friendly control panel. An amber light shows when the unit is on or off, while a white heat light lets the operator know if the heating elements are on. A large knob enables the user to adjust the temperature from 150 to 500 degrees Fahrenheit, while air velocity can be set to high or low with the fan control knob. When preparing moist products, the moisture vent damper control can open the vent to release excess humidity.
There are five nickel-plate racks that adjust to 11 different positions, and the corrosion-resistant porcelain enamel simplifies cleaning. Made of stainless steel, the exterior is heavy duty for frequent use. Insulation is built into the unit for structure and to retain heat. Independently controlled doors have double pane glass for visibility into the cabinet without releasing warm air, and the Vulcan VC4ED electric convection oven uses solid sheath elements to heat the unit.
Product Details
Made of durable stainless steel
Porcelain enamel interior resists corrosion
5 nickel-plated racks can be placed in 11 different positions
Insulation keeps heat in the cabinet
Independently operated doors
Double pane glass in the doors enables operators to see product without releasing heat
Interior lights shine on product for more visibility
Electric solid sheath elements heat the unit
240 V/60 Hz/1 ph, 12.5 kW, 1/2 HP
Interior dimensions: 29 in. W x 22 1/8 in. D x 20 in. H
Overall dimensions: 40 1/4 in. W x 41 1/8 in. D x 54 3/4 in. H
User-Friendly Control Panel
Temperature range: 150-500 degrees F
Solid state control adjusts the temperature
60-min. timer has an audible alarm so users can complete other tasks during cooking.
Moisture vent damper control opens and closes to release moisture
Amber light shows when the unit is on or off
White heat light shows when the heating elements are on or off
Fan control can be turned to high or low to control the velocity of air in the unit
Specifications
Manufacturer
Vulcan
Base
Legs
Controls
Digital
Depth (in)
41.13
Door Construction
Metal with Window
Door Type
Independent
Heat
Electric
Height (in)
54.75
Hertz
60
Interior Construction
Stainless Steel
kW
12.5
Number of Ovens
Single
Oven Interior Style
Standard Depth
Pans Per Deck
5
Phase
1
Product
Convection Ovens
Product Type
Cooking Equipment
Rating
Better
Series
VC4E Series
Size
Full Size
Type
Floor Model
Voltage
240
Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in)
40.25
Weight
450.00
Specifications
Manufacturer: Vulcan
Base: Legs
Controls: Digital
Depth (in): 41.13
Door Construction: Metal with Window
Door Type: Independent
Heat: Electric
Height (in): 54.75
Hertz: 60
Interior Construction: Stainless Steel
kW: 12.5
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Phase: 1
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: VC4E Series
Size: Full Size
Type: Floor Model
Voltage: 240
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 40.25
Weight: 450.00
