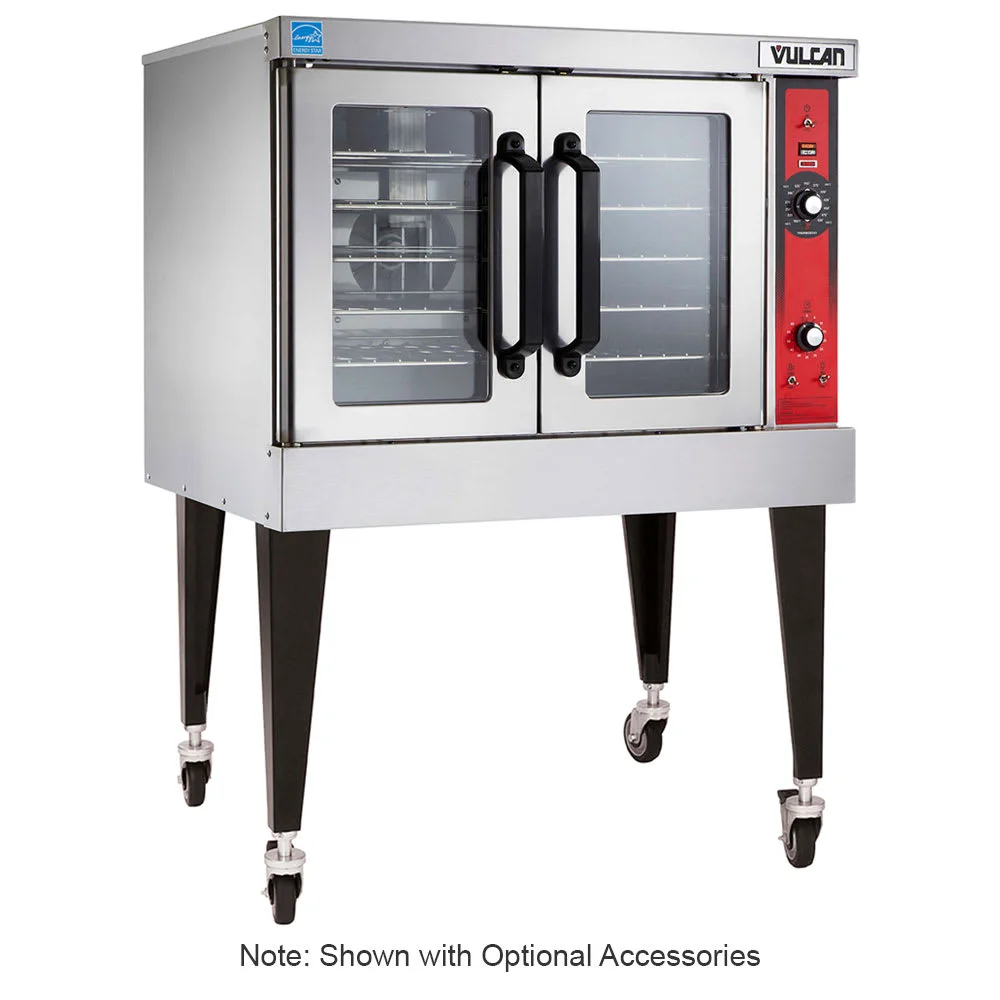

Vulcan VC4ED Single Full Size Electric Convection Oven - 12.5 Kw, 240v/3ph
Description
The Vulcan VC4ED electric convection oven is ideal for baking pastries, cooking meats, and finishing dishes. Adjustable with the control knob, it has a temperature range of 150 to 500 degrees Fahrenheit. A 60-minute timer is included to help staff keep track of the cooking time, and an audible alarm sounds when the timer runs down. An amber light illuminates when the unit is on, and a white light shines when the heating elements are on. Air velocity is controllable with a hi/low switch.
Pans can sit on five 28 1/4-inch-by-20 1/2-inch nickel-plated racks with 11 different positions. Constructed of porcelain, the interior of the cabinet eases cleaning, while its stainless steel exterior is resistant to corrosion, dents, and scratches. The Vulcan VC4ED full-size convection oven has independently operated doors with double pane glass so staff members can see in without opening the doors. Two interior lights shine on product for visibility.
Product Details
Resists scratches, dents, and corrosion with its stainless steel construction
Porcelain enamel interior facilitates cleaning
(5) 28 1/4-in. x 20 1/2-in. nickel-plated racks adjust to 11 different positions
Insulation is built into the cabinet to retain heat
Independently operated doors ease opening
Product is visible without opening the doors because of double pane windows
2 interior lights shine on products
Heat is provided by the electronic solid sheath elements
240 V/60 Hz/3 ph, 12.5 kW, 1/2 HP
Interior dimensions: 29 in. W x 22 1/8 in. D x 20 in. H
Overall dimensions: 40 1/4 in. W x 41 1/8 in. D x 54 3/4 in. H
User-Friendly Control Panel
Temperature range: 150-500 degrees with the solid state temperature control
60-min. timer sounds an audible alarm when the cycle is finished
Moisture is released from the cavities through the vent damper control
Amber light highlights whether the unit is on or off
Heating elements are on if the white heat light is illuminated
Air velocity in the cabinet is controlled by the hi/low fan control
Specifications
Manufacturer
Vulcan
Base
Legs
Controls
Digital
Depth (in)
41.13
Door Construction
Metal with Window
Door Type
Independent
Heat
Electric
Height (in)
54.75
Hertz
60
Interior Construction
Stainless Steel
kW
12.5
Number of Ovens
Single
Oven Interior Style
Standard Depth
Pans Per Deck
5
Phase
3
Product
Convection Ovens
Product Type
Cooking Equipment
Rating
Better
Series
VC4E Series
Size
Full Size
Type
Floor Model
Voltage
240
Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in)
40.25
Weight
450.00
Specifications
Manufacturer: Vulcan
Base: Legs
Controls: Digital
Depth (in): 41.13
Door Construction: Metal with Window
Door Type: Independent
Heat: Electric
Height (in): 54.75
Hertz: 60
Interior Construction: Stainless Steel
kW: 12.5
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Phase: 3
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: VC4E Series
Size: Full Size
Type: Floor Model
Voltage: 240
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 40.25
Weight: 450.00
