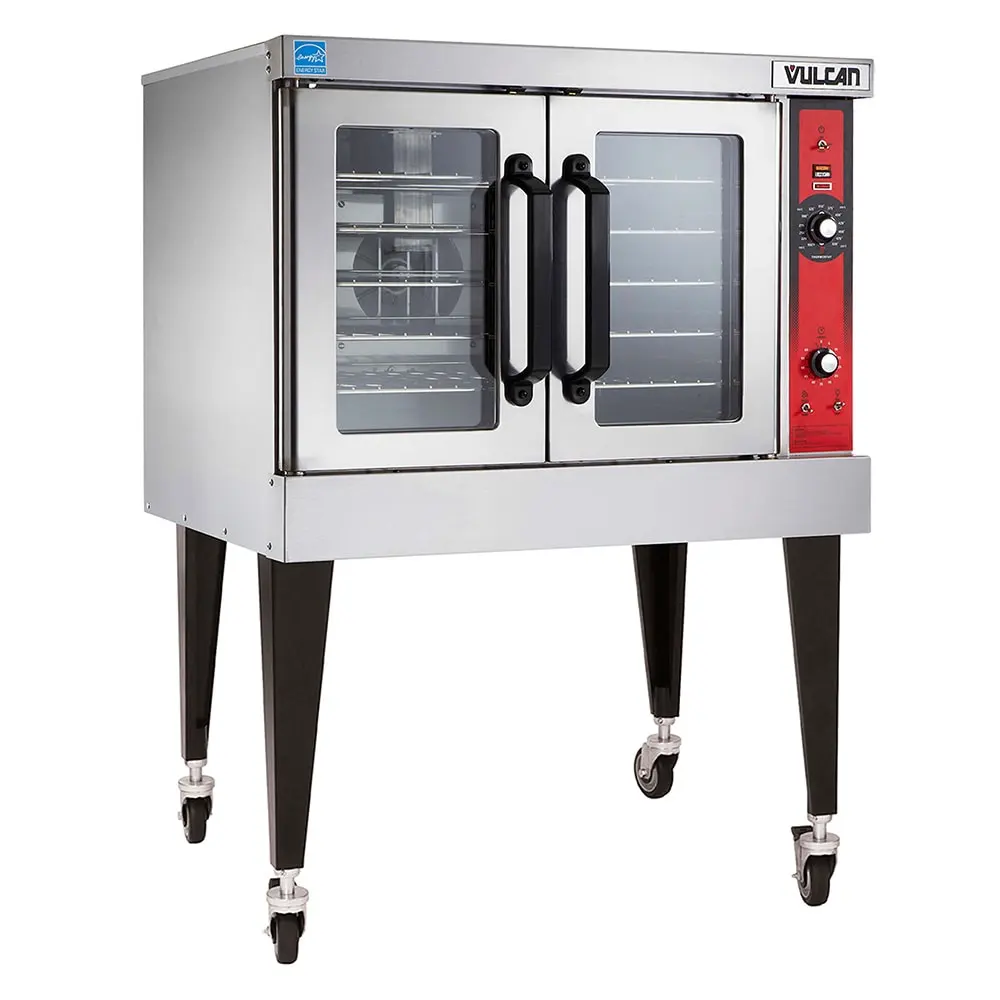

Vulcan VC5ED Single Full Size Electric Convection Oven - 12 1/2 Kw, 208v/3ph
Description
The Vulcan VC5ED full-size convection oven has an interior made of steel with porcelain enamel, which reduces bacteria and food buildup. It comes with five oven racksa€”nickel plated for corrosion resistancea€”and 11-position, nickel-plated rack guides with positive rack stops. Lighting in the cavity increases the visibility of baking product. Electric, solid-sheathed elements provide heat and the blower motor with two speeds circulates heated air throughout the unit. This oven holds temperatures between 150 to 500 degrees Fahrenheit, and the solid-state temperature dial controls with an LED display enable the user to adjust the temperature accurately.
The Vulcan VC5ED convection oven has stainless steel front, sides, and top for durability and rust resistance. The bottom, sides, rear, and top are insulated, preventing warm air from seeping out. The independently operated, stainless steel doors can be removed to simplify cleaning. These doors feature double-pane windows interior visibility. To prevent food from getting soggy, the unit has a moisture vent.
Product Details
Stainless steel front, sides, and top
Bottom, sides, rear, and top are insulated to maintain temperatures

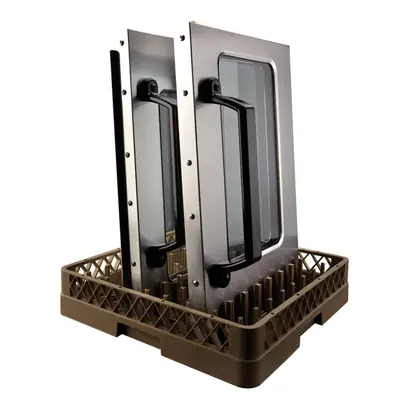

Independently operated, stainless steel doors are removable for cleaning
Doors have double-pane windows for viewing the interior
Interior light increases visibility
Interior constructed of steel with porcelain enamel
Includes 5 oven racks that are nickel plated
11-position, nickel-plated rack guides feature positive rack stops
Electric, solid sheath elements heat the oven
Oven blower motor has 2 speeds
Solid-state temperature dial controls and a digital display
Temperature range: 150-500 degrees F
Oven cool switch initiates rapid cool down
Moisture vent prevents excess humidity
5-hr. timer with audible alarms to alert the user
Dimensions & Utilities
Interior: 29 in. W x 22 1/8 in. D x 20 in. H
Overall: 40 1/10 in. W x 40 in. D x 54 in. H
33-35 A, 12.5 kW, 1/2 HP
208 V/60 Hz/3 ph
Specifications
Manufacturer
Vulcan
Base
Legs
Controls
Manual
Depth (in)
40
Door Type
Independent
Heat
Electric
Height (in)
54.75
Hertz
60
kW
12.5
Number of Ovens
Single
Oven Interior Style
Standard Depth
Pans Per Deck
5
Phase
3
Product
Convection Ovens
Product Type
Cooking Equipment
Rating
Better
Series
VC5E Series
Size
Full Size
Voltage
208
Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in)
40.25
Weight
337.00
Specifications
Manufacturer: Vulcan
Base: Legs
Controls: Manual
Depth (in): 40
Door Type: Independent
Heat: Electric
Height (in): 54.75
Hertz: 60
kW: 12.5
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Phase: 3
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: VC5E Series
Size: Full Size
Voltage: 208
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 40.25
Weight: 337.00
