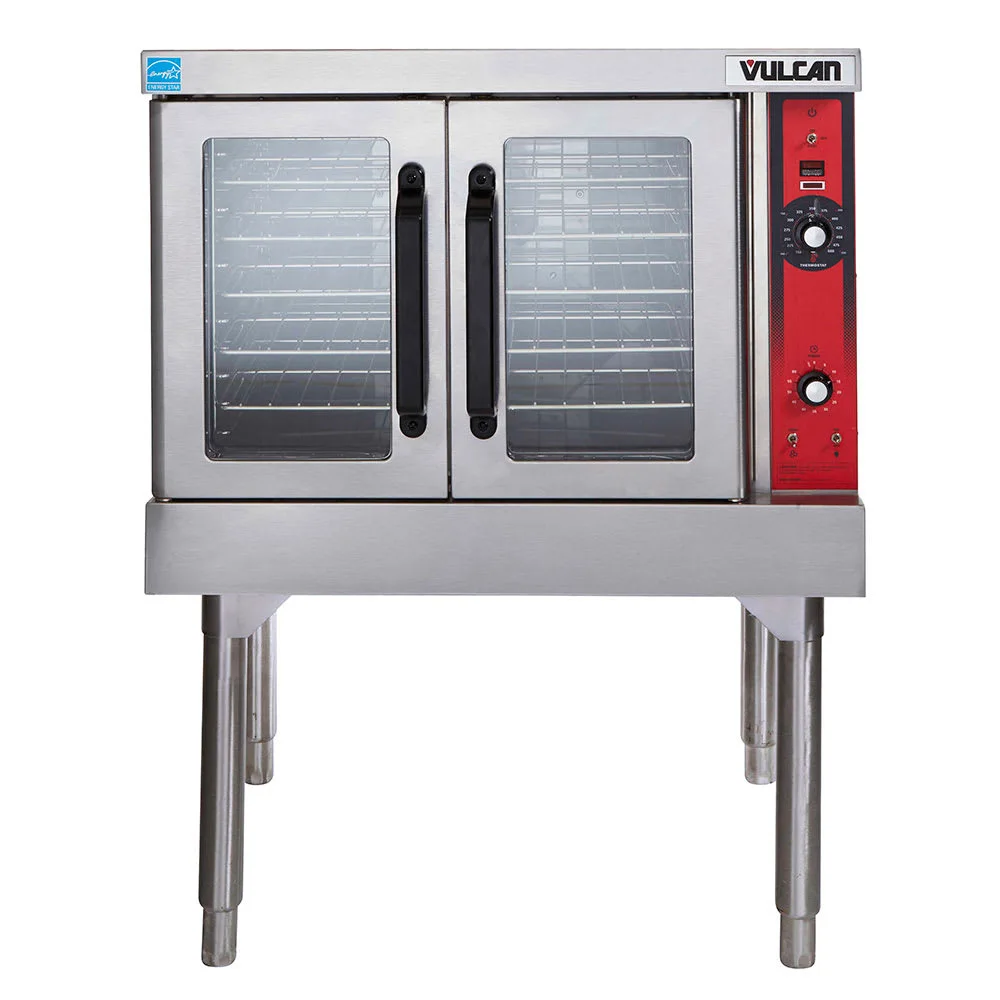

Vulcan VC4GD Single Full Size Liquid Propane Gas Convection Oven - 50,000 BTU
Description
The Vulcan VC4GD gas convection oven is heated by propane gas. It has an electric spark igniter and built-in insulation to retain heat. Designed for consistent use, the exterior is constructed of stainless steel. Its interior is porcelain enamel for corrosion resistance and durability, and independently operated doors provide access to the interior. Two lights inside the unit shine on products to enhance visibility.
The control panel on the Vulcan VC4GD full-size convection oven includes a temperature control with a range of 150 to 500 degrees Fahrenheit. Its two-speed fan is controlled by a hi/low switch, and moisture can be released by the moisture vent damper control. An amber light turns on when the master switch is turned on, and a white light alerts that the burners are cycling on and off. If a red light shines, the burners are not igniting properly.
Product Details
Propane heated
Exterior is stainless steel for durability and strength
Interior is made of steel with porcelain enamel for strength and corrosion resistance
5 nickel-plated racks measure 28 1/4 in. x 20 1/2 in. and can be changed to 11 different positions
Heat is kept inside the unit with insulation
Doors are independently operated
Double pane windows provide visibility into the cabinet
Product can be seen with 2 interior lights
Electric spark ignitor simplifies operation
50,000 BTU
120 V/60 Hz/1 ph, 7.7 A, 1/2 HP, 6-ft. cord with a NEMA 5-15P plug
Interior dimensions: 29 in. W x 22 1/8 in. D x 20. In. H
Overall dimensions: 40 1/4 in. W x 41 1/8 in. D x 54 3/4 in. H
User-Friendly Control Panel
Temperature range: 150-500 degrees F with the solid state temperature control
Audible alarm for the 60-min. timer goes off when the cycle is completed
Moisture vent damper control opens the vent to release moisture
Amber light shows the unit is on
White light alerts the operator that the burners are cycling on and off
Red light turns on if the burners fail to ignite
Fan speed is controlled with a hi/low switch
Specifications
Manufacturer
Vulcan
Base
Legs
Controls
Digital
Depth (in)
41.13
Door Construction
Metal with Window
Door Type
Independent
Gas Type
LP
Heat
Gas
Height (in)
54.75
Interior Construction
Stainless Steel
Number of Ovens
Single
Oven Interior Style
Standard Depth
Pans Per Deck
5
Product
Convection Ovens
Product Type
Cooking Equipment
Rating
Better
Series
VC4G Series
Size
Full Size
Special Features
Spark Ignition
Total BTU
50000
Type
Floor Model
Warranty
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in)
40.25
Weight
497.00
Specifications
Manufacturer: Vulcan
Base: Legs
Controls: Digital
Depth (in): 41.13
Door Construction: Metal with Window
Door Type: Independent
Gas Type: LP
Heat: Gas
Height (in): 54.75
Interior Construction: Stainless Steel
Number of Ovens: Single
Oven Interior Style: Standard Depth
Pans Per Deck: 5
Product: Convection Ovens
Product Type: Cooking Equipment
Rating: Better
Series: VC4G Series
Size: Full Size
Special Features: Spark Ignition
Total BTU: 50000
Type: Floor Model
Warranty: 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Width (in): 40.25
Weight: 497.00
