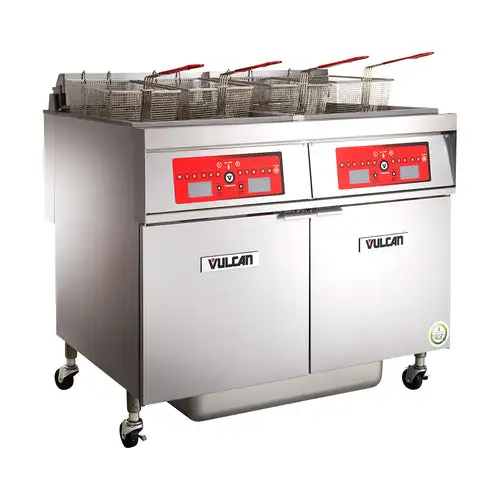

Vulcan 2ER50AF Electric Fryer - (2) 50 Lb Vats, Floor Model, 208v/3ph
Overview
Description
The Vulcan 2ER50AF electric fryer features a solid-state analog knob control system, ensuring precise temperature adjustments from 200 to 390 degrees Fahrenheit within +/- 2 degrees. This floor model fryer includes two 50-pound vats, offering a total oil capacity of 100 pounds to support high-demand frying applications. Multiple fat melt modes assist in maintaining optimal oil temperature, while low-watt density ribbon-style heating elements enhance heat recovery and efficiency.
Designed for durability, the Vulcan 2ER50AF electric fryer is constructed of a stainless steel cabinet and a 16-gauge stainless steel fry tank, providing lasting performance in busy kitchens. A 1 1/4-inch full-port ball-type drain valve facilitates smooth oil removal, and the drain valve interlock switch automatically shuts off heating elements when oil is drained or when the heating elements are lifted during maintenance. The Boil-Out ByPass® system simplifies fryer cleaning by removing boil-out solution without direct contact with the drain manifold, filter pan, or motor/pump. The KleenScreen PLUS® filtration system helps extend oil life by capturing food particles, and a seamless 18-gauge stainless steel filter pan supports effective filtration. The fryer stands on four 6-inch adjustable legs for stability and height flexibility.
Product Details
(2) 50-pound vats
100-lb. total oil capacity
Solid-state analog knob control
Temperature range: 200-390 degrees F
Multiple fat melt modes
KleenScreen PLUS filtration system
Boil-Out ByPass system
1 1/4-in. full-port ball-type drain valve
Drain valve interlock switch
Low-watt density ribbon-style heating elements
16-ga. stainless steel fry tank
Seamless 18-ga. stainless steel filter pan
Stainless steel cabinet
2 twin fry baskets with plastic-coated handles
(4) 6-in. adjustable legs
Dimensions & Utilities
31 in. W x 34 3/8 in. D x 39 7/16 in. H
17 kW
208 V/60 Hz/3 ph
Product Features
Specifications
Manufacturer
Vulcan
Capacity (lbs)
50
Heat
Electric
Hertz
60
kW
17
Number of Fry Pots
2
Oil Capacity (lb)
100
Oil Capacity/Fryer (lb)
50
Phase
3
Product
Electric Fryers
Product Type
Cooking Equipment
Rating
Best
Series
2ER50 Series
Type
Floor Model
Voltage
208
Warranty
1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)
31
Weight
530.00
Specifications
Manufacturer: Vulcan
Capacity (lbs): 50
Heat: Electric
Hertz: 60
kW: 17
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Phase: 3
Product: Electric Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 2ER50 Series
Type: Floor Model
Voltage: 208
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 530.00
