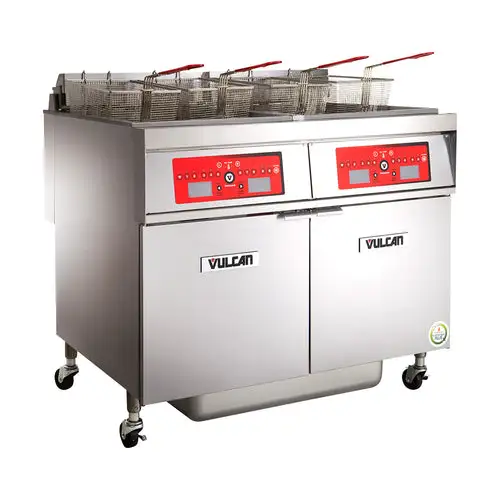

Vulcan 2ER50DF Electric Fryer - (2) 50 Lb Vats, Floor Model, 208v/3ph
Overview
Description
The Vulcan 2ER50DF electric fryer is built with a 1 1/4-inch full-port ball-type drain valve, allowing smooth and controlled oil removal for streamlined maintenance. This floor model unit includes two 50-pound vats, offering a total oil capacity of 100 pounds to support high-volume frying. Solid-state digital controls provide precise temperature adjustments from 200 to 390 degrees Fahrenheit within +/- 2 degrees, while multiple fat melt modes ensure efficient oil heating. Low-watt density ribbon-style heating elements enhance heat distribution and speed up recovery times.
Designed with KleenScreen PLUS® filtration, the Vulcan 2ER50DF fryer extends oil life by capturing food debris and reducing waste. The Boil-Out ByPass® system enables operators to remove boil-out solution without direct contact with the drain manifold, filter pan, or motor/pump, simplifying cleaning procedures. A seamless 18-gauge stainless steel filter pan ensures effective filtration, while a high-limit control system provides an added layer of safety by reducing overheating. The 16-gauge stainless steel fry tank and stainless steel cabinet contribute to lasting durability in busy commercial kitchens. The fryer stands on four 6-inch adjustable legs, allowing stability and flexibility in kitchen layouts.
Product Details
(2) 50-pound vats
100-lb. total oil capacity
16-ga. stainless steel fry tank
Seamless 18-ga. stainless steel filter pan
Solid-state digital temperature controls
Temperature range: 200-390 degrees F
Multiple fat melt modes
Fast heat recovery
2 countdown timers
KleenScreen PLUS filtration system
Boil-Out ByPass system
1 1/4-in. full-port ball-type drain valve
Drain valve interlock switch
Low-watt density ribbon-style heating elements
High-limit control system
Stainless steel cabinet
2 twin fry baskets with plastic-coated handles
(4) 6-inch adjustable legs
Dimensions & Utilities
31 in. W x 34 3/8 in. D x 39 7/16 in. H
17 kW
208 V/60 Hz/3 ph
Product Features
Specifications
Manufacturer
Vulcan
Capacity (lbs)
50
Heat
Electric
Hertz
60
kW
17
Number of Fry Pots
2
Oil Capacity (lb)
100
Oil Capacity/Fryer (lb)
50
Phase
3
Product
Electric Fryers
Product Type
Cooking Equipment
Rating
Best
Series
2ER50 Series
Type
Floor Model
Voltage
208
Warranty
1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)
31
Weight
530.00
Specifications
Manufacturer: Vulcan
Capacity (lbs): 50
Heat: Electric
Hertz: 60
kW: 17
Number of Fry Pots: 2
Oil Capacity (lb): 100
Oil Capacity/Fryer (lb): 50
Phase: 3
Product: Electric Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 2ER50 Series
Type: Floor Model
Voltage: 208
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 31
Weight: 530.00
