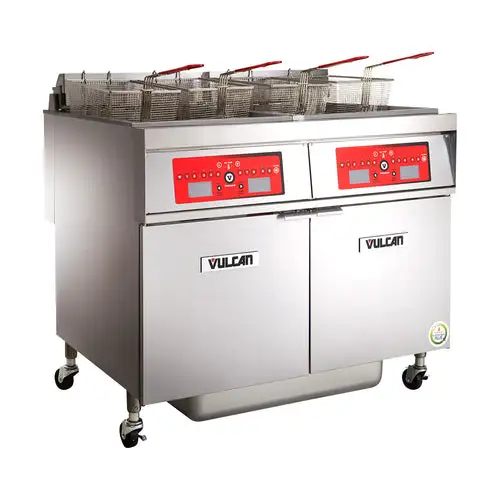

Vulcan 2ER85DF Electric Fryer - (2) 85 Lb Vats, Floor Model, 208v/3ph
Overview
Description
The Vulcan 2ER85DF electric fryer is built for high-volume frying applications, featuring two 85-pound vats and a total oil capacity of 170 pounds. Constructed with a 16-gauge stainless steel fry tank, this Vulcan model ensures durability in demanding commercial kitchens. Solid-state digital controls provide precise temperature adjustments from 200 to 390 degrees Fahrenheit with an accuracy of +/- 2 degrees. Low-watt density ribbon-style heating elements enhance heat recovery, while multiple fat melt modes optimize cooking performance.
Fitted with a 1 1/4-inch full-port ball-type drain valve, the Vulcan 2ER85DF electric fryer facilitates smooth oil removal for improved efficiency. To enhance safety, the drain valve interlock switch automatically turns off the heating elements when draining oil or lifting elements for cleaning. The Boil-Out ByPass® system simplifies fryer maintenance by eliminating direct contact between the boil-out solution and the drain manifold, filter pan, or motor/pump. Featuring the KleenScreen PLUS® filtration system, this Vulcan unit extends oil life by capturing debris, while the seamless 18-gauge stainless steel filter pan ensures effective filtration. The fryer stands on four 6-inch adjustable legs for stability and customization.
Product Details
(2) 85-pound vats
170-lb. oil capacity
16-ga. stainless steel fry tank
Seamless 18-ga. stainless steel filter pan
Stainless steel cabinet
Solid-state digital temperature controls
Temperature range: 200-390 degrees F
Multiple fat melt modes
Fast heat recovery
2 countdown timers
KleenScreen PLUS filtration system
Boil-Out ByPass system
1 1/4-in. full-port ball-type drain valve
Drain valve interlock switch
Low-watt density ribbon-style heating elements
2 twin fry baskets with plastic-coated handles
(4) 6-inch adjustable legs
Dimensions & Utilities
42 in. W x 34 3/8 in. D x 39 7/16 in. H
24 kW
208 V/60 Hz/3 ph
Product Features
Specifications
Manufacturer
Vulcan
Capacity (lbs)
85
Heat
Electric
Hertz
60
kW
17
Number of Fry Pots
2
Oil Capacity (lb)
170
Oil Capacity/Fryer (lb)
85
Phase
3
Product
Electric Fryers
Product Type
Cooking Equipment
Rating
Best
Series
2ER85 Series
Type
Floor Model
Voltage
208
Warranty
1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)
42
Weight
700.00
Specifications
Manufacturer: Vulcan
Capacity (lbs): 85
Heat: Electric
Hertz: 60
kW: 17
Number of Fry Pots: 2
Oil Capacity (lb): 170
Oil Capacity/Fryer (lb): 85
Phase: 3
Product: Electric Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 2ER85 Series
Type: Floor Model
Voltage: 208
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 42
Weight: 700.00
