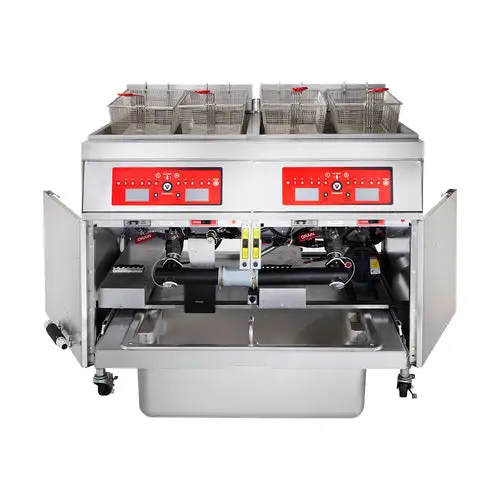

Vulcan 3ER50CF Electric Fryer - (3) 50 Lb Vats, Floor Model, 208v/3ph
Overview
Description
The Vulcan 3ER50CF electric fryer is equipped with programmable compensating computer controls, providing precise temperature adjustments from 200 to 390 degrees Fahrenheit within +/- 2 degrees. This floor model fryer features three 50-pound vats, offering a total oil capacity of 150 pounds to support high-volume frying operations. Ten programmable product keys and ten countdown timers simplify cooking management, while multiple fat melt modes enhance efficiency during operation. The unit also includes a fast recovery function and a boil-out mode for easy maintenance.
Designed for durability, the Vulcan 3ER50CF fryer features a 16-gauge stainless steel fry tank and a stainless steel cabinet, ensuring lasting performance in busy kitchens. A 1 1/4-inch full-port ball-type drain valve facilitates quick oil removal, while the drain valve interlock switch automatically shuts off heating elements when draining oil or lifting elements during cleaning. The Boil-Out ByPass® system enables operators to remove boil-out solution without contacting the drain manifold, filter pan, or motor/pump. The seamless 18-gauge stainless steel filter pan supports the KleenScreen PLUS® filtration system, which extends oil life by capturing food debris.
Product Details
(3) 50-pound vats
150-pound oil capacity
16-ga. stainless steel fry tank
Seamless 18-ga. stainless steel filter pan
Stainless steel cabinet
Programmable compensating computer controls
Temperature range: 200-390 degrees F
10 programmable product keys
10 countdown timers
Multiple fat melt modes
Fast heat recovery
KleenScreen PLUS filtration system
Boil-Out ByPass system
1 1/4-in. full-port ball-type drain valve
Drain valve interlock switch
Low-watt density ribbon-style heating elements
2 twin fry baskets with plastic-coated handles
(4) 6-inch adjustable legs
Dimensions & Utilities
46 1/2 in. W x 34 3/8 in. D x 36 1/4 in. H
17 kW
208 V/60 Hz/3 ph
Product Features
Specifications
Manufacturer
Vulcan
Capacity (lbs)
50
Heat
Electric
Hertz
60
kW
17
Number of Fry Pots
3
Oil Capacity (lb)
150
Oil Capacity/Fryer (lb)
50
Phase
3
Product
Electric Fryers
Product Type
Cooking Equipment
Rating
Best
Series
3ER50 Series
Type
Floor Model
Voltage
208
Warranty
1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)
46.5
Weight
717.00
Specifications
Manufacturer: Vulcan
Capacity (lbs): 50
Heat: Electric
Hertz: 60
kW: 17
Number of Fry Pots: 3
Oil Capacity (lb): 150
Oil Capacity/Fryer (lb): 50
Phase: 3
Product: Electric Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 3ER50 Series
Type: Floor Model
Voltage: 208
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 46.5
Weight: 717.00
