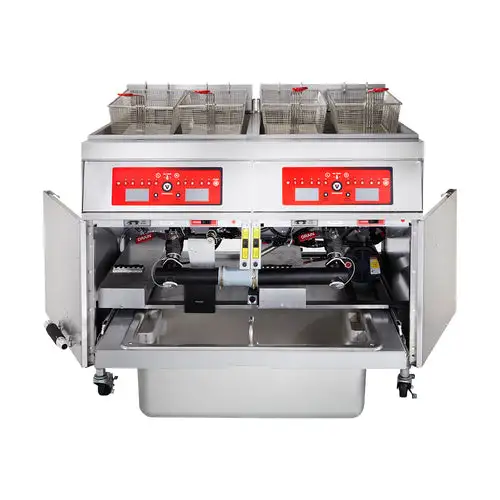

Vulcan 3ER50DF Electric Fryer - (3) 50 Lb Vats, Floor Model, 208v/3ph

Vulcan 3ER50DF electric fryer is built with a 16-gauge stainless steel fry tank, ensuring durability for demanding commercial kitchens. This floor model fryer features three 50-pound vats, offering a total oil capacity of 150 pounds to support high-volume frying operations. Solid-state digital temperature controls allow precise adjustments from 200 to 390 degrees Fahrenheit within +/- 2 degrees. Multiple fat melt modes facilitate controlled oil heating, while the low-watt density ribbon-style heating elements enhance heat recovery and energy efficiency.
For efficient oil filtration and maintenance, the Vulcan 3ER50DF floor model electric fryer is equipped with the KleenScreen PLUS® filtration system, designed to extend oil life by capturing food debris. A 1 1/4-inch full-port ball-type drain valve enables controlled oil removal, while the drain valve interlock switch automatically turns off heating elements when draining oil or lifting heating elements for cleaning. The Boil-Out ByPass® system allows operators to remove boil-out solution without contact with the drain manifold, filter pan, or motor/pump. The seamless 18-gauge stainless steel filter pan provides additional support for oil management, and four 6-inch adjustable legs ensure stability.

Product Details





(3) 50-lb. vats
150-lb. total oil capacity
16-ga. stainless steel fry tank
Seamless 18-ga. stainless steel filter pan
Stainless steel cabinet
Solid-state digital temperature controls
Temperature range: 200-390 degrees F
Multiple fat melt modes
Fast heat recovery
KleenScreen PLUS filtration system
Boil-Out ByPass system
1 1/4-in. full-port ball-type drain valve
Drain valve interlock switch
Low-watt density ribbon-style heating elements
2 twin fry baskets with plastic-coated handles
(4) 6-inch adjustable legs

Dimensions & Utilities





46 1/2 in. W x 34 3/8 in. D x 36 1/4 in. H
17 kW
208 V/60 Hz/3 ph

Product Features
Specifications
Manufacturer
Vulcan

Capacity (lbs)
50

Heat
Electric

Hertz
60

kW
17

Number of Fry Pots
3

Oil Capacity (lb)
150

Oil Capacity/Fryer (lb)
50

Phase
3

Product
Electric Fryers

Product Type
Cooking Equipment

Rating
Best

Series
3ER50 Series

Type
Floor Model

Voltage
208

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
46.5

Weight
717.00

Manufacturer: Vulcan
Capacity (lbs): 50
Heat: Electric
Hertz: 60
kW: 17
Number of Fry Pots: 3
Oil Capacity (lb): 150
Oil Capacity/Fryer (lb): 50
Phase: 3
Product: Electric Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 3ER50 Series
Type: Floor Model
Voltage: 208
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 46.5
Weight: 717.00
