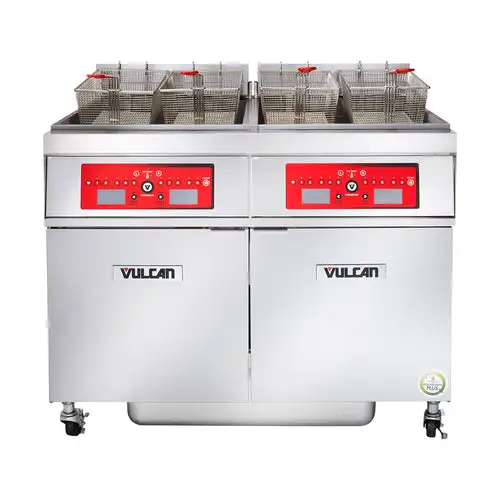

Vulcan 4ER50DF Electric Fryer - (4) 50 Lb Vats, Floor Model, 208v/3ph
Overview
Description
the Vulcan 4ER50DF electric fryer is designed with a solid-state digital control system, ensuring precise temperature regulation from 200 to 390 degrees Fahrenheit with an accuracy of +/- 2 degrees. This floor model fryer includes four, 50-pound vats, providing a total oil capacity of 200 pounds for high-volume frying operations. Each vat features low-watt density ribbon-style heating elements for fast heat recovery, while multiple fat melt modes support controlled oil heating. A boil-out mode is included for simplified fryer maintenance.
Equipped with the KleenScreen PLUS® filtration system, the Vulcan 4ER50DF fryer enhances oil longevity by capturing food particles and debris. A 1 1/4-inch full-port ball-type drain valve ensures quick and controlled oil removal. The stainless steel cabinet and 16-gauge fry tank offer durability to withstand the wear and tear of fast-paced kitchen areas. Twin fry baskets with plastic-coated handles are included for safe and efficient frying, and the unit is supported by four 6-inch adjustable legs for stability.
Product Details
4ER50 series
(4) 50-lb. vats
200-lb. total oil capacity
16-gauge stainless steel fry tank
Stainless steel cabinet
Solid-state digital temperature controls
Temperature holding range: 200-390 degrees F
Multiple fat melt modes
Fast recovery and boil-out mode
KleenScreen PLUS filtration system
Low-watt density ribbon-style heating elements
1 1/4-in. full-port ball-type drain valve
2 twin fry baskets with plastic-coated handles
(4) 6-in. adjustable legs
Dimensions & Utilities
Overall dimensions: 62 in. W x 34 19/50 in. D x 36 1/4 in. H
17 kW
208 V/60 Hz/3 ph
Product Features
Specifications
Manufacturer
Vulcan
Capacity (lbs)
50
Heat
Electric
Hertz
60
kW
17
Number of Fry Pots
4
Oil Capacity (lb)
200
Oil Capacity/Fryer (lb)
50
Phase
3
Product
Electric Fryers
Product Type
Cooking Equipment
Rating
Best
Series
4ER50 Series
Type
Floor Model
Voltage
208
Warranty
1-year Limited Parts & Labor; 10-year Fry Tank
Width (in)
62
Weight
927.00
Specifications
Manufacturer: Vulcan
Capacity (lbs): 50
Heat: Electric
Hertz: 60
kW: 17
Number of Fry Pots: 4
Oil Capacity (lb): 200
Oil Capacity/Fryer (lb): 50
Phase: 3
Product: Electric Fryers
Product Type: Cooking Equipment
Rating: Best
Series: 4ER50 Series
Type: Floor Model
Voltage: 208
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 62
Weight: 927.00
