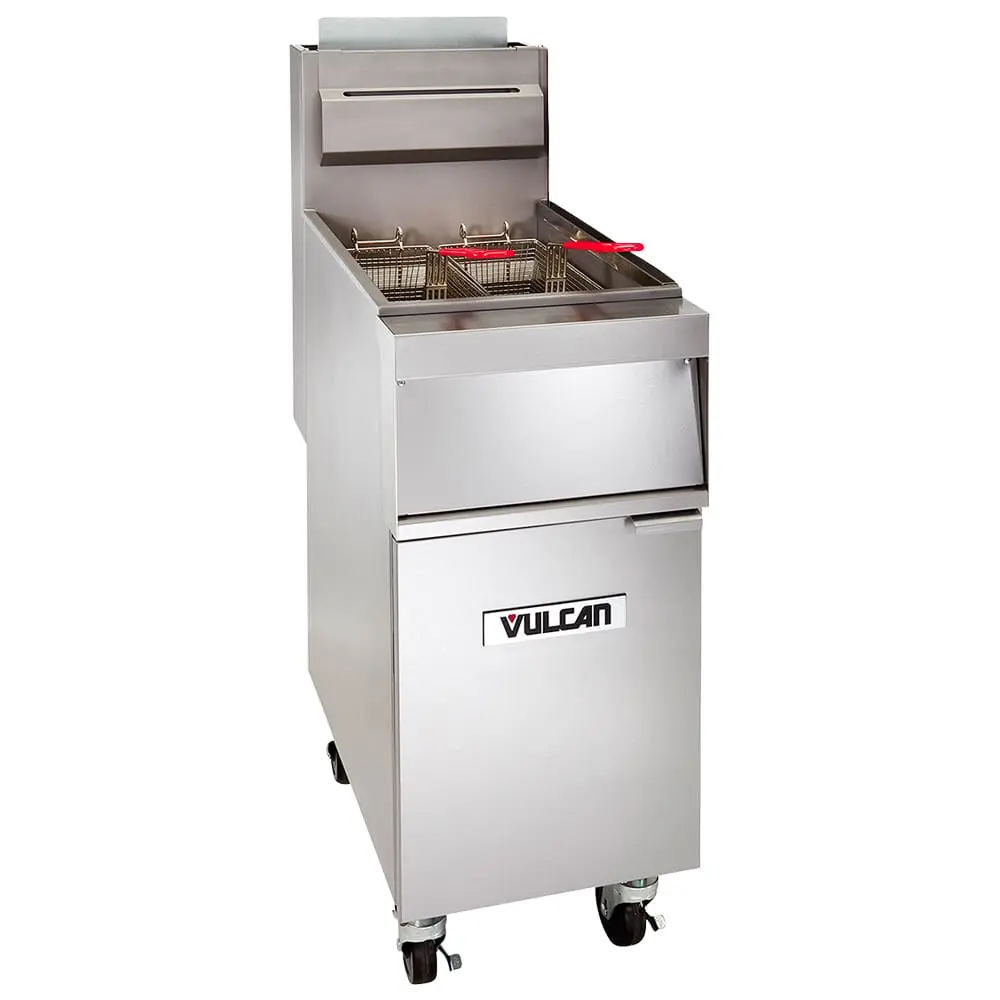

Vulcan 1GR35M Gas Fryer - (1) 40 Lb Vat, Floor Model, Natural Gas

The Vulcan 1GR35M fryer is ideal for medium-volume applications, with a fry tank oil capacity of 35 to 40 pounds. There is a V-shaped cold zone where sediment can fall beneath the cooking area so it will not carbonize and ruin the oil, which can extend oil life and ensure it does not give foods a burnt flavor. A millivolt thermostat control is used to adjust the temperature on this unit, and temperatures range from 200 to 400 degrees Fahrenheit. A tank brush, clean-out rod, and crumb scoop are all included for cleaning out the 14-inch-by-14-inch fry tank.
The entire fryer is constructed from stainless steel for durability and resistance to corrosion, scratching and denting. There are four 6-inch casters that make moving the fryer for cleaning and filtering simple. Two casters have locks to keep the fryer in place. With twin fry baskets, the operator can cook two different types of food at once; plastic handles on the baskets reduce the risk of burns. The Vulcan 1GR35M fryer is heated by natural gas. The high-limit shut-off valve turns the flow of gas off if temperatures rise to an unsafe level.
Product Details

Heated by natural gas
Millivolt thermostat control has a temperature range of 200-400 degrees F
35-40-lb. oil capacity fry tank
14 in. x 14 in. fry tank
V-shaped cold zone allows sediment to fall under the burners to prevent them from burning and changing the flavor of the oil
Tank brush is used to clean out the fry tank
Crumb scoop allows the operator to remove debris
Clean-out rod for breaking apart particles
Stainless steel construction makes the unit heavy duty and resistant to minor damage
1 1/4-in. full port ball type drain valve
(4) 6-in. casters are adjustable and 2 lock in place
Twin fry baskets have plastic-coated handles to protect hands from burns
3 heat exchange tubes are easy to clean due to how they are positioned
High-limit shut-off valve turns off the gas flow if temperatures exceed the safe limit
Gas shut off valve and pilot safety system
Requires 6 in. of clearance on the sides and rear
16-in. clearance from open top burners required
90,000 BTU
Overall Dimensions: 15 1/2 in. W x 30 1/4 in. D x 47 1/8 in. H
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
90000

Capacity (lbs)
40

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

Number of Fry Pots
1

Oil Capacity (lb)
40

Oil Capacity/Fryer (lb)
40

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
175.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 90000
Capacity (lbs): 40
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
Number of Fry Pots: 1
Oil Capacity (lb): 40
Oil Capacity/Fryer (lb): 40
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 175.00
