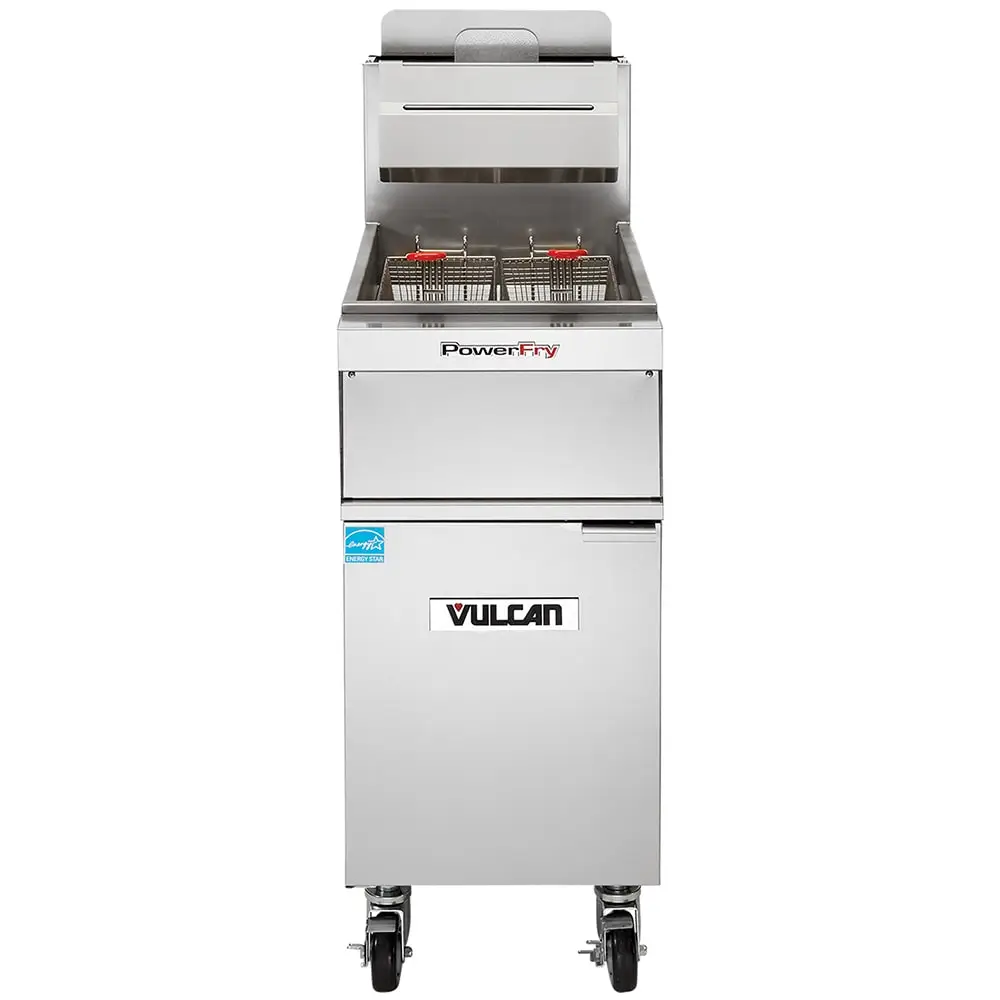

Vulcan 1TR45AF Gas Fryer - (1) 50 Lb Vat, Floor Model, Liquid Propane

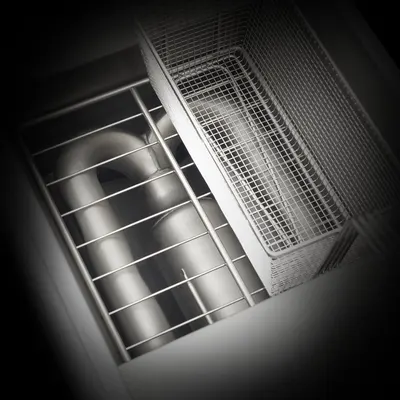

The Vulcan 1TR45AF PowerFry3® fryer has a stainless steel fry tank with a capacity of 45-50 pounds. Two fry baskets are included to fry two batches of product at once, and it adjusts from 200 to 390 degrees Fahrenheit to suit different applications. It idles to maintain the cooking temperature while saving energy, and the ThreePass® heat transfer system increases cooking efficiency. To extend the life of the oil and lower the BTUs, the unit uses a SoftStart® ignition system. A tank brush and clean-out rod simplify cleaning, and the unit can be moved on 6-inch adjustable casters. Two of the casters lock to hold the unit in place while cooking.
A KleenScreen PLUS® filtration system is built into the Vulcan 1TR45AF PowerFry3 fryer to ensure oil does not transfer flavors from previous batches. The filter pan is made of stainless steel and has a 70-pound capacity. With the 1/3 horsepower motor and pump, the frying compound is circulated at 8 gallons per minute. These parts are activated with a one-touch push button switch. When oil is draining, the gas burners automatically shut off through the interlock switch.

Product Details





Heated by propane
45-50 lb. oil capacity in the stainless steel fry tank
Twin fry baskets for preparing 2 batches at the same time
Solid state control system adjusts from 200-390 degrees F
Idles at 4,318 BTU to maintain temperature while saving energy
ThreePass heat transfer system increases cooking efficiency
SoftStart ignition system extends oil life and lowers BTUs
Hi-limit shut-off turns the gas valve off and extinguishes the pilot if shortening gets too hot
Stainless steel cabinet is heavy duty for consistent use
2 of (4) 6-in. adjustable casters lock in place
Comes with a tank brush for removing debris
Clean-out rod enables users to carefully stir hardened shortening above the cold zone where it can melt
70,000 BTU
Overall dimensions: 15 1/2 in. W x 30 1/8 in. D x 50 1/4 in. H

Built-in KleenScreen PLUS Filtration System





70-lb. capacity, seamless, stainless steel filter pan
Stainless steel mesh screen filters from both sides
Motor and pump circulate the compound at 8 gal. per min.
One-touch push button engages motor and pump
Drain valve interlock switch automatically turns off gas burners when oil is draining
115 V/60 Hz/1 ph, 6 A, 1/3 HP
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Built In Filter

Special Features
Casters Included - Uninstalled

Special Features
High Efficiency

Special Features
Melt Cycle

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
230.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Built In Filter
Special Features: Casters Included - Uninstalled
Special Features: High Efficiency
Special Features: Melt Cycle
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 230.00
