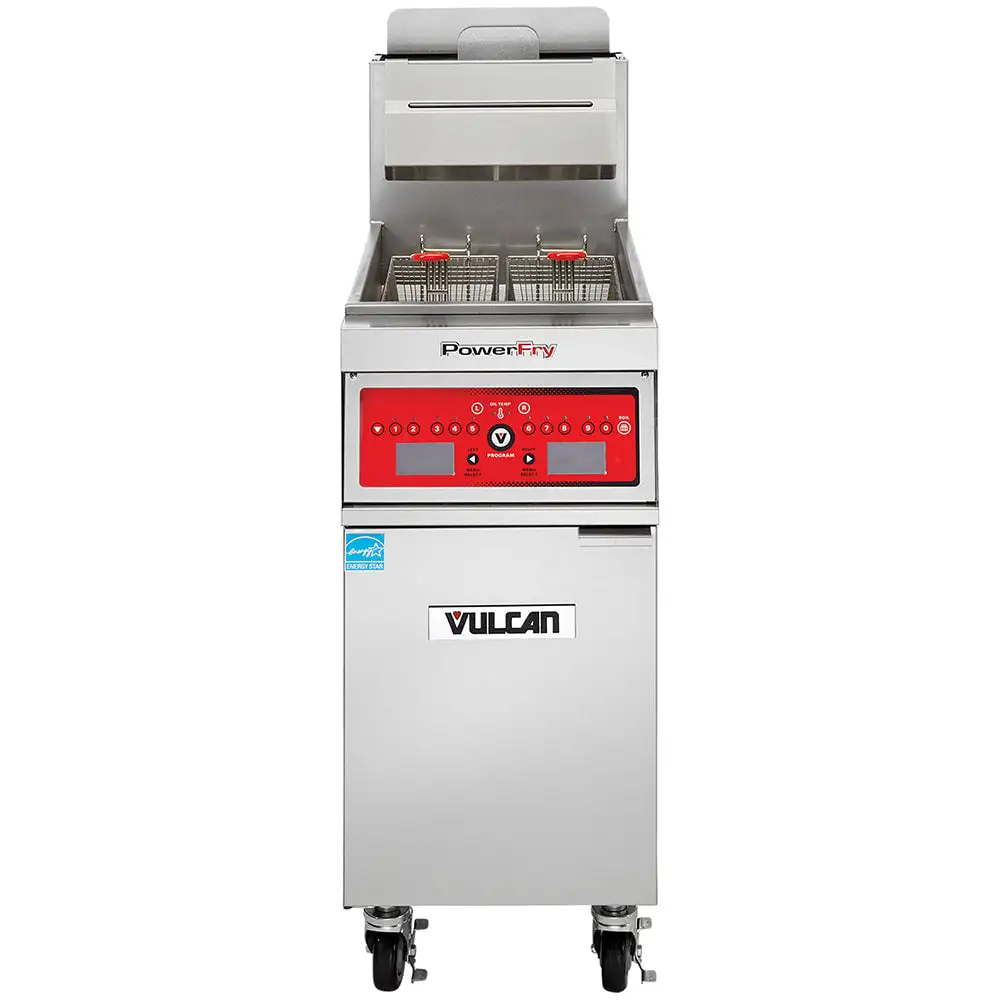

Vulcan 1TR45CF Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas

Powered by natural gas, the Vulcan 1TR45CF gas fryer outputs 70,000 BTU per hour to cook chicken, fish, and french fries at medium volumes. It can hold 45 to 50 pounds of oil, while its KleenScreen PLUS® filtration system filters from two sides to extend oil life. To accommodate various types of fat, it has three melt modes. Once it's powered on with its electronic ignition, its SoftStart® system heats oil quickly while lowering energy output to 35,000 BTU. To further conserve energy, its ThreePass® heat transfer system provides shorter cook times, and when idle, it outputs only 4,318 BTU. With its programmable computer controls, the temperature can be adjusted between 200 and 390 degrees Fahrenheit; these controls can save 10 menu timers to simplify operation.
The Vulcan 1TR45CF gas fryer measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high, and its fry tank and cabinet are made of stainless steel. It's designed to hold the two included 6 1/2-inch-wide by 13 1/4-inch-deep by 6-inch-high fry baskets, which feature plastic-coated handles designed to protect operators and give them a firm and secure grip. This unit rolls on four 6-inch castersa€”two of which lock to hold the unit in place. To simplify cleaning, it includes a tank brush, clean-out rod, and 1 1/4-inch port ball-type drain valve.

Fryer Details





Part of the PowerFry3® series
45-50-lb. oil capacity
Stainless steel cabinet and fry tank
Freestanding unit with 1 frypot
Twin fryer baskets with plastic handles
Temperature range: 200-390 degrees F
SoftStart ignition system minimizes scorching risks and outputs only 35,000 BTU per hour

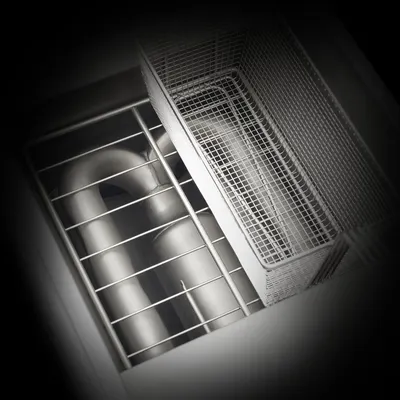

Energy-efficient ThreePass heat transfer system extends oil life
Electronic matchless ignition
KleenScreen PLUS filtration system filters from two sides
Three melt modes
1 1/4-in. full port ball-type drain valve
Outputs 5,575 BTU per hour when idle
Hi-limit shutoff prevents overheating
Includes tank brush and clean-out rod
36 1/4-in. working height
(4) 6-in. adjustable casters (2 locking)

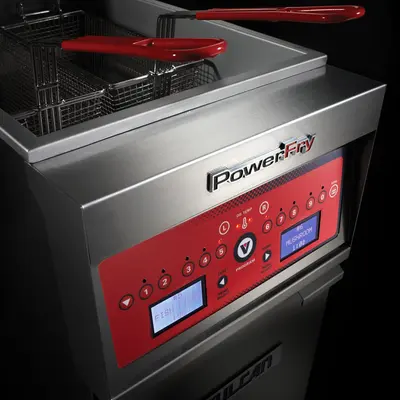

Computer controls





Programmable
Digital character display
Stores 10 menu timers with product name and cook time
Offers offline programming with USB (software included)
Can display compensating time or actual time and temperatures in Fahrenheit or Celsius

Dimensions and Utilities





Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
70,000 BTU output
Natural gas powered

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
230.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 230.00
