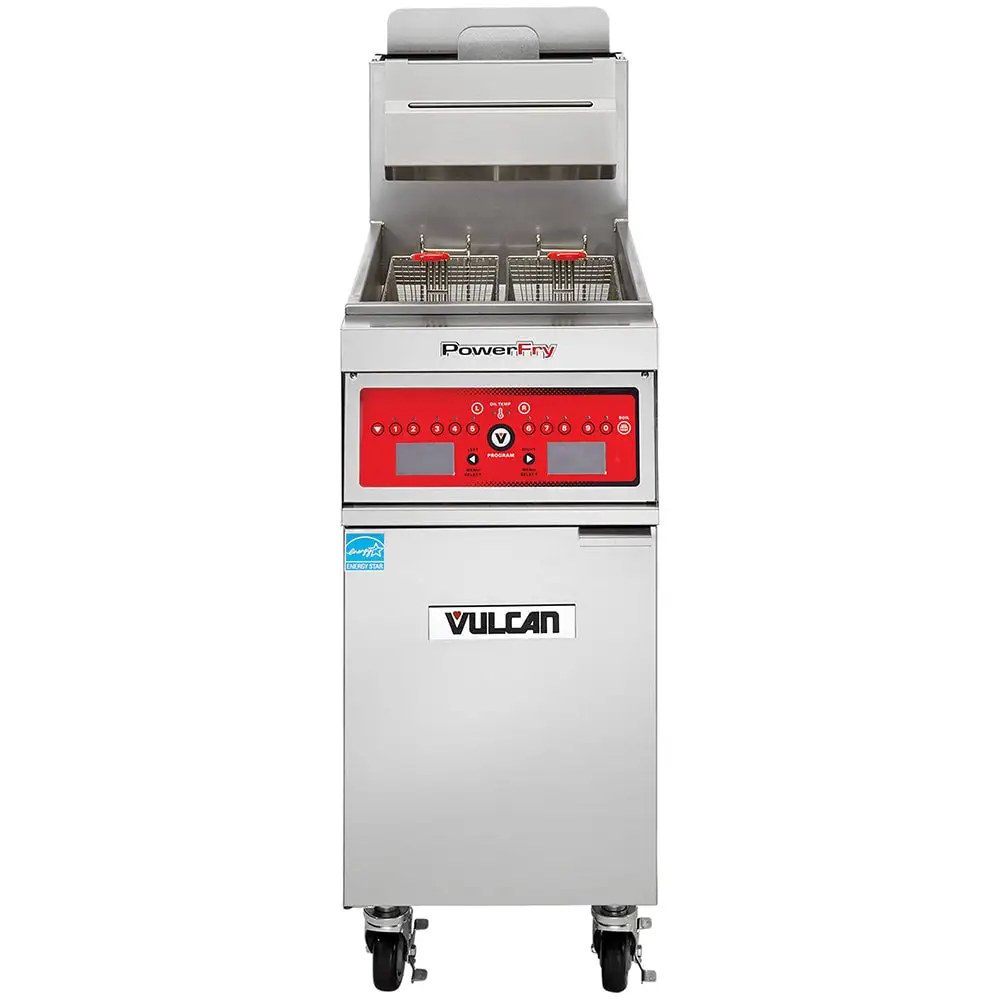

Vulcan 1TR45CF Gas Fryer - (1) 50 Lb Vat, Floor Model, Liquid Propane

With its stainless steel construction, the Vulcan 1TR45CF PowerFry3® fryer is designed with longevity in mind. Its KleenScreen PLUS® filtration system extends oil life by filtering a 270-square-inch area through a mesh screen. To further simplify cleaning, it comes with a tank brush, clean-out rod, and 1 1/4-inch full port ball-type drain valve. This unit sits on four 6-inch castersa€”two of which can be locked to hold the unit in place. Overall, it measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high.

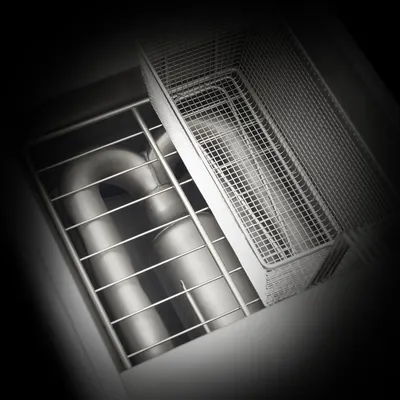

The Vulcan 1TR45CF liquid propane fryer outputs 70,000 BTU and has an electronic ignition with programmable computer controls that can be used to set temperatures between 200 and 390 degrees Fahrenheit. Its vat can hold 45 to 50 pounds of oil and accommodate two included 6 1/2-inch-wide by 13 1/4-inch-deep by 6-inch-high frying baskets to create medium volumes of french fries, mozzarella sticks, or onion rings. Its ENERGY STAR®-certified ThreePass® heat transfer system yields 60.9 percent cooking efficiency and 72 percent thermal efficiency by increasing the heat-transfer surface area. Its computer can be programmed with 10 menu timers that display product name and cook time. For a quick, energy-efficient start-up, it features the SoftStart® electric ignition system which lowers energy expenditure to 35,000 BTU during startup, and when idle, it uses only 4,318 BTU.

Fryer Details





45-50-lb. capacity
Temperature range: 200-390 degrees F
Stainless steel cabinet and fry tank
Twin fry baskets with plastic-coated handles
(4) 6-in. adjustable casters (2 locking)
KleenScreen PLUS filtration system
Energy-saving SoftStart ignition outputs 35,000 BTU during startup
ThreePass heat-transfer system
Included tank brush and clean-out rod
1 1/4-in. full port ball-type drain valve
Outputs 4,318 BTU when idle
70,000 BTU

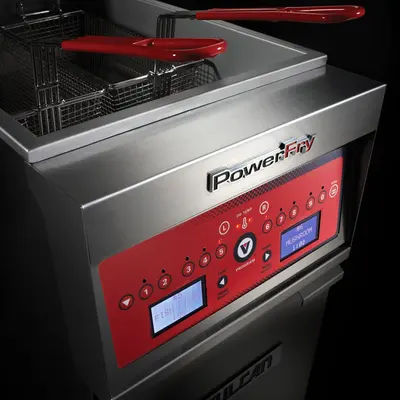

Computer control system





10 menu timers
Offers offline programming through USB interface
Can show compensating time or actual time
Digital character display
3 melt modes

Dimensions and Utilities





Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
LP gas

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
230.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 230.00
