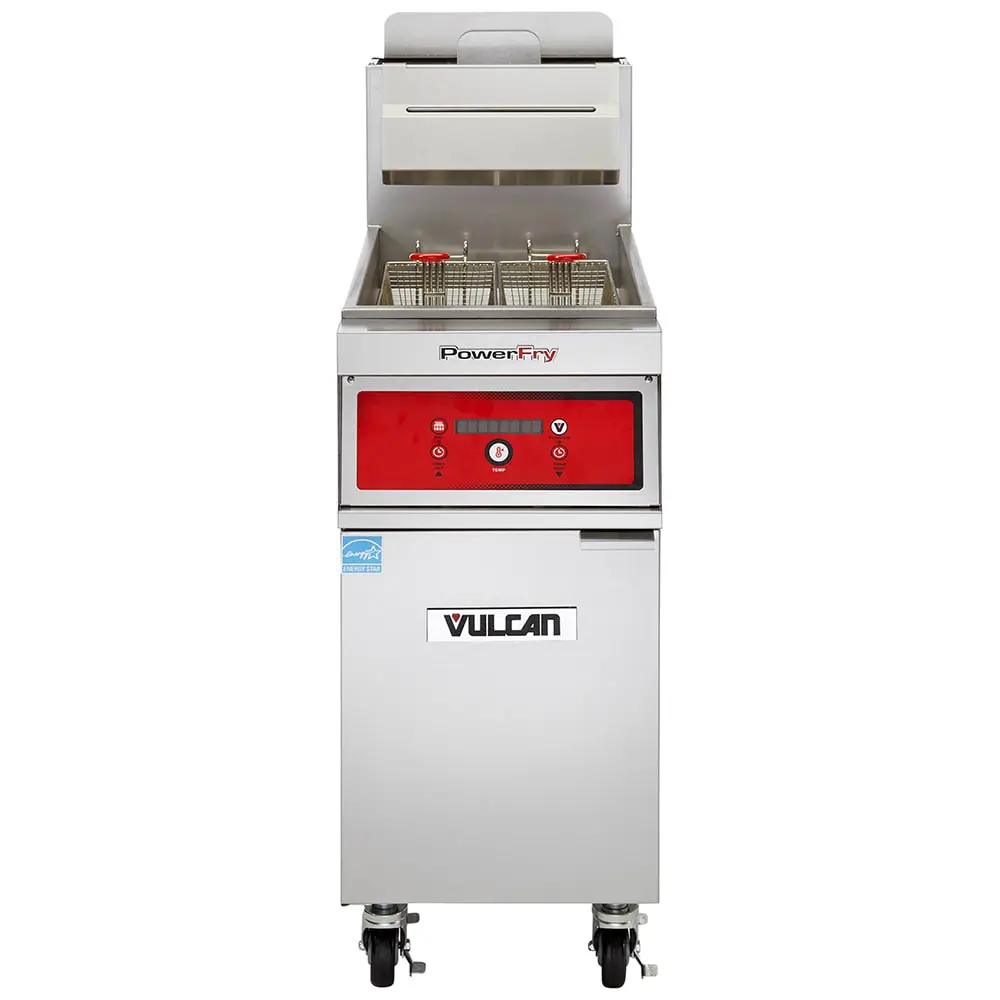

Vulcan 1TR45DF Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas

The Vulcan 1TR45DF Powerfry3® fryer's stainless steel body measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high, and is a freestanding unit that can slot into existing equipment lineups. Transporting the unit is simple thanks to its four 6-inch casters, and when operators are ready cook, it can be locked in place. For cooking medium volumes of french fries, chicken nuggets, mozzarella sticks, or other breaded foods, its vat can hold 50 pounds of oil, and it comes with two baskets with plastic-coated handles for a secure and safe grip. To accommodate various fat types, it features three melt cycles.
The Vulcan 1TR45DF floor-model fryer's temperature can be set between 200 and 390 degrees Fahrenheit using its digital display which can show temperatures in Fahrenheit or Celsius. It's ThreePass® heat transfer system is powered by natural gas to quickly and evenly heat oil. This unit normally outputs 70,000 BTU per hour, but its SoftStart® electronic ignition system lowers output to 35,000 BTU during start up. When idle, it uses only 4,318 BTU to maintain cooking temperature. The KleenScreen PLUS® filtration system removes particles and debris from the oil, extending its service life and preserving flavors; to further simplify upkeep, it features an auto boil-out mode to remove stubborn oil or sediment between oil changes.

Product Details





45-50-lb. capacity
Temperature range: 200-390 degrees F
Freestanding unit with 1 frypot
Stainless steel cabinet and fry tank
Twin fry baskets with plastic-coated handles
(4) 6-in. adjustable casters (2 locking)
KleenScreen PLUS filtration filters oil with duel-sided fabric screen
SoftStart ignition system minimizes scorching risks and outputs only 35,000 BTU per hour
Energy-efficient ThreePass heat transfer system extends oil life
Cook with compensating time or actual time to account for fluctuations
Electronic matchless ignition
Includes tank brush and clean-out rod
Three melt modes
Hi-limit shutoff prevents overheating
Outputs 4,318 BTU per hour when idle
Auto boil-out mode
36 1/4-in. working height
1 1/4-in. full port ball-type drain valve

Dimensions and Utilities





Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
70,000 BTU
Natural gas

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
230.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 230.00
