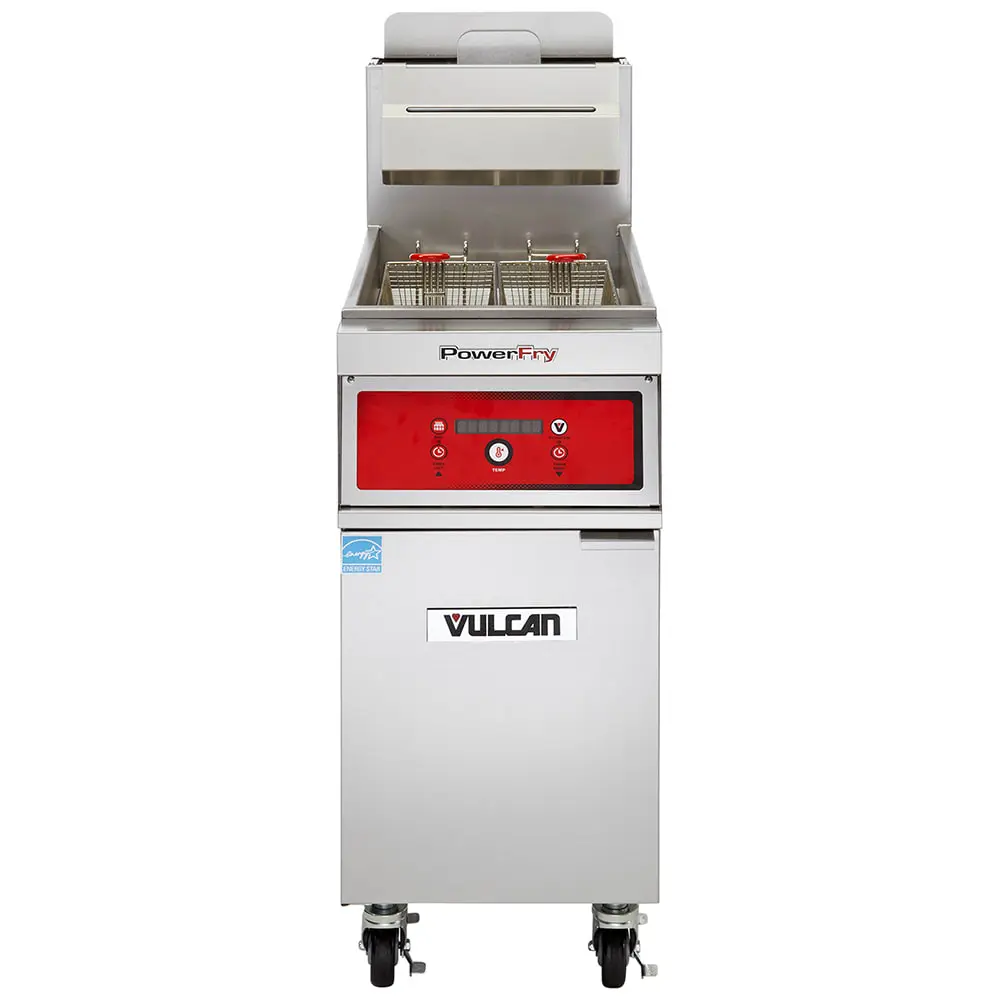

Vulcan 1TR45DF Gas Fryer - (1) 50 Lb Vat, Floor Model, Liquid Propane

Designed for evenly frying okra, onion rings, dumplings, or other breaded foods, the Vulcan 1TR45DF PowerFry3® fryer is fueled by liquid propane and has a total output of 70,000 BTU per hour. Its SoftStart® electronic ignition lowers energy expenditure to 35,000 BTU during startup to prevent oil from scorching, and when idle, it outputs only 4,318 BTU. Operators can set temperatures between 200 and 390 degrees Fahrenheit with the digital display, and the unit's ThreePass® heat transfer system boasts 60.9 percent cooking efficiency with 72 percent thermal efficiency. Its KleenScreen PLUS® filtration system removes particles and food waste from the oil by filtering it through two sides, and the unit's three melt modes can accommodate various types of shortening.
The Vulcan 1TR45DF propane fryer's body is constructed of stainless steel, including its cabinet base and 50-pound-capacity vat. To reduce the risk of operator injury, its fryer baskets have plastic-coated handles, and because this fryer sits on four 6-inch adjustable casters, it's simple to transport; two casters can be locked into place to stop the unit from moving. This unit features solid-state digital controls that can display temperatures in Celsius or Fahrenheit and can track compensating or actual time to account for temperature fluctuations. Overall, it measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high and offers staff a 36 1/4-in. working height.

Product Details





Part of the PowerFry3 series
45-50-lb. capacity vat
Temperature range: 200-390 degrees F
Stainless steel fry tank and cabinet
Twin baskets with plastic handles
(4) 6-in. adjustable casters (2 locking)
Three melt modes
KleenScreen PLUS filtration system filters oil from two sides
Outputs 4,318 BTU per hour when idle to conserve energy
Hi-limit shutoff prevents overheating
Includes tank brush and clean-out rod
36 1/4-in. working height
1 1/4 in. full port ball-type drain valve

Digital display with two countdown timers
Auto boil-out mode
Can cook with compensating time or actual time
Offers Fahrenheit or Celsius temperature readings
ThreePass heat transfer mechanism
Dimensions and Utilities
Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Overall Dimensions: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
70,000 BTU output
LP powered

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
230.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 230.00
