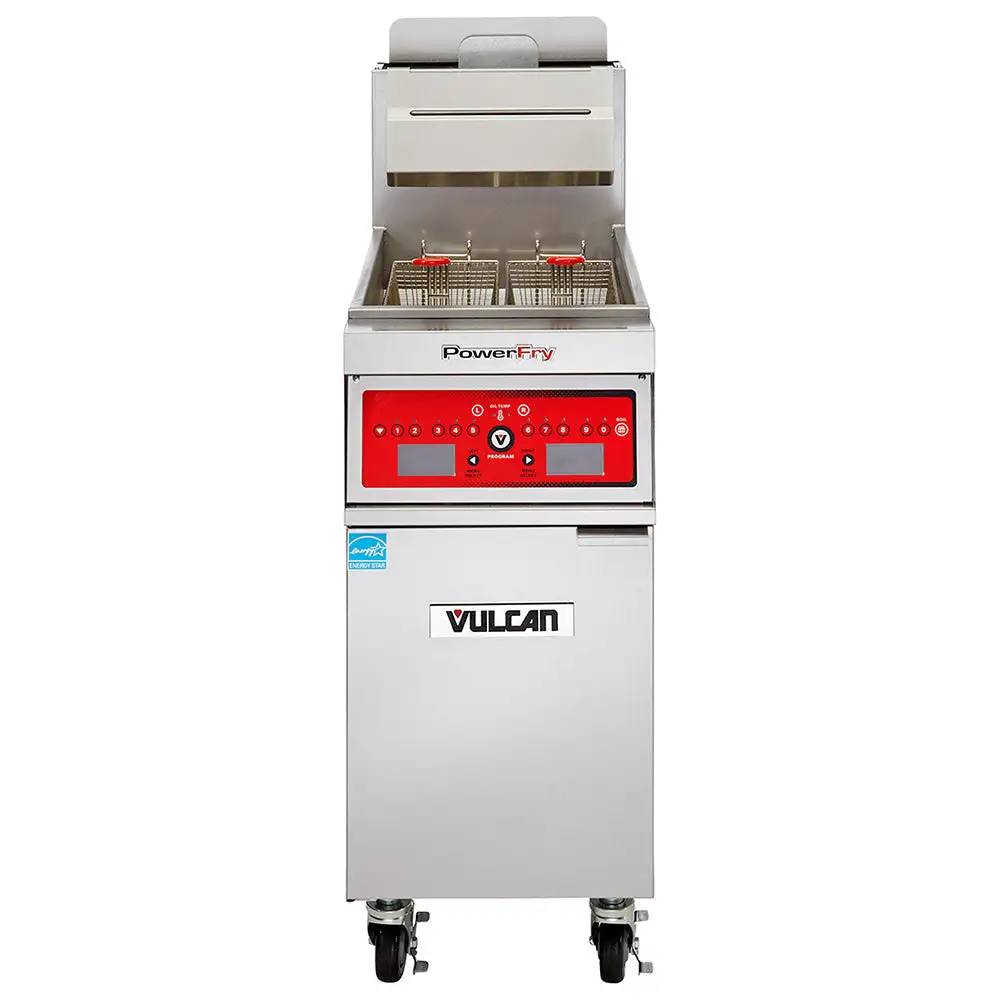

Vulcan 1TR45C Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas

The Vulcan 1TR45C gas fryer has a vat that can support 45 to 50 pounds of oil, which can be heated to temperatures between 200 and 390 degrees Fahrenheit. Its body features a stainless steel construction and measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high. To simplify transportation, it rests on four 6-inch casters, two of which can be locked for stability during use. It comes with two 6 1/2-inch-wide by 13 1/4-inch-deep by 6-inch-high frying baskets that feature plastic coated handles.
Powered by natural gas, the Vulcan 1TR45C PowerFry3® fryer comes with several features to create high-quality fried chicken, onion rings, or donuts. Its ThreePass® heating system offers three melt cycles to accommodate various shortening types, and it increases the heat transfer area to maximize efficiency. Its SoftStart® electronic ignition system outputs 35,000 BTU per hour during startup, while its maximum output is 70,000 BTU; when idle, it lowers output to only 4,318 BTU per hour.

Fryer Details





Part of the PowerFry3 series
45-50-lb. capacity
Temperature range: 200-390 degrees F
Freestanding unit with 1 frypot
Stainless steel cabinet and fry tank
Includes twin baskets with plastic handles
SoftStart ignition system minimizes scorching risks and outputs only 35,000 BTU per hour
Energy-efficient ThreePass heat transfer system extends oil life
Electronic matchless ignition
Three melt modes
Outputs 4,318 BTU per hour when idle
Hi-limit shutoff prevents overheating
(4) 6-in. adjustable casters (2 locking)
Includes tank brush and clean-out rod
1 1/4 in. full port ball-type drain valve
36 1/4-in. working height

Computer controls





Programmable
Digital character display
Stores 10 menu timers with product name and cook time
Offers offline programming with USB (software included)
Can display compensating time or actual time and temperatures in Fahrenheit or Celsius
ThreePass heat transfer mechanism

Dimensions and Utilities





Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
NG powered
70,000 BTU output

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
230.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 230.00
