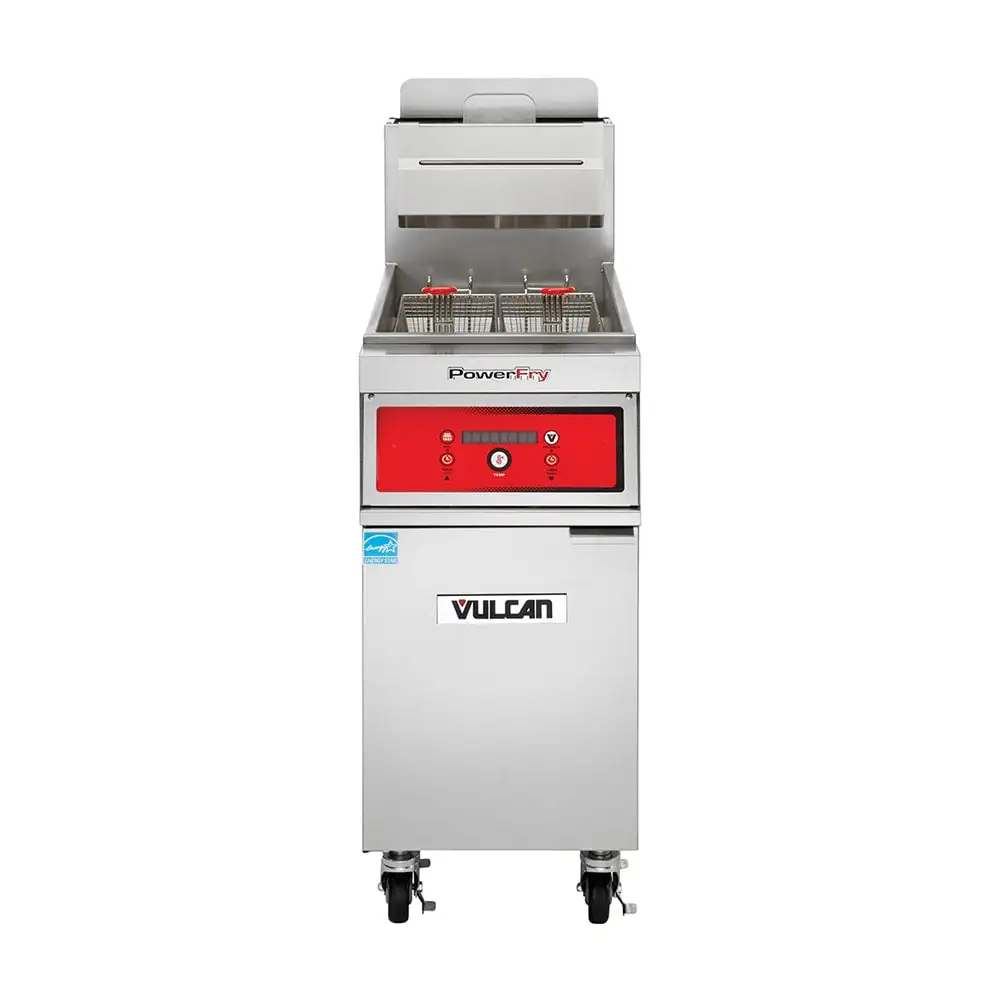

Vulcan 1TR45D Gas Fryer - (1) 50 Lb Vat, Floor Model, Natural Gas

Built with longevity in mind, the Vulcan 1TR45D fryer is constructed of durable stainless steel to protect against scratches and dents. It can moved for cleaning or maintenance with its four 6-inch casters and held in place with the two locks. This unit measures 15 1/2 inches wide by 30 1/8 inches deep by 47 1/8 inches high and includes two frying baskets with plastic-coated handles to reduce heat transfer. To accommodate different shortening types, it offers three melt modes, and it can cook with compensating or actual time.
The Vulcan 1TR45D freestanding fryer's temperature can be set between 200 and 390 degrees Fahrenheit with its solid-state digital controls, which can display Celsius or Fahrenheit. It's fueled by natural gas and features a ThreePass® heat transfer system that provides 60.9 percent cooking efficiency and 72 percent thermal efficiency. This fryer's vat can hold 45 to 50 pounds of oil and is equipped with a SoftStart® electronic ignition system to conserve energy during start-up while preventing scorching. It uses 4,318 BTU when idle to maintain cooking temperatures and outputs a maximum of 70,000 BTUs per hour.

Product Details





Part of Cambro's PowerFry® collection
45-50-lb. capacity
Temperature range: 200-390 degrees F
Freestanding configuration with stainless steel construction and 1 fry tank
Metal twin baskets with plastic-coated handles
Energy-efficient ThreePass heat transfer system extends oil life
SoftStart® ignition system minimizes scorching risks and outputs only 35,000 BTU per hour
Solid state digital controls
3 melt cycles
(4) 6-in. adjustable casters (2 locking)
Outputs 4,318 BTU per hour when idle
Auto boil-out mode
Digital display
Two countdown timers can show actual or compensating time to account for temperature fluctuations
Fahrenheit or Celsius temperature readings
Electronic matchless ignition
Hi-limit shutoff prevents overheating
1 1/4-in. full port ball-type drain valve
36 1/4-in. working height

Dimensions and Utilities





Twin baskets: 6 1/2 in. W x 13 1/4 in. D x 6 in. H
Overall: 15 1/2 in. W x 30 1/8 in. D x 47 1/8 in. H
70,000 BTU output
NG powered

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
70000

Capacity (lbs)
50

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
50

Oil Capacity/Fryer (lb)
50

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
15.5

Weight
230.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 70000
Capacity (lbs): 50
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 50
Oil Capacity/Fryer (lb): 50
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 15.5
Weight: 230.00
