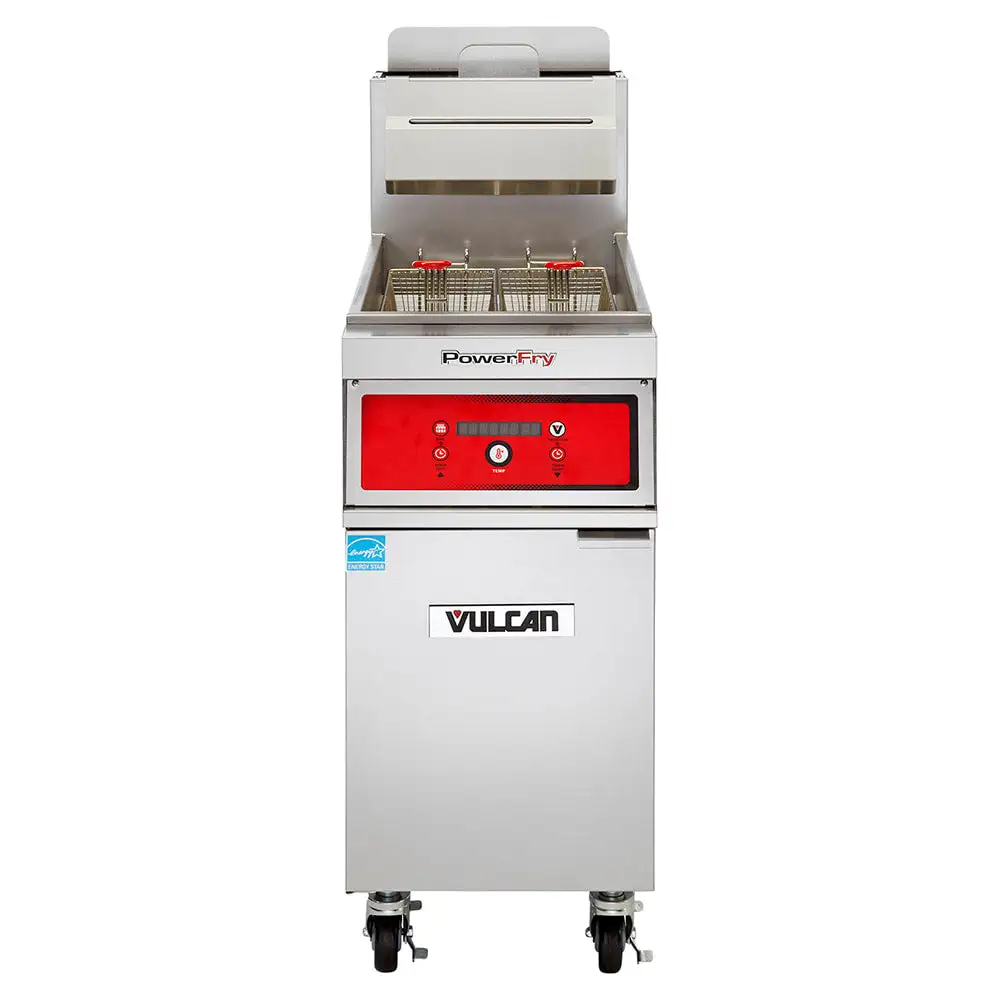

Vulcan 1TR65AF Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

The Vulcan 1TR65AF fryer outputs 80,000 BTUs per hour and is ideal for serving high volumes of deep fried chicken, okra, or fish. It's fueled by liquid propane and features an electronic ignition system for simple operation. To adjust temperatures between 200 and 390 degrees Fahrenheit, it's equipped with a solid-state analog knob control and user-selectable melt modes. When idle, it uses just 5,083 BTU per hour to maintain cooking temperature, and during startup, the SoftStart® ignition system uses 40,000 BTU an hour to prevent scorching and conserve energy. Its KleenScreen PLUS® filtration system prolongs oil life by filtering oil through two sides of a filtration screen, and its ThreePass® heat transfer system provides 72 percent thermal efficiency and 60.9 percent cooking efficiency for evenly cooked product.
Designed to fit most kitchens, the Vulcan 1TR65AF liquid propane fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high and rolls on four 6-inch casters, two of which lock for stability. Its vat holds 65 to 70 pounds of oil and accommodates two twin baskets with plastic-coated handles to reduce heat transfer to employees' hands. To withstand high-intensity kitchens, its cabinet and fry tank are constructed of stainless steel, which is durable and corrosion-resistant. Between oil changes, it can be cleaned with the auto boil-out mode and the included tank brush and clean-out rod.

Product Details





Part of the PowerFry3® series
65-70-lb. capacity
Temperature range: 200-390 degrees F
Freestanding configuration
Stainless steel cabinet and fry tank
Metal twin baskets feature plastic-coated handles
(4) 6-in. adjustable casters (2 locking)
KleenScreen PLUS filtration system filters oil through double-sided fabric screen
1 1/4-in. full port ball-type drain valve
Solid-state analog knob control behind door
User-selectable melt cycles for various shortening types
ThreePass heat transfer system
SoftStart® electronic ignition system minimizes scorching risks and outputs only 40,000 BTU per hour
Outputs 5,083 BTU per hour when idle while preserving cooking temperatures
Hi-limit shutoff prevents overheating
Includes tank brush and clean-out rod
36 1/4-in. working height

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Twin Baskets: 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
80,000 BTU output
LP gas powered

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
