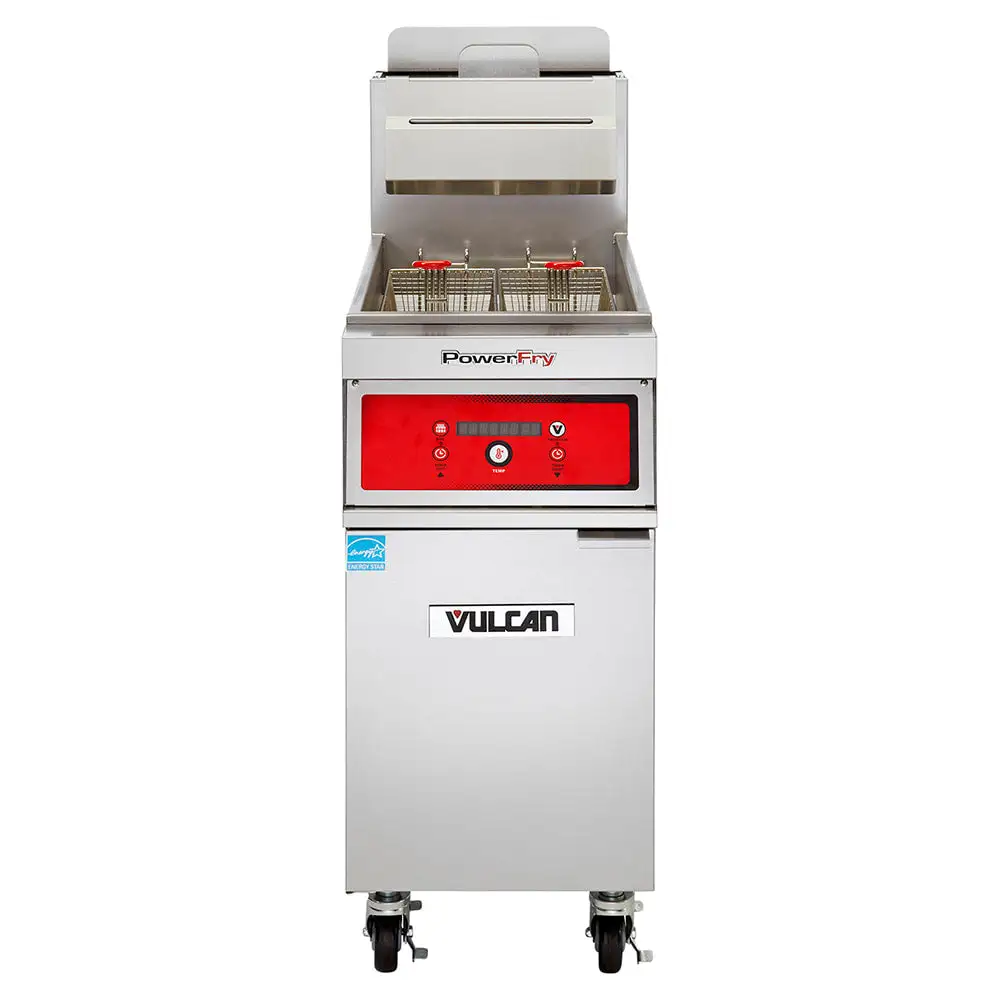

Vulcan 1TR65AF Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

With a 70-pound oil capacity, the Vulcan 1TR65AF freestanding fryer has ample room for frying multiple servings of chicken, onion rings, and fries. Its temperature can be adjusted between 200 and 390 degrees, and it outputs 80,000 BTUs of heat per hour. During startup, its SoftStart® technolody lowers energy expenditure to 40,000 BTU to prevent scorched oil, and when idle, it uses only 4,318 BTU per hour to maintain cooking temperature. Its KleenScreen PLUS® filtration system filters oil through a duel-sided filtration screen to remove extra-small particulates, while its ThreePass® heat transfer system creates a larger surface area for even heating. For simple operation, this natural-gas-powered unit features a matchless electronic ignition and a solid-state analog knob control.
The Vulcan 1TR65AF measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches high to fit in existing equipment setups. Because this unit is mounted on four 6-inch casters, it offers simple transport for maintenance or cleaning, and two can be locked in place for stability. The unit ships with two metal frying baskets with plastic-coated handles to reduce burn risks.

Product Details





Part of the PowerFry3® series
65-70-lb. capacity
Temperature range: 200-390 degrees F
Freestanding configuration
Stainless steel cabinet and fry tank
Metal twin baskets feature plastic-coated handles
(4) 6-in. adjustable casters (2 locking)
KleenScreen PLUS filtration system filters oil through double-sided fabric screen
1 1/4-in. full port ball-type drain valve
Solid-state analog knob control behind door
User-selectable melt cycles for various shortening types
ThreePass heat transfer system
SoftStart® electronic ignition system minimizes scorching risks and outputs only 40,000 BTU per hour
Outputs 5,083 BTU per hour when idle while preserving cooking temperatures
Hi-limit shutoff prevents overheating
Includes tank brush and clean-out rod
36 1/4-in. working height

Dimensions & Utilities





Fry tank: 19 1/2 in. W x 14 in. D
Twin Baskets: 9 1/4 in. W x 13 1/4 in. D x 6 in. H
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
80,000 BTU output
NG gas powered

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
