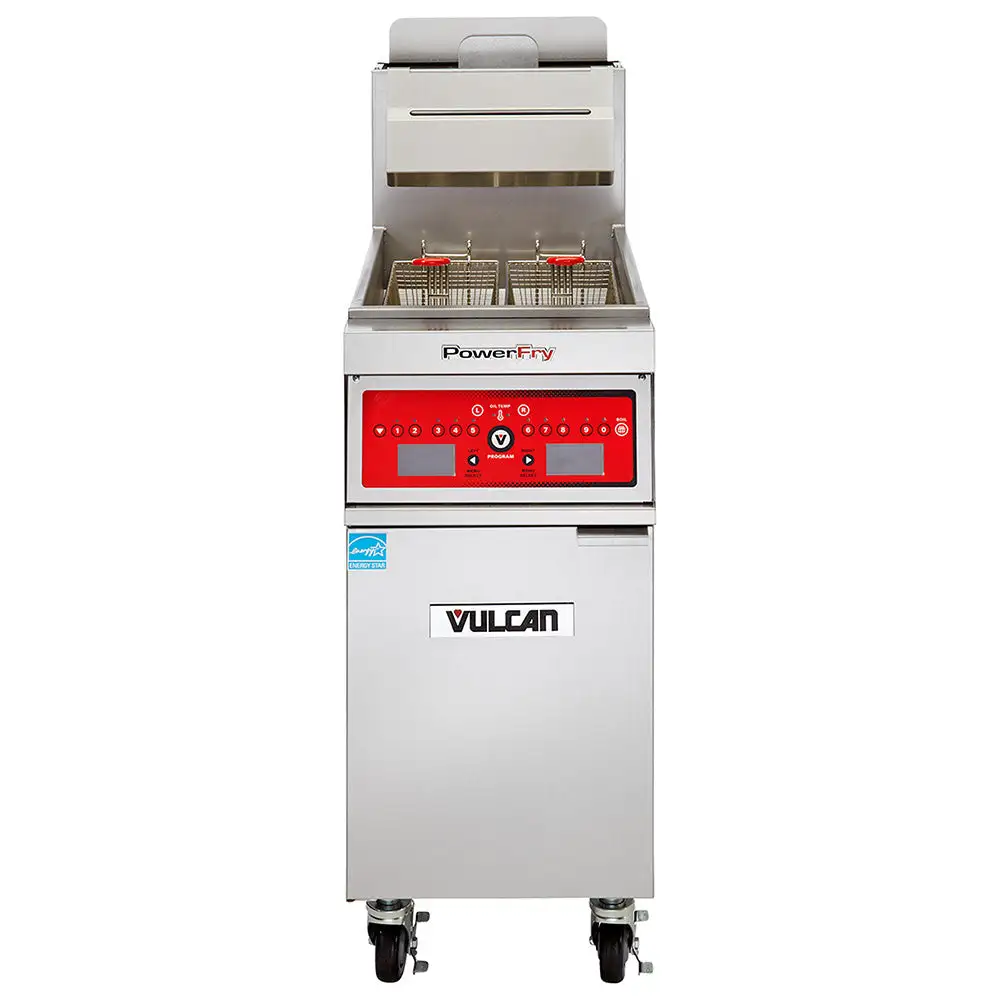

Vulcan 1TR65A Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

For frying mozzarella sticks, chicken, fries, and other breaded foods, the Vulcan 1TR65A PowerFry3® gas fryer can accommodate 70 pounds of oil in its 19 1/2-inch-wide by 14-inch-deep vat. Operators can set the unit's temperature from 200 to 390 degrees Fahrenheit with the solid-state analog knob control located behind the door. For simple startup, this gas-powered fryer features an electronic ignition, and staff can select fat-melt modes to heat solid shortening. To save energy and extend oil life, its SoftStart® ignition system quickly heats oil with half of the unit's maximum BTUs per hour, and then to maintain an idle temperature, it only outputs 5,083 BTUs per hour. The ThreePass® heat transfer system uniformly distributes heat within the cooking oil to reduce recovery times and gas usage. At the maximum production rate, the flue doesn't exceed 750 degrees Fahrenheit. If unit temperature surpasses the set temperature range, the unit will automatically shut off for user safety.
The Vulcan 1TR65A commercial gas fryer is a 21-inch-wide by 30 1/8-inch-deep by 47 1/8-inch-tall freestanding unit positioned on four 6-inch castersa€”two of which can be locked to ensure the unit remains stable during use. For user comfort, it provides a 36 1/4-inch working height. Two fryer baskets come with this fryer to secure products in place during the frying process, and their plastic-coated handles reduce the risk of heat transfer. For lasting durability, the cabinet and fry tank are made of stainless steela€”a durable, rust-resistant metal that can simply be wiped clean. This unit features a 1 1/4-inch port ball-type drain valve, a tank brush, and a clean-out rod to further ease cleaning.

Product Details





Part of Vulcan's PowerFry3 series
70-lb. vat capacity
Freestanding configuration
36 1/4-in. working height
Stainless steel cabinet and fry tank
Positioned on (4) 6-in. adjustable casters (2 with locks)
Electronic matchless ignition
Solid-state analog knob control behind door
Operating temperature control: 200-390 degrees F
Selectable fat-melt modes
SoftStart ignition system outputs 40,000 BTUs per hour at startup
High-efficiency ThreePass heat transfer system for energy-saving oil heating
Maintains idle temperature with 5,083 BTUs per hour
Flue temperature remains below 750 degrees F at maximum production rate
Hi-limit shutoff
Includes 2 fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Comes with tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Dimensions & Utilities





Tank: 19 1/2 in. W x 14 in. D
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by LP gas
120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
