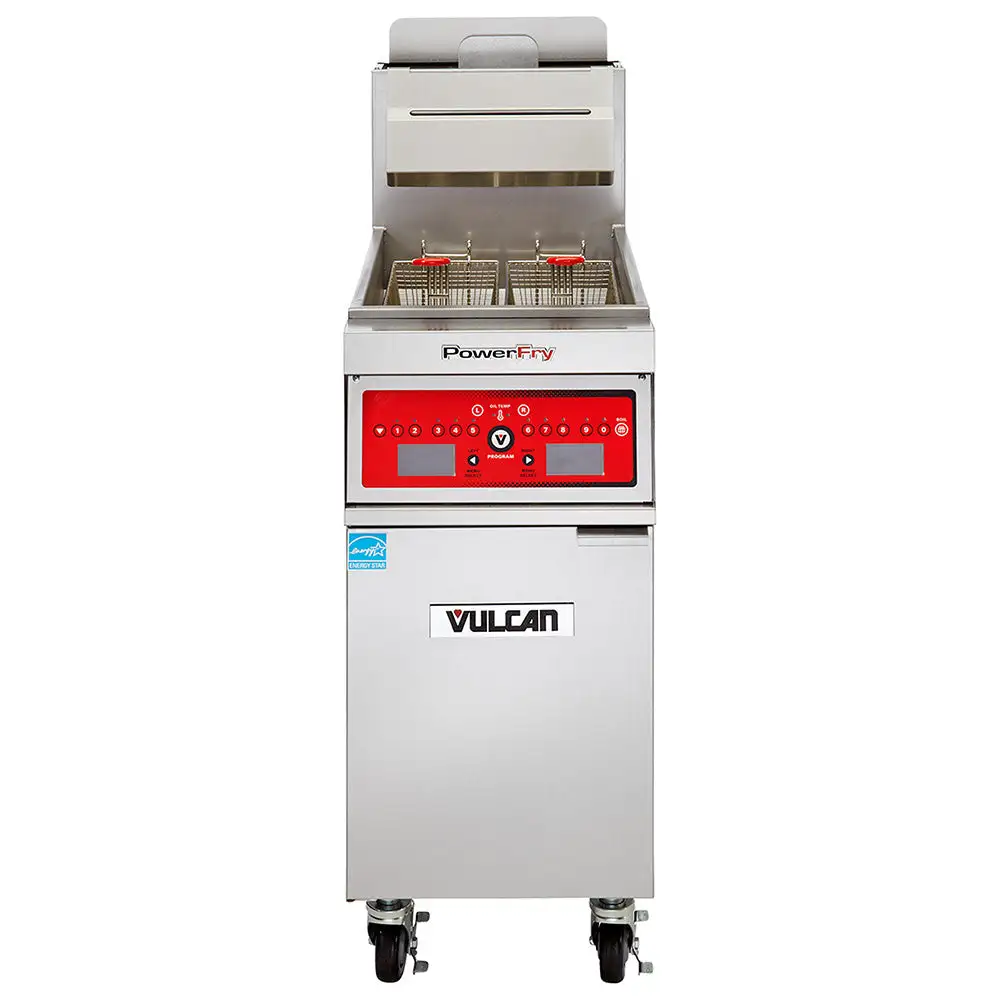

Vulcan 1TR65A Gas Fryer - (1) 70 Lb Vat, Floor Model, Natural Gas

The Vulcan 1TR65A freestanding gas fryer measures 21 inches wide by 30 1/8 inches deep by 47 1/8 inches tall and provides a comfortable 36 1/4-inch working height. Both its cabinet and frypot are made of durable, rust-resistant stainless steel to prolong its service life in fast-paced back-of-house areas. To ease repositioning for cleaning or maintenance, it's fitted with four 6-inch castersa€”two of which can be locked in place. Its tank measures 19 1/2 inches wide by 14 inches deep and can accommodate 70 pounds of oil. The included twin fryer baskets simplify lowering foods into the pot and raising them after they're fried. Their plastic-coated handles lessen the risk of heat transfer for user safety.
As part of the PowerFry3® collection, the Vulcan 1TR65A commercial gas fryer is ideal for medium- to high-volume operations. For precise temperature adjustment, the solid-state analog knob control located behind the cabinet door can be set from 200 to 390 degrees Fahrenheit. Its SoftStart® ignition system outputs 40,000 BTUs per hour to warm oil upon startup, and the unit can maintain idle temperatures by outputting 5,083 BTUs per hour to enhance energy efficiency. To yield 72 percent thermal efficiency and 60 percent cooking efficiency, this fryer features a ThreePass® heat transfer system that uniformly distributes heat within the oil to reduce recovery time. This mechanism also ensures the flue doesn't exceed temperatures hotter than 750 degrees Fahrenheit at a maximum production rate. To simplify cleaning, it's built with a 1 1/4-inch port ball-type drain valve and includes a tank brush and clean-out rod.

Product Details





Featured in the PowerFry3 series
65-70-lb. vat capacity
Freestanding unit with 36 1/4-in. working height
Resilient, rust-resistant stainless steel cabinet and fry tank
(4) 6-in. adjustable casters (2 locking)
Electronic matchless ignition
Solid-state analog knob control behind door
Operating temperature control: 200-390 degrees F
Selectable fat-melt modes
SoftStart ignition system outputs 40,000 BTUs per hour upon startup
High-efficiency ThreePass heat transfer system uniformly distributes heat within cooking oil
Maintains idle temperature outputting 5,083 BTUs per hour
Flue temperature remains below 750 degrees F at maximum production rate
Hi-limit shutoff
Includes twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Dimensions & Utilities





Tank: 19 1/2 in. W x 14 in. D
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by natural gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
NG

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: NG
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
