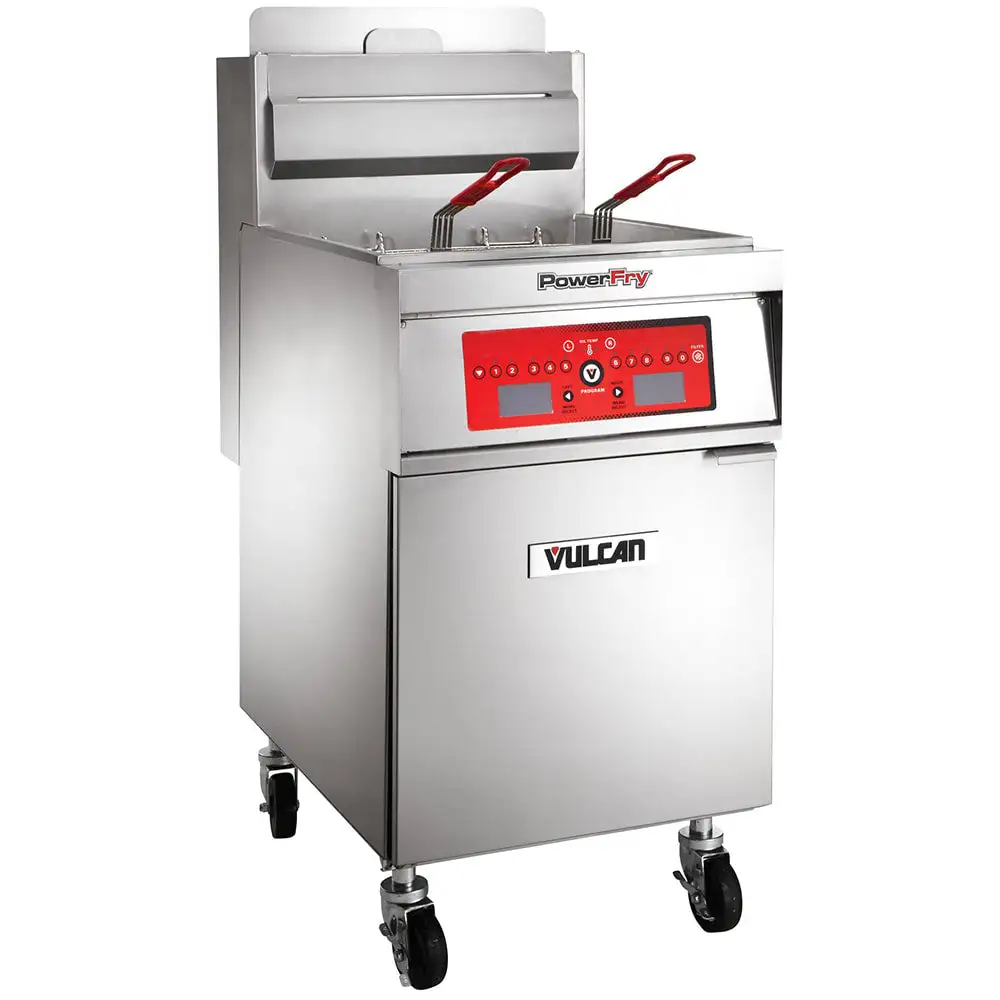

Vulcan 1TR65CF Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

To simplify operation, the Vulcan 1TR65CF PowerFry3® gas fryer features electronic ignition, three melt modes, and programmable computer controls with a digital character display. Users can set 10 timers for 10 frequently made menu items, and the screen will display the product name and cook time. Staff can also use a USB interface to program menu items offline. The unit's temperature can be set from 200 to 390 degrees Fahrenheit, and a digital display provides an accurate readout so operators can ensure contents are cooked at the correct temperature.
This commercial freestanding fryer initiates the SoftStart® ignition mechanism when it begins to heat oil, outputting 40,000 BTUs per hour to save energy and extend the oil's life. Its ThreePass® system evenly distributes heat throughout the oil, yielding 60 percent cooking efficiency and 72 percent thermal efficiency and maintaining a flue temperature lower than 750 degrees Fahrenheit. To maintain oil temperatures, this system only outputs 5,083 BTUs per hour. The KleenScreen PLUS® filtration system helps operators save on oil costs by extending the oil life. Users can simply drain oil, press the filter button, and add oil as necessary.
To complement existing back-of-house equipment, the Vulcan 1TR65CF gas fryer's cabinet and frypot are made of strong, corrosion-resistant stainless steel. This 21-inch-wide by 30 1/8-inch-deep by 47 1/8-inch-tall unit provides a comfortable 36 1/4-inch working height and is positioned on four 6-inch castersa€”two of which can be locked when the unit needs to be secured in place. The 19 1/2-inch-wide by 14-inch-deep fry tank accommodates between 65 and 70 pounds of oil and comes with twin fry baskets to secure breaded products in place during frying. To reduce the risk of heat transfer, the fryer baskets' handles are coated with plastic.

Product Details





Part of the PowerFry3 collection
Fry tank capacity: 70 lbs. of oil
Freestanding model with 36 1/4-in. working height
Stainless steel cabinet and frypot
Positioned on (4) 6-in. adjustable casters (2 can be locked)
Electronic matchless ignition
SoftStart ignition system outputs 40,000 BTUs upon startup
High-efficiency ThreePass heat transfer system
Maintains idle temperature outputting 5,083 BTUs per hour
Flue temperature remains below 750 degrees F at maximum production rate
Hi-limit shutoff
Integrated KleenScreen PLUS filtration system
Includes twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Includes tank brush and clean-out rod
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Computer Control System





Programmable computer controls with digital character display
10 menu timers
USB interface enables offline programming
Operating temperature control: 200-390 degrees F
Temperature display in Fahrenheit or Celsius
3 melt modes

Dimensions & Utilities





Tank: 19 1/2 in. W x 14 in. D
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by LP gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
380.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 380.00
