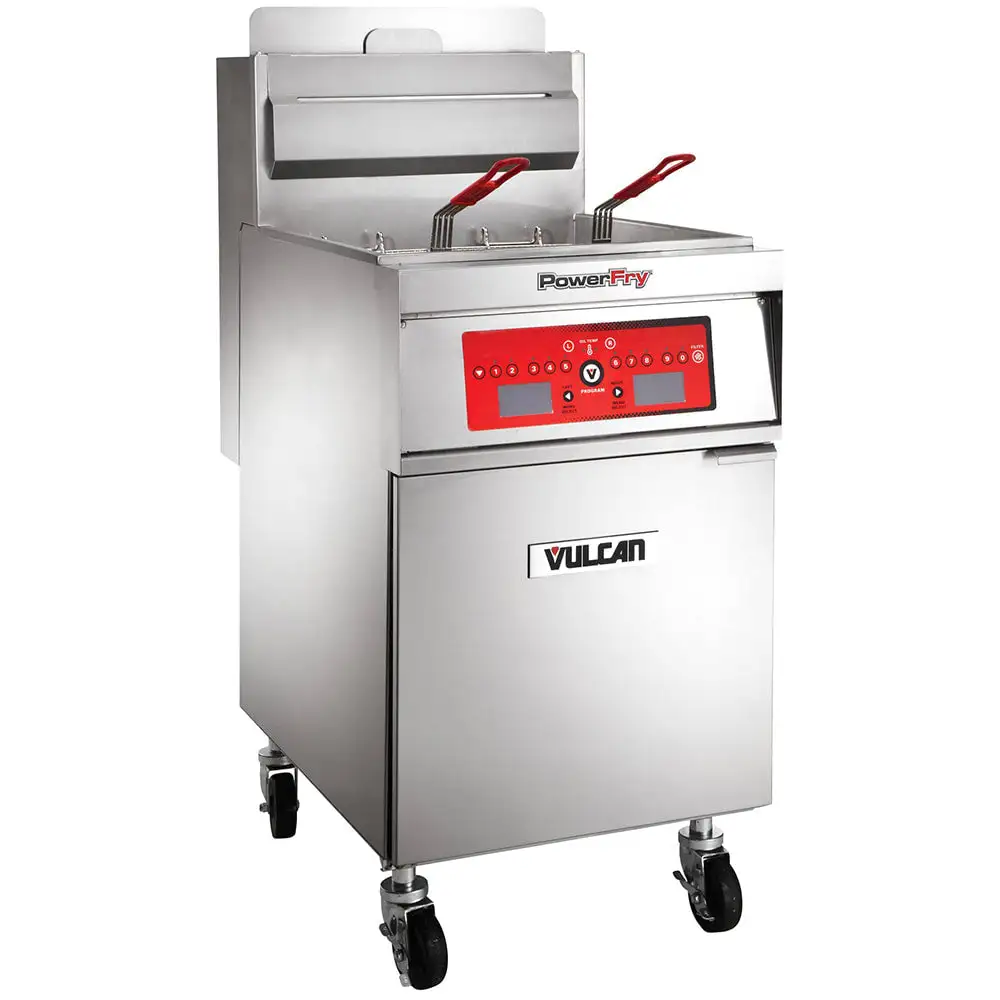

Vulcan 1TR65C Gas Fryer - (1) 70 Lb Vat, Floor Model, Liquid Propane

Compatible with medium- and high-volume operations, the Vulcan 1TR65C PowerFry3® gas fryer boasts a 19 1/2-inch-wide by 14-inch-deep vat that accommodates 70 pounds of cooking oil. Its twin baskets contain mozzarella sticks, chicken tenders, french fries, and other breaded foods to ease insertion and retrieval. The baskets' plastic-coated handles reduce the chance of heat transfer for user safety. Both the frypot and cabinet are made of resilient, corrosion-resistant stainless steel to endure long-term use. This 21-inch-wide by 30 1/8-inch-deep by 47 1/8-inch-tall unit establishes a 36 1/4-inch working height for employee comfort. When the fryer needs to be wheeled out of the way, it can be moved with ease because it's positioned on 6-inch casters; two of the casters can be locked when the fryer is in use.
The Vulcan 1TR65C LP-gas-powered floor fryer can output 80,000 BTUs in an hour. To minimize energy consumption and enhance energy efficiency, its SoftStart® ignition system outputs 40,000 BTUs per hour to heat oil initially. The ThreePass® system evenly distributes heat throughout the cooking oil to reduce cold spots and minimize recovery times. At its maximum production rate, the flue doesn't exceed 750 degrees Fahrenheit. Staff can adjust oil temperature from 200 to 390 degrees Fahrenheit, and a digital display provides an accurate readout of oil temperature. To simplify setup for commonly fried products, operators can set 10 menu timers directly on the fryer or with a USB interface.

Product Details





Part of the PowerFry3 collection
70-lb. oil capacity
High efficiency
Electronic matchless ignition
SoftStart ignition system outputs 40,000 BTUs per hour upon startup
ThreePass heat transfer system for uniform heat distribution
Maintains idle temperature by outputting 5,083 BTUs per hour
Flue temperature doesn't exceed 750 degrees F at maximum production rate
Hi-limit shutoff
Freestanding model
36 1/4-in. working height
Stainless steel cabinet and frypot
Positioned on (4) 6-in. adjustable casters (2 locking)
Twin fryer baskets with plastic-coated handles
1 1/4-in. port ball-type drain valve
Tank brush and clean-out rod included
6-in. clearance required at sides and rear when placed near combustible construction
16-in. minimum clearance to adjacent open-top burner units
80,000 BTU

Computer Control System





Programmable computer controls with digital character display
10 menu timer options
USB interface facilities offline programming (software included)
Operating temperature control: 200-390 degrees F
Digital temperature display (Fahrenheit or Celsius)
3 melt modes

Dimensions & Utilities





Tank: 19 1/2 in. W x 14 in. D
Overall: 21 in. W x 30 1/8 in. D x 47 1/8 in. H
Powered by LP gas
120 V/60 Hz/1 ph, cord with a NEMA 5-15P plug
3/4-in. OD rear gas connection

Product Features
Specifications
Manufacturer
Vulcan

Baskets
2

BTU per Fryer
80000

Capacity (lbs)
70

Food Type
Breaded

Frypot Style
Tube Type

Gas Type
LP

Heat
Gas

NEMA
5-15P

Number of Fry Pots
1

Oil Capacity (lb)
70

Oil Capacity/Fryer (lb)
70

Product
Gas Fryers

Product Type
Cooking Equipment

Rating
Best

Series
PowerFry3®

Special Features
Casters Included - Uninstalled

Type
Floor Model

Warranty
1-year Limited Parts & Labor; 10-year Fry Tank

Width (in)
21

Weight
237.00

Manufacturer: Vulcan
Baskets: 2
BTU per Fryer: 80000
Capacity (lbs): 70
Food Type: Breaded
Frypot Style: Tube Type
Gas Type: LP
Heat: Gas
NEMA: 5-15P
Number of Fry Pots: 1
Oil Capacity (lb): 70
Oil Capacity/Fryer (lb): 70
Product: Gas Fryers
Product Type: Cooking Equipment
Rating: Best
Series: PowerFry3®
Special Features: Casters Included - Uninstalled
Type: Floor Model
Warranty: 1-year Limited Parts & Labor; 10-year Fry Tank
Width (in): 21
Weight: 237.00
